Pioneer ctj 320 wr service manual

Page 1

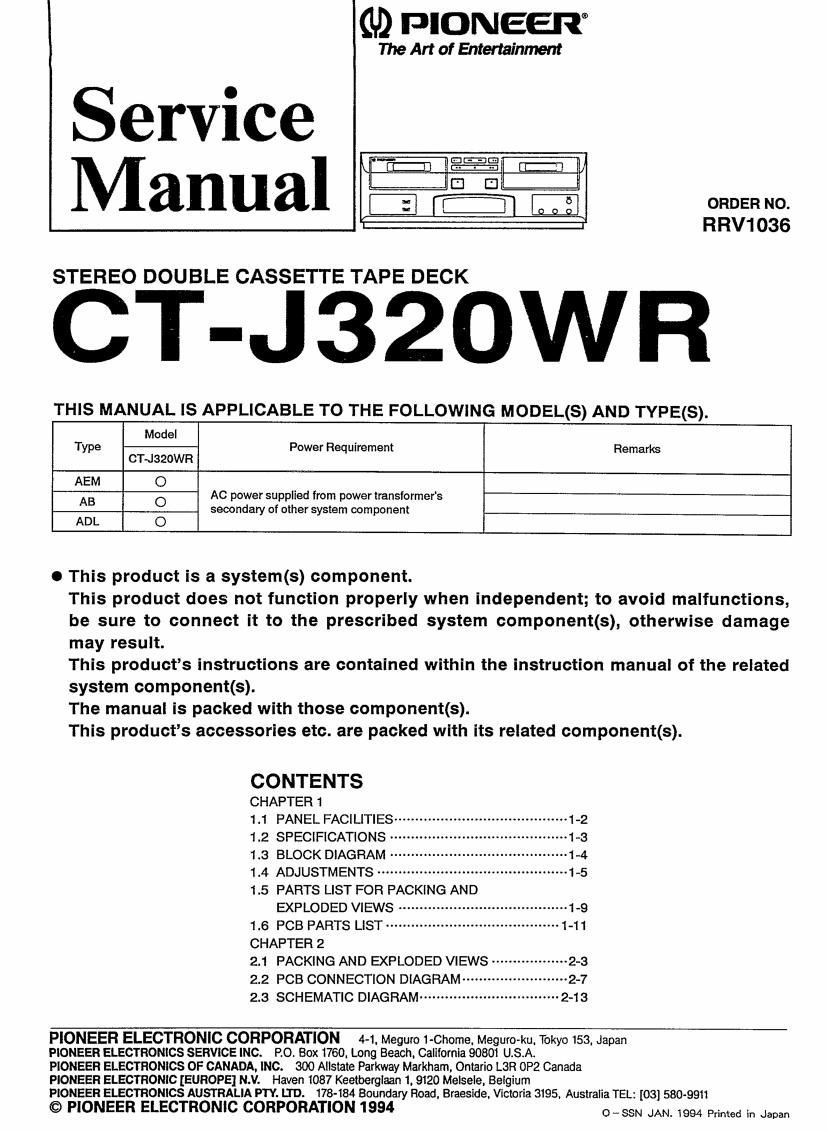

(ID PIONEER

The Art of Entertainment

l- DEB

Service _
Manual 2%

R RV1 036

STEREO DOUBLE CASSETTE TAPE DECK

CT-J320WR

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model
Type Power Requirement Remarks
CTdszOWR
AEM 0
AC power supplied from power transformers
AB 0
secondary of other system component
ADL O

o This product is a system(s) component.
This product does not function properly when independent; to avoid malfunctions,
be sure to connect it to the prescribed system component(s), otherwise damage
may result.
This products instructions are contained within the instruction manual of the related
system component(s).
The manual is packed with those component(s).
This products accessories etc. are packed with its related component(s).

CONTENTS

CHAPTER 1

1'1 PANEL FACILITIES ......................................... 1.2
1.2 SPECIFICATIONS ~ ..
1.3 BLOCK DIAGRAM ' --
1.4 ADJUSTMENTS ............................................. 1-5

1.5 PARTs LIST FOR PACKING AND

EXPLODED VIEWS -- --1-9
1.6 PCB PARTS LIST ......................................... 1.11
CHAPTER 2
2.1 PACKING AND EXPLODED VIEWS ------------------ 2-3
2.2 PCB CONNECTION DIAGRAM ------------------------- 2-7
2.3 SCHEMATIC DIAGRAM ................................. 2-13

PIONEER ELECTRONIC CORPORATION 4-1, Meguro I-Chome, Meguro-ku. Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. PO. Box 1760. Long Beach. California 90601 U.S.A.

PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham, Ontario LSR 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Meisele, Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195. Australia TEL: [03] 580-9911
© PIONEER ELECTRONIC CORPORATION 1994

O-SSN JAN. 1994 Printed in Japan

Page 2

CT-J320WR

CHAPTER 1

1.1

PANEL FACILITIES

®

CZ)

Deck l/ll selector button/indicator
Use to select the deck to use (i or (1). The indicator lights to

show the deck which has been selected.

Deck l/II operation buttons

> (play): For playing back a tape in the forward mode.

4 (play): For playing back a tape in the reverse mode.

I (stop): For stopping the tape.

» (fast): Fast forward in forward mode, rewind in
reverse mode. Music search (MS) starts if this
is pressed during playback.

« (fast): Rewind in forward mode, fast forward in

reverse mode. Music search (MS) starts if this
is pressed during playback.

® REV (reverse) MODE switch

(3 (RELAV):

Use this to select tape travel direction during play and record.

_: One-sided play and record.

2: This enables auto reverse recording and auto

reverse play. If you startwith the tape running
in reverse, only reverse play and recording are
possible.

This enables auto reverse recording and auto
repeat playback.

The tape does not reverse if recording starts
from the (4) direction.

Select this position for DECKI and ll relay play.

(5.)

@

DOLBY" NR switch

Set this switch to B or C for recordng with the built-in Dolby
Noise Reduction system and for playback of tapes which have
been recorded using the Dolby Noise Reduction system. For
other tapes, set the DOLBY NR switch to OFF.

NOTE:

When playing back DOLBY NR-encoded tapes, always set this
switch to the same position iB-type or C-typel used for
recording.

Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.

DOLBY" and the double-D symbol Di] are trademarks of Dolby
Laboratories Licensing Corporation.

Deck 1 EJECT 2 button
Press to open the cassette door.

NOTE:
This button functions only when the power is turned on.
