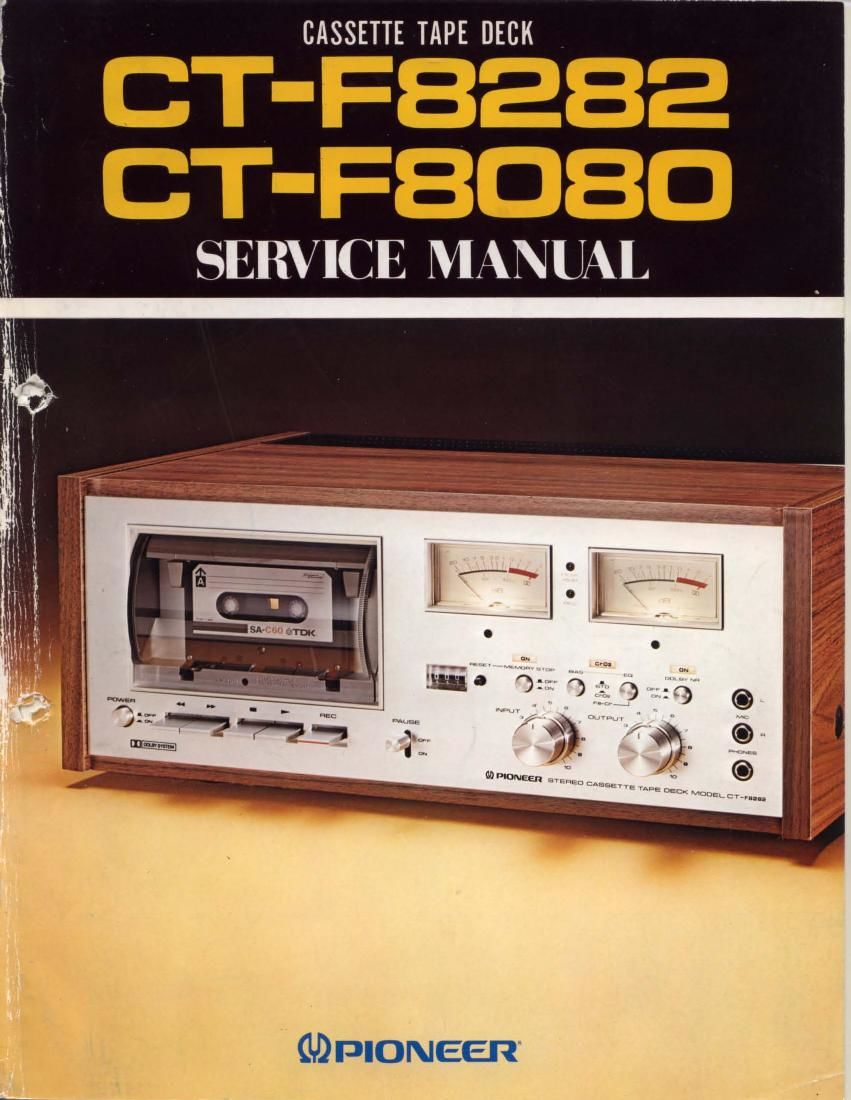

Pioneer ctf 8282 service manual
This is the 92 pages manual for pioneer ctf 8282 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer ctf 8282 service manual (Ocr-read)
Page 2
91:593.?
MODEL CT-F8282 COMES IN TWO VERSIONS DISTINGUISHED AS FOLLOWS:
TYPO VOIBQO Remarks
KCU 120V only CSA (Canada) and UL (USA) approved
D 120V, 220V, 240V (Switchable) General export model
MODEL CT-F8080 COMES IN TWO VERSIONS DISTINGUISHED AS FOLLOWS:
Type Voltage Remarks
D 120V, 220V, 240V (Switchable) General export model
HG 220V, 240V (Switchable) SEMKO (Sweden), NEMKO (Norway),
DEMKO (Denmark) and El (Finland)
approved
This service manual is applicable to the CT-F8282/KCU MODEL
CONTENTS
SPECIFICATIONS .....................................................
FRONT PANEL FACILITIES ............................................
CONNECTION DIAGRAM ..............................................
LEVEL DIAGRAMS ...................................................
OUTLINE OF OPERATION
5.1 Block Diagram (Control Section) ......................................
5.2 Outline of Operation ...............................................
CIRCUIT DESCRIPTIONS
6.1 Circuit Diagram ...................................................
6.2 Voltage Readings ..................................................
6.3 A Description of the Circuits for Each Block .............................
6.4 Explanation of Other Than Block Circuits ...............................
BLOCK DIAGRAM ....................................................
DISASSEMBLY .......................................................
PARTS LOCATIONS
9.1 Front View .......................................................
9.2 Front View with Panel Removed ......................................
9.3 Top View ........................................................
9.4 Rear View .......................................................
5
6
9
10
11
12
13
14
16
17
19
21
23
25
27
