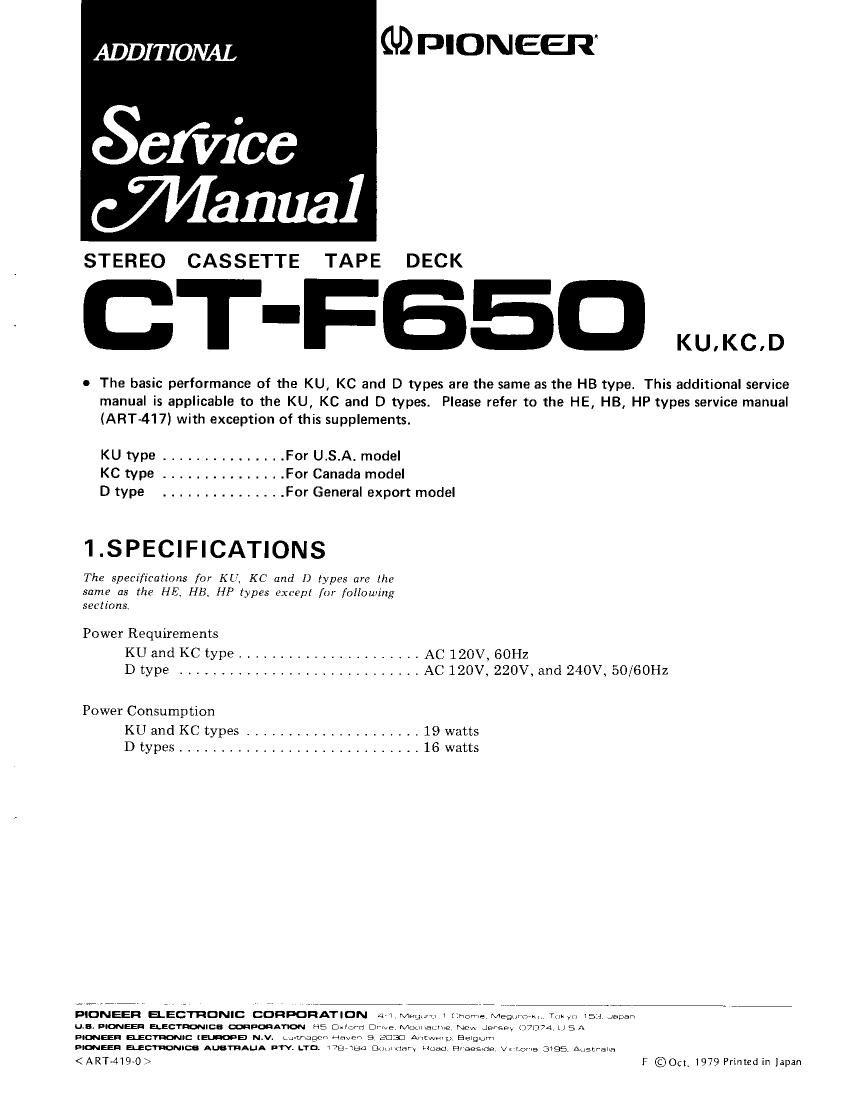

ADDmONAL MDIONEER
STEREO CASSETTE TAPE DECK
T-FESO
o The basic performance of the KU, KC and D types are the same as the HB type. This additional service
manual is applicable to the KU, KC and D types. Please refer to the HE, HB, HP types service manual
(ART-417) with exception of this supplements.
KU type ............... For U.S.A. model
KC type ............... For Canada model
D type ............... For General export model
1.SPECIFICATIONS
The specificalimm [or KU. KC and I) types are [ho
same as the HE, HB, HP types except fur following
sections.
Power Requirements
KU and KC type ...................... AC 120V, 60Hz
D type ............................. AC 120V, 220V, and 240V, 50/60Hz
Power Consumption
KU and KC types ..................... 19 watts
D types ............................. 16 watts
