Pioneer ctf 615 owners manual
This is the 12 pages manual for pioneer ctf 615 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer ctf 615 owners manual (Ocr-read)

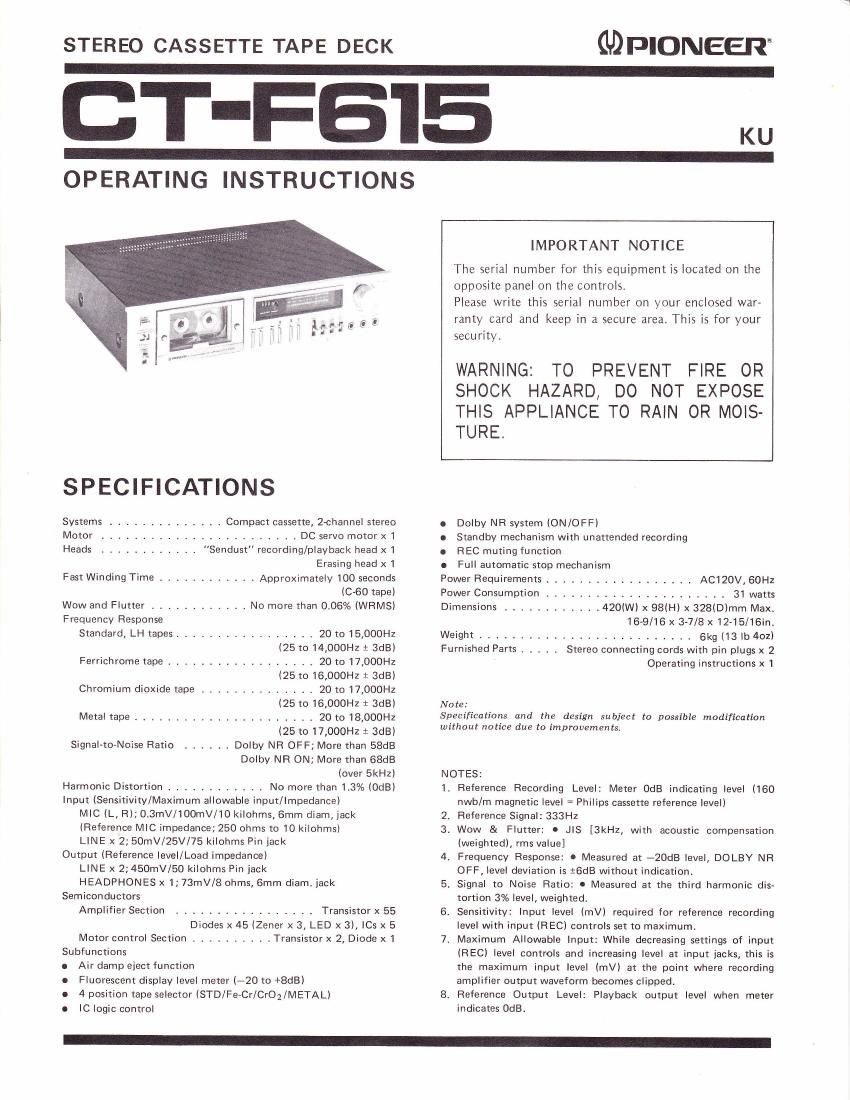

Page 1
SAFETY INSTRUCTIONS READ INSTRUCTIONS - All the operating in- structions should be read before the appliance is operated. RETAIN INSTRUCTIONS - The operating in- structions should be retained for future reference. HEED WARNING - All warnings on the appliance and in the operating instructions should be adher- ed to. FOLLOW INSTRUCTIONS - All operating and use instructions should be followed. WATER AND MOISTURE - The appliance should not be used near water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc. LOCATION - The appliance should be installed in a stable location. WALL OR CEILING MOUNTING - The appliance should not be mounted to a wall or ceiling. VENTILATION - The appliance should be situat- ed so that its location or position does not inter- fere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventila- tion openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings. HEAT - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplif iers) that produce heat. POWER SOURCES - The appliance should be connected to a power supply only of the type de- scribed in the operating instructions or as marked on the appliance. POWER-CORD PROTECTION Power-supply cords should be routed to that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance. CLEANING - The appliance should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, benzine, insectici- des or other volatile liquids since they may cor- rode the cabinet. NONUSE PERIODS - The power cord of the ap- pliance should be unplugged from the outlet when left unused for a long period of time. OBJECT AND LIOUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings. DAMAGE REOUIRING SERVICE - The appli- ance should be serviced by Pioneer authorized service center or qualified service personnel when: o The power-supply cord or the plug has been damaged; or o Objects have fallen, or liquid has been spilled into the appliance; or r The appliance has been exposed to rain; or r The appliance does not appear to operate nor- mally or exhibits a marked change in perform- ance; or r The appliance has been dropped, or the en- closure damaged. SERVICING - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be contact nearest Pioneer authorized service center.
Page 2
PIONEER OPERATING THE CT-F61 5 When hooked up to your stereo components (amplifier, tuner, turntable, etc.), you can re- cord and play back FM or AM broadcasts, re- cords and other program sources in stereo on this deck. In addition, you can make your own stereo recordings using an electret or dynamic microphone. The deck is provided with a headphones (PHONES) jack, and this allows you to monitor the recording or tape play with stereo head- phones. The tape selector buttons permit full justice to be given to the characteristics of metal tapes, chrome tapes, ferrichrome tapes and standard tapes. They can also be used for recording and playback with the bare minimum of distortion. The Dolbyx noise reduction system serves to cut out a great deal of that irritating tape hiss in the high-frequency range without sacrificing the sound qualit5r of the program source (it yields a 10dB improvement in the high frequency sound range). This system expands the dynamic range and makes it possible to record and play back sources with a high signal-to-noise ratio. The deck comes with an unattended recording function which can be used along with the timer for unattended recording and wake-up to the sound of a tape being played back instead of the usual alarm clock- CONNECTIONS Connect the tape deck's terminals (OUTPUT- INPUT) to the tape terminals on the stereo ampli- fier (or receiver) with the accessory cords. The top terminal is for the left channel and the bottom for the right channel. Connections for playback: connect the TAPE PLAY input terminals on the stereo amplifier to the tape deck's OUTPUT (PLAY) terminals. Connections for recording: connect the stereo amplifier's TAPE REC output terminals to the tape deck's INPUT (REC) terminals. AC120V 60Hz AC outlet Serialnumberplate INSTALLATION P RECAUTIONS To ensure the best sound quality and trouble-free operation, avoid setting up the tape deck in any of the locations described below. Stereo amplifier (or receiver) -TAP€_I *.- oo, ] hq@J tr@@s _LINE ..-...- r ,-*,- .,,,",,-) | "=' r"' I I z'a z-a - )ie)ltgE Wdt@+ 2. Location liable to downgrade performance and result in breakdowns Locations exposed to direct sunlight, or near heaters or dther heat sources. Locations with poo:" ventilation, with high humidity or mois- ture contents, or dusty locations. Locations susceptible to vibration. Locations where there are thinners, benzine and other types of volatile liquids, insect sprays or any kind of inf lammable objects at hand. Resulting trouble 1. External heat causes the performance of the circuit parts to deteriorate, and operation becomes unstable. 2. Cause of faulty contact in input/output terminals, and rust. High humidity and a high moisture content cause deterioration in insulation. There is also the danger of current leakage and heat generation in the circuit parts. Dust or grease in the rotat- ing parts causes the parts to deteriorate. 3. These locations affect the precision parts adversely. 4. These help to corrode the front panel. ln particular,the heads are precision-f inished to micron dimensions. Chemicals may reduce their performance, so exercise all due care. 2 4. *Manufactured under license from Dolby Laboratories. x Dolby and D0 are trademarks of Dolby Laboratories.
