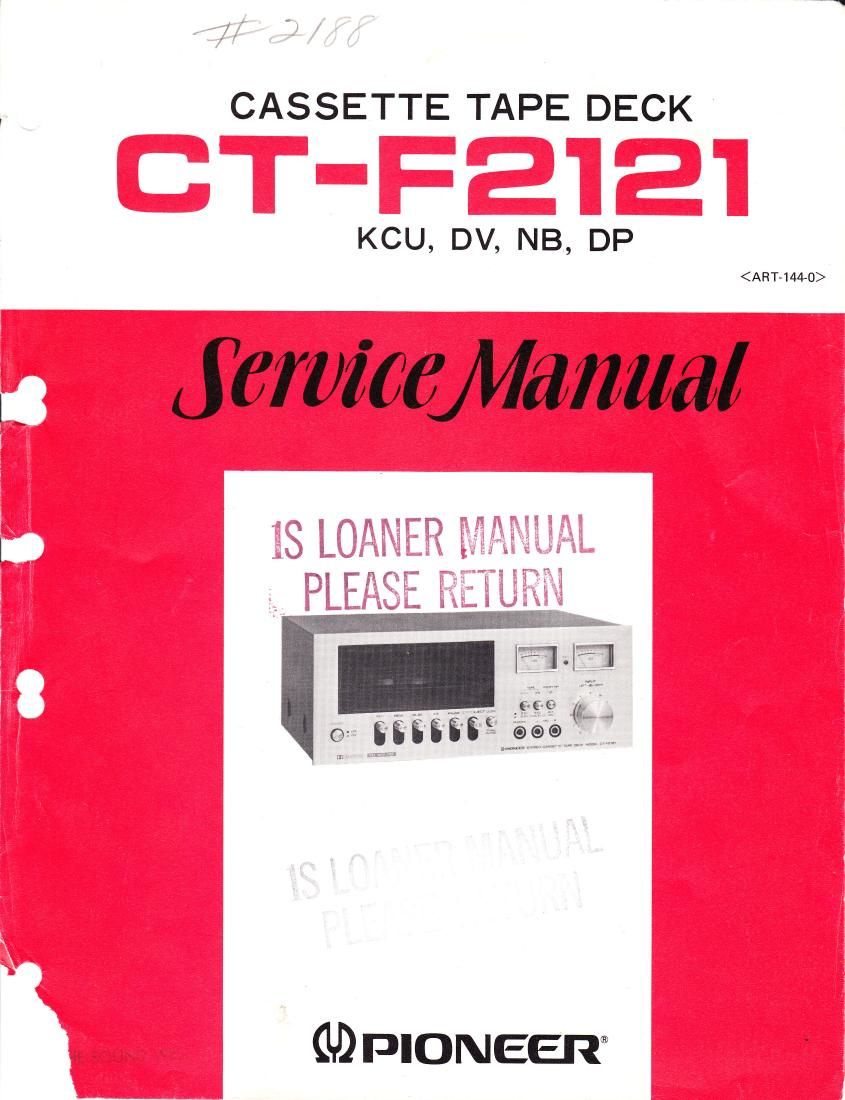

Pioneer ctf 2121 service manual
This is the 59 pages manual for pioneer ctf 2121 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer ctf 2121 service manual (Ocr-read)
Page 2
999905,?
GT-FEI 21
CONTENTS
SPECIFICATIONS .................................. V .................. 3
FRONT PANEL FACILITIES ........................................... 4
CONNECTION DIAGRAM .............................................. 6
BLOCK DIAGRAM ........................................... . ....... 7
LEVEL DIAGRAM ................................................... 9
CIRCUIT DESCRIPTIONS
6.1 Recording and Playback Circuit ....................................... 10
' 6.2 Auto Stop Circuit ..................... ' ............................. 12
6.3 Power Supply Circuit .............................................. 13
6.4 Muting Circuit .................................................... 13
DISASSEMBLY
Part 1 ................................................................ 14
Part 2 ................................................................ 15
Part 3 ................................................................ 16
PARTS LOCATIONS
8.1 Front View ....................................................... 17
8.2 Front View with Panel Removed ...................................... 18
8.3 Top View ........................................................ 19
8.4 Rear Panel View (NB, KCU model) ..................................... 20
8.5 Rear Panel View (DV, DP model) ...................................... 21
8.6 Bottom View ...................................................... 22
MECHANICAL ADJUSTMENTS
9.1 Pinch Roller Pressure ................................................ 23
9.2 Tape Speed ...................................................... 23
9.3 Reel Hab Torque .................................................. 24
9.4 Muting Switch .................................................... 25
9.5 Solenoid Operation ................................................ 25
9.6 Play Switch ...................................................... 26
9.7 Rec Actuating Lever ................................................ 26
ELECTRICAL ADJUSTMENTS
10.1 Head Azimuth .................................................... 27
10.2 Playback Equalizer ................................................. 27
' 10.3 Playback ,Level .................................................... 27
10.4 Level Meter Calibration .............................................. 27
10.5 Recording Current .................................................. 27
