Pioneer ct 979 service manual

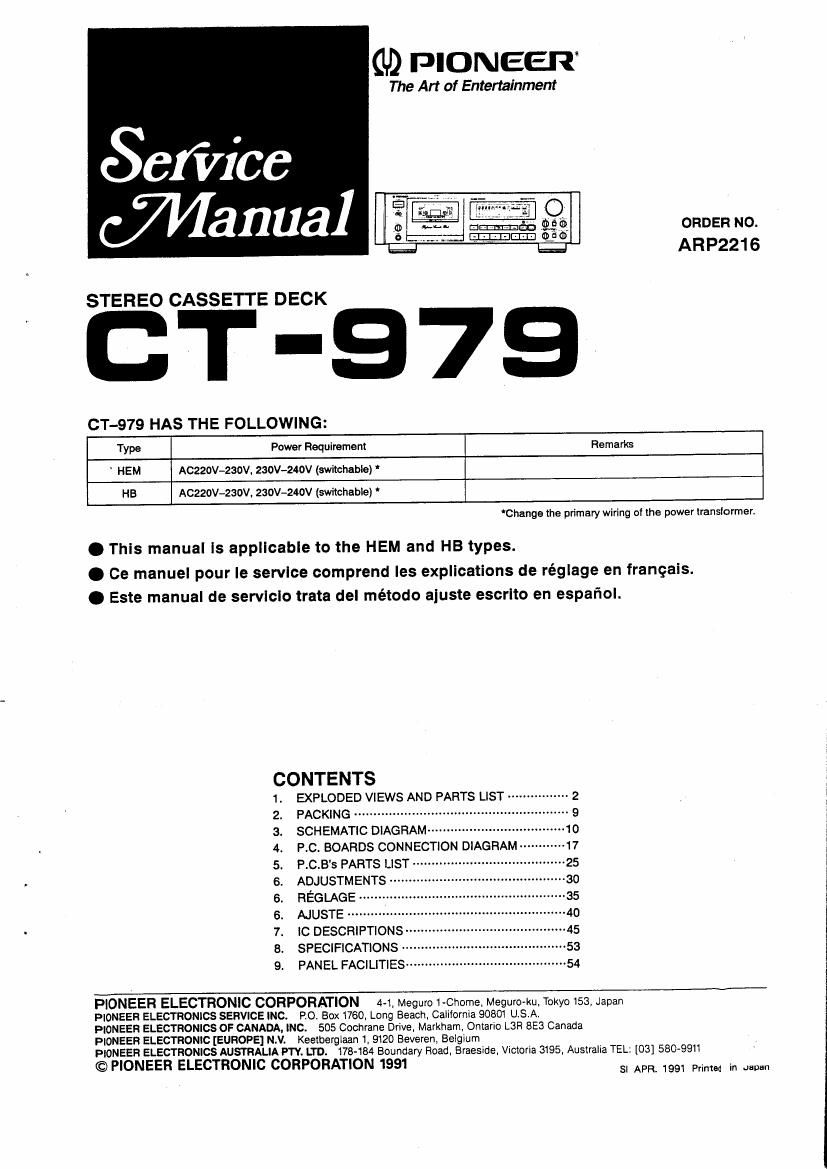

Page 1

(U) PIONEER

The Art of Entertainment

EI- $.72: ORDER NO.
""'" ' T ARP221 6

09 NM

STEREO CASSETTE DECK

CT-S7

CT-979 HAS THE FOLLOWING:

Type Paws! Requirement Remarks
' HEM ACZZOV-ZSOV, 230V-240V (switchable) '
HB A0220V-230V. 230V-240V (switchable)

*Change the primary wiring of the power IransIormer.

O This manual Is appllcable to the HEM and HB types.
0 Ce manuel pour Ie servlce comprend les explications de réglage en frangais.
O Este manual de servlclo trata del método aiuste escrIto en espafiol.

CONTENTS
. EXPLODED VIEWS AND PARTS LIST ..
PACKING .................... I g
SCHEMATIC DIAGRAMA
P.c. BOARDS CONNECTION DIAGRAM .-
P.C.Bs PARTS LIST -----
ADJUSTMENTS --
REGLAGE
AJUSTE
Ic DESCRIPTIONS-m
SPECIFICATIONS ~
PANEL FACILITIES-m

_

509°?99PPP9N

PIONEER ELECTRONIC CORPORATION 4-1. Meguro IvChome. Meguvo»ku. Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. R0. Box 1760, Long Beach. California 90801 USA.

PIONEER ELECTRONICS OF CANADA, INC. 505 Cochrane Drive, Markham, Ontario L3R 8E3 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Keererglaan 1, 9120 Beveren, Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. IID. 173-184 Boundary Road, Braeside Victoria 3195, AusIraIIa TEL: {03] 5809911

© PIONEER ELECTRONIC CORPORATION 1991 SI m. 1991 mm in man

Page 2

CT-979

1. EXPLODED VIEWS AND PARTS LIST

NOTES:

0 Parts without part number cannot be supplied.
0 The A; mark found on some component parts indicates the importance of the safety factor of the pan. Therefore, when replacing, be sure

to use parts of identical designation.

- Parts marked by (D " are not always kept In stock Their delivery time may be longer than usual or they may be unavailable

1.1 PARTS LIST OF EXTERIOR

Mark No. Description Part No. Mark No. Descriptlon Part No.
l Cord stopper CM - 22B 46 Screw lBZ40P080FCC
A 2 AC power cord ADG1036 47 Jack nut RBN~006
(For HEM type) 48 Binder REC - 371
A AC power cord PDGlOBB 49 Cassette plate assembly RXX1064
(For KB type) 50 Bonnet RXX1279
A). 3 FU703, FU704 Fuse (T2A)REK - 103
A 4 Power transformer (T1) RTT1158 51 FYont panel assembly RXXISBZ
5 LED (D3) SLF-401C 52 Door lens RLP1026
53 Screw BBTBOPOBOFCU
6 Absorber plate (B) PNBllOQ 54 Screw BBZSOPOBOFZK
7 Washer RBF1019 55 Screw FMASOPOGOFCU
8 Button spring RBI-11144
9 Door spring (L) RBI-11222 56 Screw (FE) RBA1088
10 Door spring (R) RBI-11223 57 Door cushion REB1117
58 Screw (FE) RBA1089
ll Cassette plate spring REL - 059 59 Nylon rivet REM - 003
12 Stabilizer (B) REB1038 60 Door assembly RXX1416
A 13 FU701. FU702 REK - 098
Audio fuse (T630mA) 101 Main unit
14 Screw BBZSOPIOOFCC 102 Headphone unit
15 Cord clamper 103 Power switch unit
104 Operation unit
16 Washer ABE1009 105 Control unit
17 Leg assembly AMR1159
18 VR ring RAT1007 106 Timer switch unit
19 Screw BBZSOPOGOFCC 107 Input VR unit
20 Screw BBZZGFIOOFMC 108 Pin jack unit
109 Rubber spacer (A)
21 Counter reset knob RAA1009 110 Wire
22 Power button RAC1410
23 Function knob RAC1411 111 Transformer sheet
24 Slide SW knob RAC1562 112 Mechanism sheet
25 Push knob RAC1413 113 Mechanism sheet (2)
114 VR shaft
26 Knob (B) RAC1414 115 Main chassis
27 Mode knob RACISOQ
28 FL filter RAH1542 116 Center stay
29 Side rubber 121381094 117 P.C.B base
80 Door sheet REB1119 118 Binder
119 VR holder
31 Knob (ABS) RAC1608 120 F1. shield plate
32 BIAS lens RNK1674 "
33 Line straight lens RNK1682 121 Joint
34 Door RNK1495 122 VR shaft guide
35 VR knob assembly (A) RXA1281 123 P.C.B stad
124 Panel stay RNTIlOB
36 Door panel 125 Name plate
37 FL lens RLP1027
38 Rear panel 126 Cassette plate
39 Screw ABZZGPOBOFZK 127 Front panel
40 Screw BBTSOPOBOFCC 128 Mechanism unit
129 Motor bracket (FE)
41 Screw BBTSOPIOOFZK 130 Protector 300 X 10 RED1020
42 Screw BBZSOPIOOFZK
43 Screw (FE) RBA1090 131 Cushion
44 Screw IBZSOPOSOFCC 132 Acetate tape 10 X 10
45 Screw IBZSOPIOOFCC 133 PS holder
134 Acetate tape (K)
135 Motor VR unit
a 136 HX SW unit
