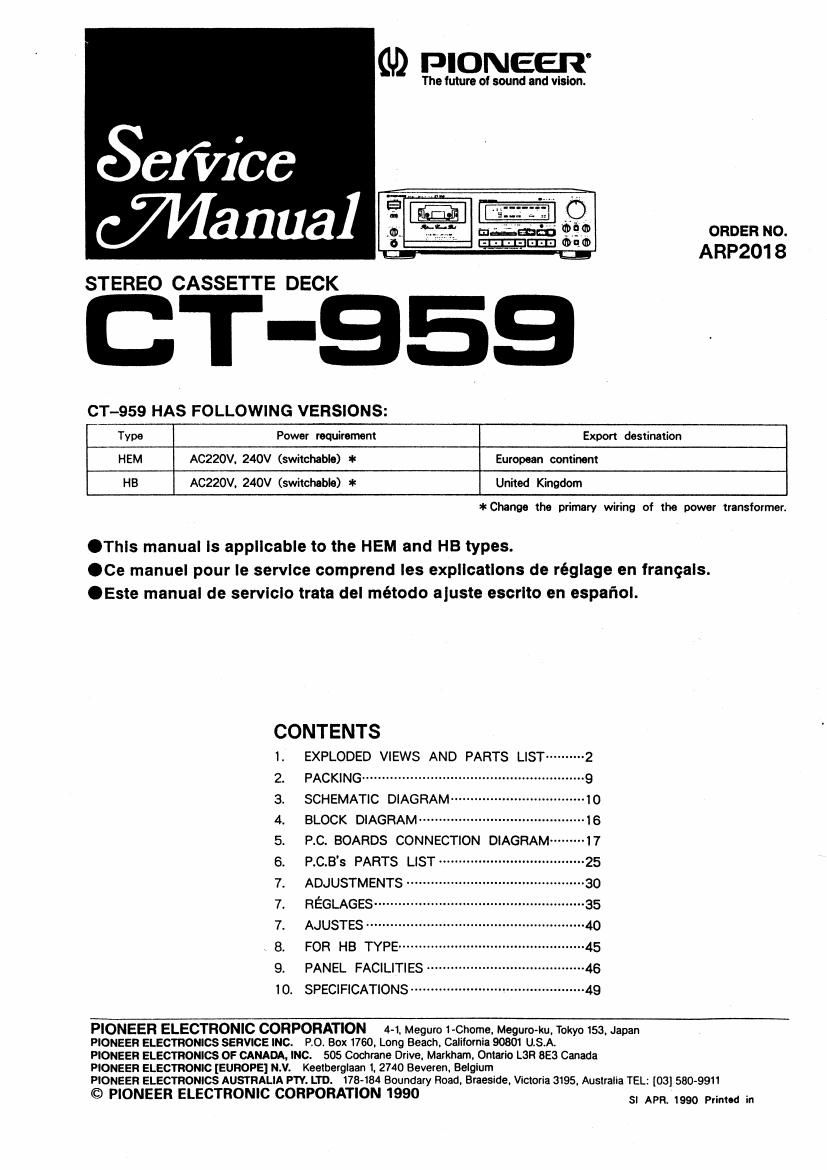

Pioneer ct 959 service manual

Page 1

GI) PIONEER

The Iuture of sound and vision.

Scfiicc

ORDER NO.
ARP2018

STEREO CASSETTE DECK

CT-959 HAS FOLLOWING VERSIONS:

Type Power requirement Export destination
HEM AC220V. 240V (switchable) it European continent
H8 AC220V. 240V (switchable) * United Kingdom

*Change the primary wiring of the power transformer.

.Thls manual ls applicable to the HEM and HB types.
OCe manuel pour Ie service comprend Ies expllcatlons de réglage en franqals.
OEste manual de serviclo trata del método aluste escrlto en espafiol.

CONTENTS

EXPLODED VIEWS AND PARTS LIST-"-
PACKING ..............................
SCHEMATIC DIAGRAM -------
BLOCK DIAGRAM ...................................
P.C. BOARDS CONNECTION DIAGRAM--
P.C.B's PARTS LIST-"-
ADJUSTMENTS "
REGLAGES ..........
A JUSTES ............
FOR HB TYPEN"
PANEL FACILITIES ........................................ 45
0' SPECIFICATIONS ............................................ 4g

SDSDHNNSJQPPNT

PIONEER ELECTRONIC CORPORATION 4-1. Meguro 1-Chome. Meguro-ku. Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. PO. Box 1760. Long Beach, Calilomia 90801 USA

PIONEER ELECTRONICS OF CANADA. INC. 505 Coohrane Drive. Markham, Ontario L3H 8E3 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Keelberglaan 1, 2740 Beveren, Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road. Braeside. VicIoIia 3195, Ausiralia TEL: [03] 580-9911

© PIONEER ELECTRONIC CORPORATION 1990 S, m. 1990 PM a"

Page 2

1. EXPLODED VIEWS AND PARTS LIST

NOTES :

- Parts without. part number cannot be supplied.
- The A3 mark found on some component parts indicates the impotance of the safety factor of the part. Therefore, when

replacing, be sure to use parts of identical designation.
- Parts marked by "G" are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable.

1.1 Parts List of Exterior

Mark & Part No. Description Mark _N& Part No. Description
A 1 (EM-228 Strain relife 46 |BZ40P080FCC Screw
A 2 ADGlOSS AC power cord 47 RBN-006 Jack nut
42: 3 REK-OQB FU701. FU702 Fuse 48 REC-371 Binder
(GSOMA) 49 RXX1064 Cassette plate assembly
A; 4 RTT1132 Power transformer (T1) 50 RXX1279 Bonnet
5 SLF-401C LED (D3)
51 RXX1281 Front panel assembly
6 PNB1109 Absorber plate (B) 52 RLP1026 Door lens
7 RBF1019 Washer 53 BBT30P08OFCU Screw
8 RBH1144 Button spring 54 BBZ30P080FZK Screw
9 RBH1222 Door spring (L) 55 PMA3OP060FCU Screw
10 RBH1223 Door spring (R)
56 lBZSOPl 50FCC Screw
11 REL-059 Cassette plate spring 57 REB1117 Door cushion
12 REB1038 Stabilizer (B) 58 BPZ40P1OOFZK Screw
A 13 REK-103 FU703, FU704 Fuse (2A) 59 WA3OW120R100 Washer
14 ......
15 RNH-184 Cord clamper 101 Main unit
102 Headphone unit
16 ABE1009 Washer 103 Power switch unit
17 VXA1257 Insulator assembly 104 Operation unit
18 FBT40P080FZK Screw 105 Control unit
19 ......
20 ----- 106 Timer unit
107 lNPUT VR unit
21 RAA1009 Counter reset knob 108 Pin jack unit
22 RAC141O Power button 109 Rubber spacer (A)
23 RAC1411 Function knob 110 Rubber spacer
24 RAC1412 Slide SW knob
25 RA01413 Push knob 111 Transformer sheet
112 Mechanism sheet
26 RAC1414 Knob (B) 113 Mechanism sheet (2)
27 RAC1415 Mode knob 114 VR shaft
28 RAH1542 filter 115 Main chassis
29 REB1094 Side rubber
30 REB1119 Door sheet 116 Center stay
117 P.C.B base
31 ------ 118 Binder
32 ~~~~~ 119 VR holder
33 RNK1366 Line straight lens 120 FL shield plate
34 RNK1495 Door
35 RXA1281 VR knob assembly (A) 121 Joint
122 VR shaft guide
36 RAH1661 Door panel 123 P.C.B stad
37 RLP1027 FL lens 124 Panel stay
38 RNA1316 Rear panel 125 Name plate
39 ABZZBPOBOFZK Screw
40 BBTSOPOSOFCC Screw 126 Cassette plate
127 Front panel
41 BBTSOPlOOFZK Screw 128 Mechanism unit
42 BBZSOP100FZK Screw 129 ------
43 BBZ40P080FZK Screw 130 Protector 300x10
44 IBZBOPOGOFCC Screw
45 |BZ3OP100FCC Screw 131 Cushion
132 Acetate tape 10x10
133 PS holder
134 Acetate tape (K)
