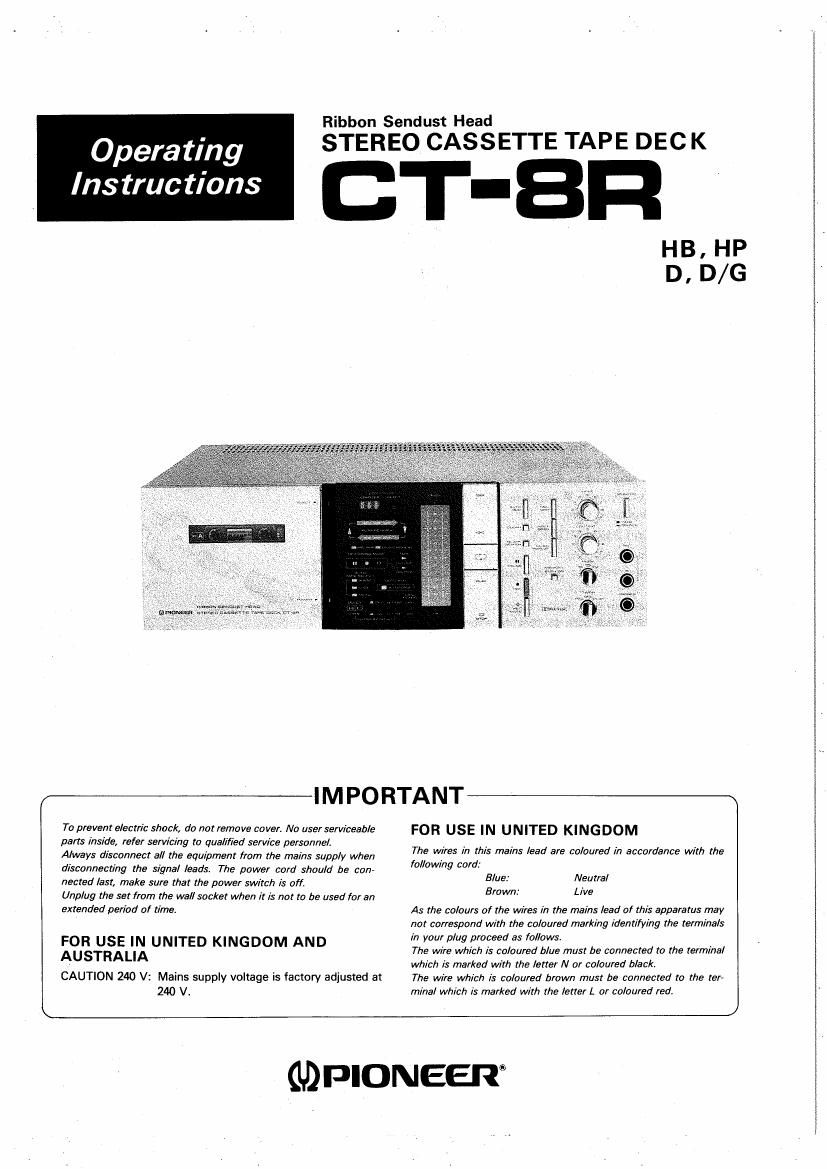

Page 1

Operating

Instructions

To prevent electric shock, do not remove cover. No user serviceable
parts inside, refer servicing to qualified service personnel.

Always disconnect all the equipment from the mains supply when
disconnecting the signal leads, The power cord should be con-
nected last, make sure that the power switch is off.

Unplug the set from the wall socket when it is not to be used for an
extended period of time

FOR USE IN UNITED KINGDOM AND

AUSTRALIA

CAUT!ON 240 V: Mains supply voltage is factory adjusted at
240 V.

IMPORTANT

Ribbon Sendust Head

STEREO CASSETTE TAPE DEC K

T-BFI '

HB, HP
D, D/G

FOR USE IN UNITED KINGDOM

The wires in this mains lead are coloured in accordance with the
following cord:
Blue:
Brown:

Neutral

Live

As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured marking identifying the terminals
in your plug proceed as follows.

The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the ter-
minal which is marked with the letter L or coloured red,

MPIONEEIT

Page 2

CT ~8R are designed to accept different line voltages, ac
cording to the country in which they are to be used, al-
though the operation of the various models is the same in
every respect. Fig. A shows the model designed to operate
at any of two ore-selected voltages (220V, 240V).

Fig. B shows the model designed to operate at any of three
selected voltages (120V, 220V, 240V).

Line voltage and fuse can be changed and set as follows:

220V and 240V MODEL

1. Disconnect the power cord.

2. Loosen the screw on the selector plug with a Phillips
screwdriver, then take out the plug.

3. Re-install the plug with its cutaway section exposing the
correct voltage indication as illustrated (Fig. A).

4. Tighten the mounting screw.

120V, 220V and 240V MODEL

1. Disconnect the power cord.
2. Use a Phillips screwdriver to take out the fuse cap and
fuse (Fig. B).

3. Pull out the selector plug from the socket.

4. Put the selector plug back so that the appropriate line
voltage marking can be seen through the cut in the edge
of the plug.

. Change the fuse in accordance with the table.

6. Replace the fuse and fuse cap.

01

IMPORTANT- LINE VOLTAGE SETTING

220V, 240V model

k

Mounting screw

120V, 220V, 240V model

Fuse

Phillips

screwdriver
(use cap

VOLTAGE

The specifications of this model differ according to the shipment destination.

0 For Australia (HP stamped on packing case): A 2-point voltage selector switch is provided on the rear

panel and power line voltage is 240V.

0 For U.K. (HB stamped on packing case): A 2-point voltage selector switch is provided on the rear panel

and power line voltage is 240V.

0 For destinations excluding above (D or 0/6 stamped on packing case): A 4-point voltage selector switch

is provided on the rear panel.
NOTE:

Plug

1 20V
220V
240V

For the sake of convenience, the illustrations and explanations are based on the CT-8R/D, D/G.

Fig.A

Table

FUSE

LEA

1A

Fig.3
