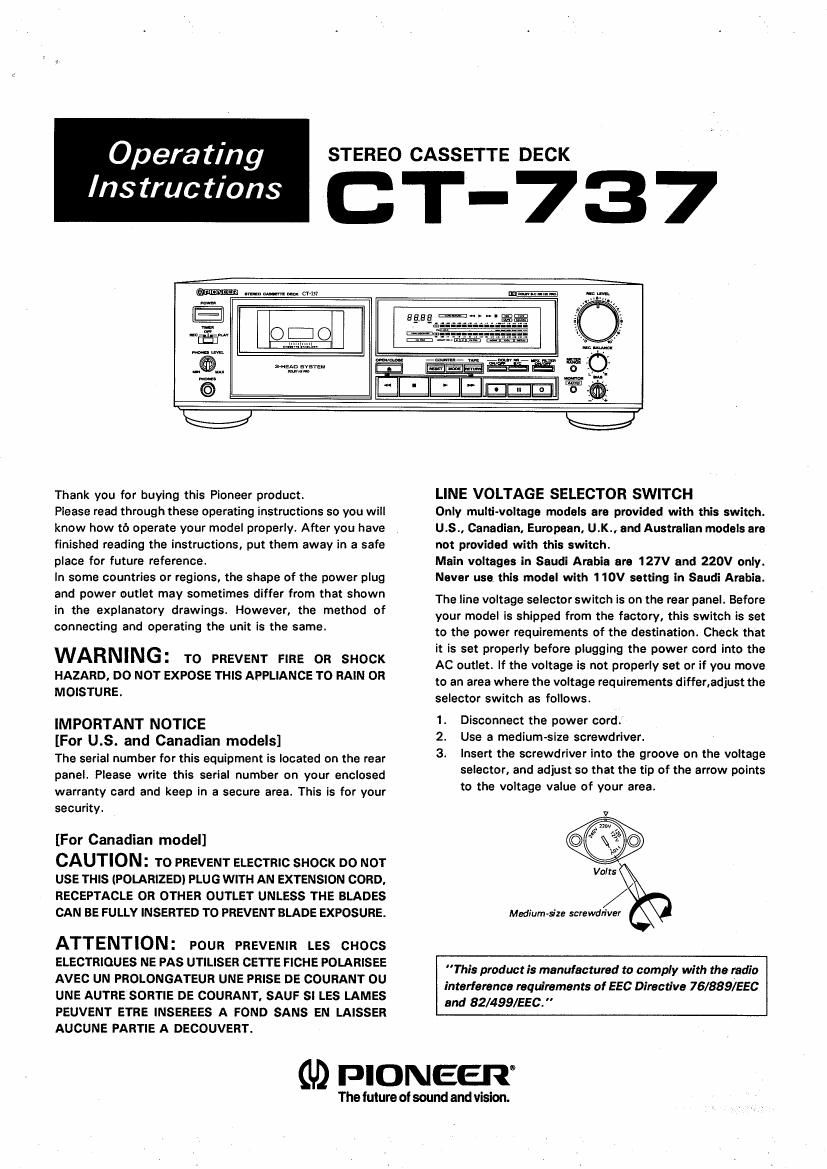

Pioneer ct 737 owners manual

Page 2

IMPORTANT 1

The lightning flash with arrowhead, within an Equi-
Iatsral triangle, is intended to alert the user'ot the
presence of uninsulated "dangerous voltage" within
the products enclosure that may be or sutticient
magnitude to constitute a risk of electric shock to
persons.

CAUTION

RlSK OF ELECTRlC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). N0
USER»SERVICEABLE PARTS INSIDEI REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.

The exclamation point within an equilateral triangle is
intended to alert the user or the presence oi important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance

IMPORTANT 2

It the apparatus is lined with AC mains power out-
let(s), see REAR PANEL FACILITIES for convenient
connection or additional Hi-Fi eornponont(s). Make
all connections to the AC outlet(s) and the signal
terminals first. Connect the plug to the wall socket
last make sure that the power switch is off.

FOR USE IN THE UNITED
KINGDOM

The wires in this mains lead are coloured in accor
dance with the following code:

Blue: Neutral

Brown: Live

As the colours or the wires in the mains lead or this
apparatus may not correspond with the coloured
marking identilying the terminals in your plug proceed
as lollows:

The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or
coloured black.

The wire which is coloured brown must be connected
to the terminal which is marked with the letter L or
coloured red.

Equipment sold in the wt. is not supplied with
a power plug.

READ INSTRUCTIONS 7 All the satetv and
operating instructions should be read betore the
appliance is operated.

RETAIN INSTRUCTIONS 7The operating instruc-
tions should be retained Ior future reference.
NEED WARNING -AII warnings on the appliance
and in the operating instructions should be

adhered to.

FOLLOW INSTRUCTIONS - All operating and use
instructions should be followed.

WATER AND MOISTURE 7 The appliance should
not be used near water - In! example, near a
bathtub. washbowl, kitchen sink, laundry tub, in a
wet basement. or near a swimming pooh etct

LOCATION - The appliance should be installed in a
stable location.

WALL OR CEILING MOUNTING 7The appliance
should not be mounted to a wall or ceiling.
VENTILATION-The appliance should be situated
so that its location or position does not interfere
with its proper ventilation For example, the ap-
pliance should not be situated on a bed. sofa, mg.
or similar surface that may block the ventilation
openings; or, placed in a built-in installation, such
as a bookcase or cabinet that may impede the

llow or air through the ventilation openings.

HEAT - The appliance should be situated away irom
heat sources such as radiators, heat registers.
stoves, or other appliances (including amplifiers)
that produce heat.

POWER SOURCES7Thc appliance should be
connected to a power supply only or the type
described in the operating instructions or as
marked on the appliance.

POWER-CORD PROTECTION - Power-supply
cords should be routed so that they are not likely
to be walked on Dr pinched by items placed upon
or against them. paying particular attention to
cords at plugs, convenience receptacles. and the
point where they exit born the appliance.

POLARIZATION 7 ll your purchased product is
Provided wl a polarized power plug. Please read
the lollowing instructions. This product is
equipped with a polarized alternating current line
plug (a plug having one blade wider than the
other). This plug will lit into the power outlet only
one Wflvt This is a safety feature, "you are unable
to insert the plug tully into the Dutlet, try reversing
the plug. If the plug should still (all to tit. contact
your electrician to replace your obsolete outlet.
Do not detect the safety purpose of the polariled
plug.

CLEANING -- The appliance should be cleaned only
with a polishing cloth or a sort dry cloth. Never
clean with lulnitule wax, benzinc, insecticides or
other volatile liquids since they may corrode the
cabinet.

POWER LINES 7 An outdoor antenna should be

located away trom power lines.

NONUSE PERIODS-The power cord at the
appliance should be unplugged lrom the outlet
when left unused tor a long period or time.

OBJECT AND LIQUID ENTRV7Care should be
taken so that obiecls do not fall and liquids are
not spilled into the enclosure through openings.

DAMAGE REQUIRING SERVICE 7 The appliance
should be serviced by a Pioneer authorized ser-
vice center or qualified service personnel when:

I The power-supply cord or the plug has been
damaged; or

I Objects have tallen, or liquid has been sprlled into
the appliance; or

o The appliance has been exposed to rain; or

o The appliance does not appear to operate nOr-
mally or exhibits a marked change in perfor»
mance; or

I The appliance has been dropped; or the enclosure
damaged.

SERVICING 7 The user should not attempt to
service the appliance beyond that described in the
operating instructions. For all other servicing,
Contact the nearest Pioneer authorized service
center.

sEvacE
ENrRANCE
CONDUCTORS'

is

SAFETY INSTRUCTIONS

OUTDOOR ANTENNA GROUNDING - If an out-

side antenna is connected to the antenna termi-
nal, be sure the antenna System is grounded so as
to provide some protection against voltage surges
and built up static charges.
In the U.S.A. section 810 oi the National Elccs
trical Code. ANSI/NFPA No. 70-1954, provides
information with respect to proper grounding ot
the mast and supporting structure, grounding oI
the lead-in Wire to an antenna discharge unit, size
or grounding conductors, location oi antenna-
discharge unity connection to grounding elec-
trodes] and requirements for the grounding elec-
trode. See Fig. A.

a) Use No.10 AWG (5.3 mm2 cop»
per. No. 8 AWG (5.4 mm ) alus
minum, No. 17 AWG (1 to mmz)
copperclad steel. bronze wire, or
larger as ground wire.

b) Secure antenna lead-in and
ground wires to house with
stand-o sulators spaced from
4 reel (1.22 meters) to a reet
(L83 meters) apart

c) Mount antenna discharge unit as

closely as possible to where lead-

In enters house.

Use jumper wire not smaller than

S'tANDOFF d)

NSUWJRS" No.6 AWG (13.3 mmz) copper,
or the equivalent, when a sepa-
rate antenna-grounding electrode
is used.

AMEN, See NEC Section ale-21 (r).

LEAD-IN WIRE

TD EXTERNAL ANTENNA

TERMINALS 0F PRODUCT

ANTENNA

SERVICE ENTRANCE DISCHARGE UNIT c
EuUlPMENr GROUND
WIRE a.b

POWER SERVICE
GRUUNDING ELECTRODE svsTEM
(cg. inrorror mml water pipe)

GROUNDING ELEchopE
DRIVEN a EEET (244 m)

BONDING 3* who THE EARTH
JUMPER d ., IF REQUIRED Dr
FIGA n LOCAL CODES SEE

" NEC SECTION

310-21-(0.

2
