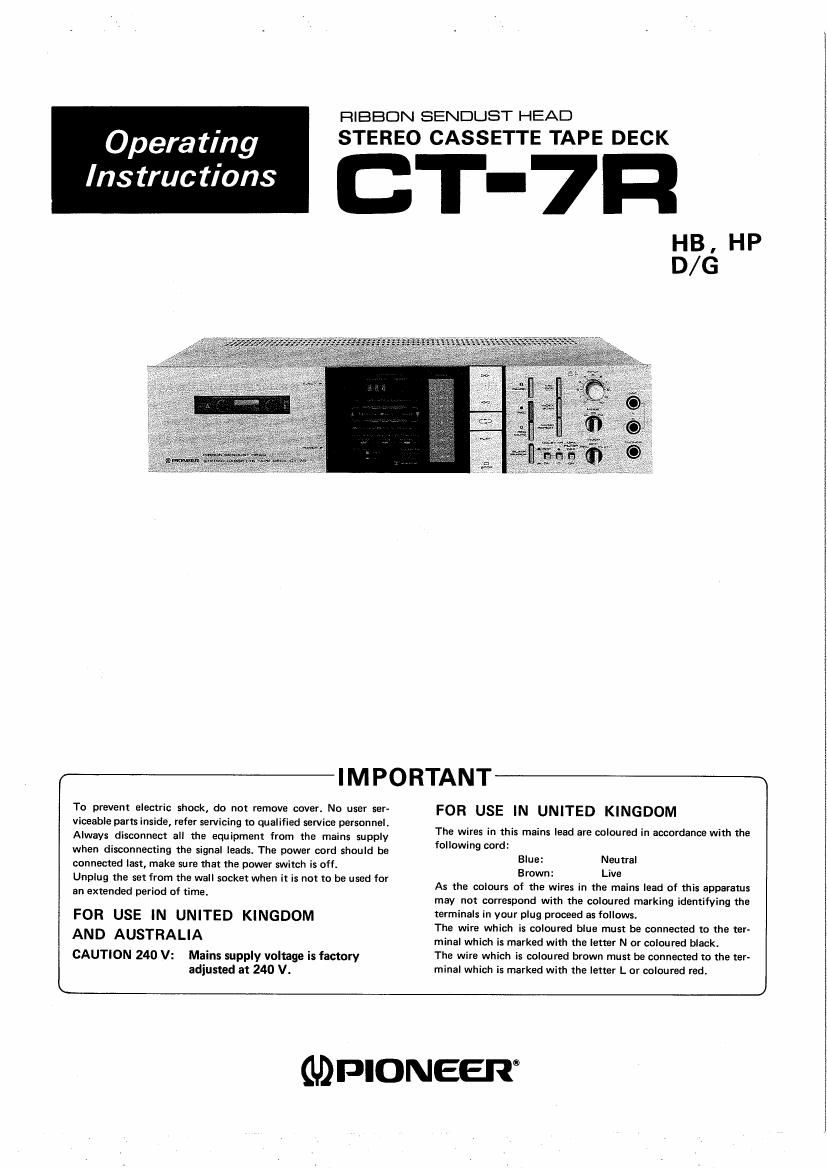

Pioneer ct 7 r owners manual

Page 1

Opera ting

Instructions

RIBBON SENDUST HEAD
STEREO CASSETTE TAPE DECK

T-7R

HB. HP
D/G

To prevent electric shock, do not remove cover. No user ser
viceable parts inside, refer servicing to qualified service personnel.
Always disconnect all the equipment from the mains supply
when disconnecting the signal leads. The power cord should be
connected last, make sure that the power switch is off.

Unplug the set from the wall socket when it is not to be used for
an extended period of time.

FOR USE IN UNITED KINGDOM
AND AUSTRALIA

CAUTION 240 V: Mains supply voltage is factory
adjusted at 240 V.

IMPORTANT

FOR USE IN UNITED KINGDOM

The wires in this mains lead are coloured in accordance with the
following cord:

Blue: Neutral

Brown: Live
As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured marking identifying the
terminals in your plug proceed as follows.
The wire which is coloured blue must be connected to the ter-
minal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the ter-
minal which is marked with the letter L or coloured red.

GDPIONEER"

Page 2

LINE-VOLTAGE VARIATIONS

These instructions apply to two models, one with a 2-position line voltage selector and
the other with a 3-position selector plug.
Before connecting the power cord to the AC outlet, check the power line voltage which is
used in your area and check that the marking on the line voltage selector plug, located on
the rear panel of the unit, tallies with this voltage. If it differs, change the position of
the selector by following the procedure below.

220V and 240V models (Fig. A)

1.
2.

3.

Disconnect the power cord.

Use a Phillips screwdriver to loosen mounting screw,
then remove selector plug.

Reinstall the selector plug with its out out section
exposing the correct voltage indication.

. Tighten mounting screw.

220V and 240V models

Mounting screw

Fig.A

120V, 220V and 240V models (Fig. B)

1.
2.

3.
. Reinstall the selector plug with its out out section ex-

01

Disconnect the power cord.

Use a Phillips screwdriver to take out the fuse cap and
fuse.

Pull out the selector plug from the socket.

posing the correct voltage indication.

. Change the fuse in accordance with the table.
. Replace the fuse and fuse cap.

120V, 220V and 240V models

Fuse

Socket
Phillips

screwdriver gwm

Selector plug

Table
VOLTAGE FUSE
120V 2A
220V 1 . 2A
240V
Fig. B
