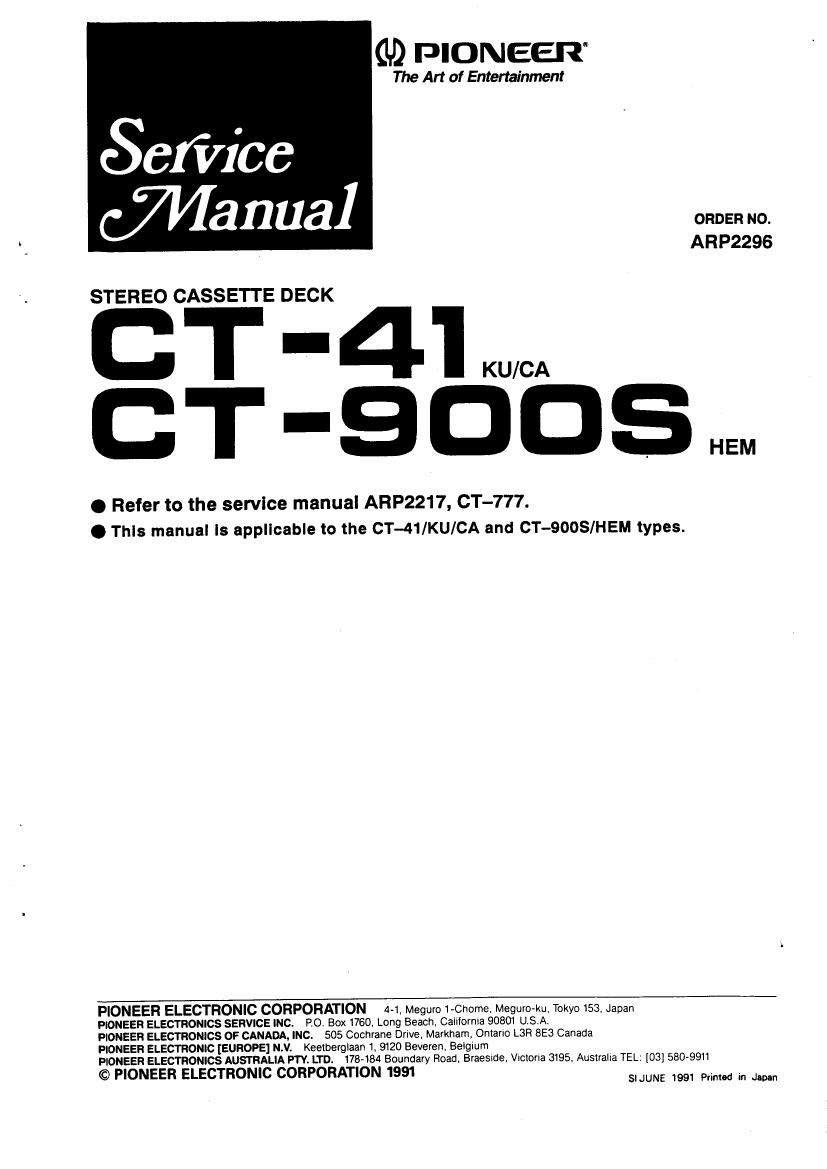

Page 1

(U) PIONEER

The Art of Entertainment

SCIViCC
Wanna]

ARP2296

STEREO CASSETTE DECK

T-41W
T-QDDSHEM

0 Refer to the service manual ARP2217, CT-777.
O This manual Is applicable to the CT-41/KU/CA and CT-QOOS/HEM types.

PIONEER ELECTRONIC CORPORATION 4-1, Meguto 1-Chome, Meguro-ku Tokyo 153 Japan

PIONEER ELECTRONICS SERVICE INC. PO. Box 1760. Long Beach, California 90801 USA.

PIONEER ELECTRONICS OF CANADA, INC. 505 Cochrane Drive. Markham Ontano LSR 8E3 Canada

PIONEER ELECTRONIC [EUROPE] N.V, Keetberglaan 1. 9120 Beveren. BeIqum

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundaw Road. Braesme. Vmoria 3195 AusIralxa TEL: [03} 58044911
© PIONEER ELECTRONIC CORPORATION 1991

SIJUNE 1991 Primtd in Japan

Page 2

CT-41/KU/CA, CT-QOOS/HEM

1 . CONTRAST OF MISCELLANEOUS PARTS

NOTES:

- Pans without part number cannot be Supplied.

- The A mutt found on some component parts indicates the importance of the safety factor 0! the part. Therefore. when replacing. be sure to use pans nf
identical designation.

- Parts marked by O " are not always kept in stock Their delivery time may be longer than usual or they may be unavailable.

The CT-41/KU/CA and CT-QOOS/HEM types are the same as the CT-777/HEM type wlth
the exception of the following sections.
Nos. in Remark" column correspond to the Illustration on page 4.

Part No.
Mark Symbol & Description 01-477, CT 41 I CT-QOOS/ Remarks
HEM type KU/CA type HEM type
Main unit Non supply Non supply Non supply
Operation unit Non supply Non supply Non supply
Control unit Non supply Non supply Non supply
Headphone unit Non supply Non supply Non supply
Power switch unit Non supply Non supply Non suppty
Dolby 5 unit ------ Non supply Non suppty ®
A Strain reliei cur-225 eta-22c cur-223
A Ac Power cord P061003 P061015 P061003
A FUN". FU702 Audio fuse (T SOOmA) EEK-097 ~~~~~~ EEK-097
A FU703, Fu7o4 Fuse (TZA) REK-103 ------ REK-Ioa
A FU701. FU702 Audio fuse (BOOmA) ------ Rex-019 ------
A F0703. Fu7o4 Fuse (1.3A) ------ REK_074 ......
A Power transformer (A0220-230I230-240V) RTl'l 1 11 ~~~~~~ RTTI 171
A Pow transformer (Act 20V) ------ RTTl 157 ------
FL filter RAH1542 RAHI 838 RAH1542
Door lens RLPl 028 RLP1034 RLP1034
Cord damper RNH-l 34 ............
Door RNKMBS RNK1730 RNKWSO
Bonnet RXX1378 RXXI 123 RXXl 128
From panel assembty RXX1385 RXXt 384 RXX1383
Door assembly RXX1417 RXXMIS RXXHM
PCB spacer - - - - Non supply PNY-404 ®
Unit holder Non supply Non supply @
Dolby S name plate ~ . ' - Non supply Non supply @
Packing case RHG! 219 RHG1218 RH61271
Connection cord with mini plug ------ p053 ......
Operating instructions (French. Italian. RRDt 109 ------ HRDI 109
Dutch. Swedish. Spanish. Portugueu)
Operating instructions (English. German) RREI 044 ...... RREI 044
Operating instructions (English) ------ RRBl 094 -----
