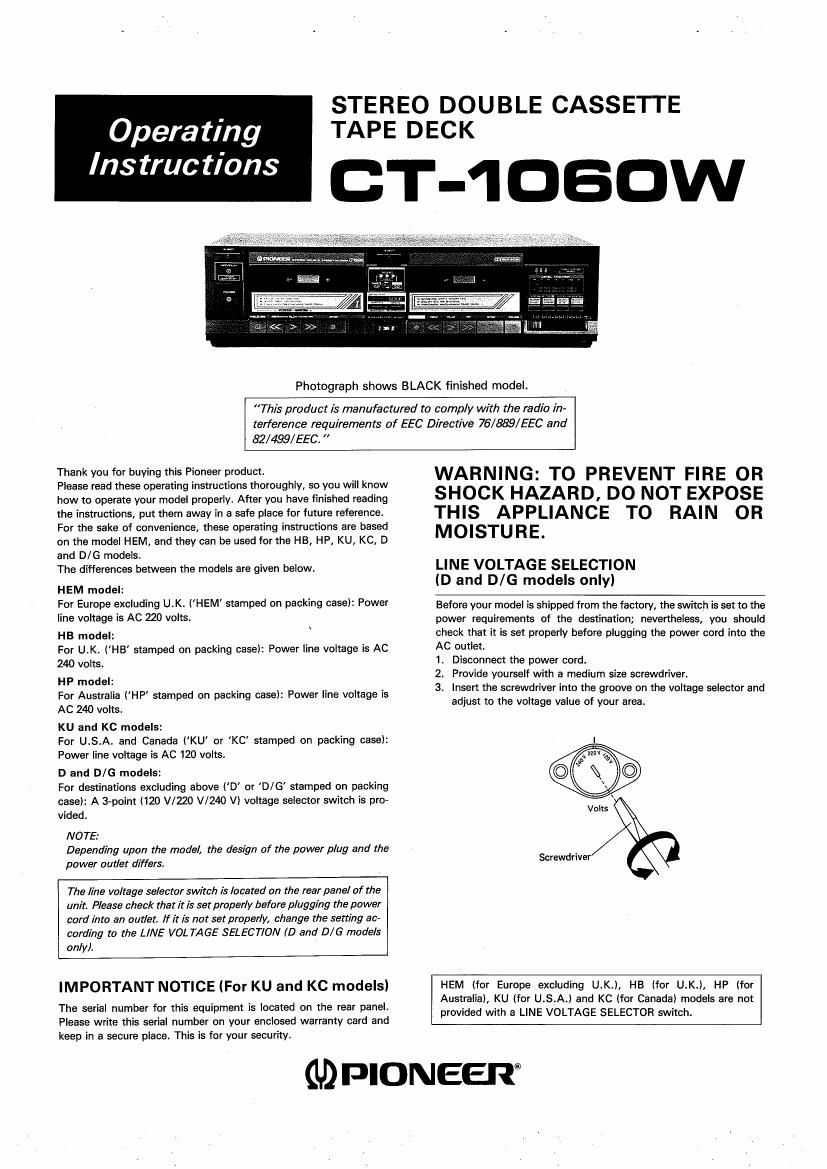

Page 1

Operating

Ins truc tions

STEREO DOUBLE CASSETTE
TAPE DECK

T-1OSD

Photograph shows BLACK finished model.

82/499/EE .

"This product is manufactured to comply with the radio in-
terference requirements of EEC Directive 76/889/EEC and

Thank you for buying this Pioneer product.

Please read these operating instructions thoroughly, so you will know
how to operate your model properly. After you have finished reading
the instructions, put them away in a safe place for future reference.
For the sake of convenience, these operating instructions are based
on the model HEM, and they can be used for the HB, HP, KU, KC, D
and D/ G models.

The differences between the models are given below.

HEM model:

For Europe excluding U.K. (HEM stamped on packing case): Power
line voltage is AC 220 volts.

HB model:

For U.Kl (HB stamped on packing case): Power line voltage is AC
240 volts.

HP model:

For Australia (HP' stamped on packing case): Power line voltage is
AC 240 volts.

KU and KC models:

For U.S.Al and Canada (KU or 'KC stamped on packing case):
Power line voltage is AC 120 volts.

D and BIG models:

For destinations excluding above (0 or D/G stamped on packing
case): A 3»point (120 Vl220 V/240 V) voltage selector switch is pro-
vided.

NOTE:
Depending upon the model, the design of the power plug and the
power outlet differs.

The line voltage selector switch is located on the rear panel of the
unit. Please check that it is set properly before plugging the power
cord into an outlet. If it is not set properly, change the setting ac-
cording to the LINE VOLTAGE SELECTION (D and D/ G models
only).

IMPORTANT NOTICE (For KU and KC models)

The serial number for this equipment is located on the rear panel.
Please write this serial number on your enclosed warranty card and
keep in a secure place. This is for your security.

WARNING: TO PREVENT FIRE OR
SHOCK HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.

LINE VOLTAGE SELECTION
(D and D/G models only)

Before your model is shipped from the factory, the switch is set to the

power requirements of the destination; nevertheless, you should

check that it is set properly before plugging the power cord into the

AC outlet.

1. Disconnect the power cord.

2. Provide yourself with a medium size screwdriver.

3. insert the screwdriver into the groove on the voltage selector and
adjust to the voltage value of your area.

Screwdriver

HEM (for Europe excluding U.K.). HB (for U.K.), HP (for
Australia), KU (for U.S.A.) and KC (for Canada) models are not
provided with 3 LINE VOLTAGE SELECTOR switch.

GD FIONEER®

Page 2

SAFETY INSTRUCTIONS

READ INSTRUCTIONS - All the safety and
operating instructions should be read betore the
appliance is operated.

RETAIN INSTRUCTIONS - The operating inatruc»
(ions should be retained for future reference

HEED WARNING - All warnings on the appliance
and in the operating instructions ehould be adhered
to.

FOLLOW INSTRUCTIONS - All operating and use
instructions Should be followed

WATER AND MOISTURE 7 The appliance should
not be used near water - for example, near a
bathtub. washbowi, kitchen sink, laundry tub, in a
wet basement, or near a swimming pool, etc.

LOCATION 7 The appliance should be installed in a
mole location.

WALL 0R CEILING MOUNTING 7 The appliance
should not be mounted to a will or «flingt

VENTILATION - Th5 appliance should be situated so
that its location or position does not interfere with
its proper ventilation. For example. the appliance
should not. be situated on a bed, sofa, mg, or
similar surface that may block the venu'lmion open-
ings; or, placed in a built- installation, such as a
bookcase or cabinet that may impede the flow of
air through the ventilation openings.

HEAT - The appliance should be situated away from
heart sources such as radiators, heat registers,
stoves, or other appliances (including amplifiersl
that produce halt.

rowan sounccs - The appliance should on can
netted to a power supply only of the type deecrib-
ed in the opereting instructions or as marked on the
appliance.

POWER-CORD PROTECTION 7 Power-suppiy cards
should be routed so that they are not likely to be
walked on or pinched by item: pleoed upon or
against them, paying particular attention to cords
at plugs, convenience receptacles, and the point
where they exit from the appliance.

POLARIZATION - If your purchased product is pro-
vided with a polarized power plup. please read the
lotlowing instructions. This product is equipped
with a polarized altemalirtg cunent lina plug (a plug
having one blade wider than the other). This plug
will fit into the power outlet only one way. This is a
safety feature, II you are unable to insert the plug
fully into the nuflet, try reversing the plug. It the
plug should stiil tail to fit, contact your electrician
to replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.

CLEANING - The appliance should be cleaned only
with a po ing cloth or a soft dry cloth Never
clean with furniture wax, benzina, insecticides or
other volatile liquids since they may corrode the
cabinet.

rowan service
Gmuunluc :mmoossrsrrv
l... inter-w mm wall! at».

POWER LINES 7 An outdoor antenna should be
located away from Wwar lines.

nouuss PERIODS - The power cord oi the ap-
pliance should be unplugged from the outlet when
left unused for a long period of time,

OBJECT AND LIQUID ENTRV - Care should be
taken so that objects do not fall and liquids are not
spilled into the enclosure through awnings.

DAMAGE REQUIRING SERVICE 7 The appliance
should be serviced by Pioneer authorized service
center or qualified service personnel when:

- The power-supply oord or the plug has been
damaged; or

' Objects have fallen, or liquid has been spilled into
the appliance; or

- The appliance has been exposed to rain; or

- The appliance does not appear to operate normally
or exhibits a marked change in performance; or

- The appliance has been dropped; or the enclosure
demeged.

SERVICING - The user should not attempt to service
the appliance beyond that described in the
operating instructions. For all outer servicing. con-
tact the nearest Pioneer authorized service center.

Pawn was

some:
enruncs
wnnuctols .

OUTDOOR ANTENNA GROUNDING - Ii an

outside antenna is connected to the antenna
terminal, lee sure the antenna system is
grounded so as to provide some protection
against voltage surges and built up static
charges.
In the U.S.A. section 810 of the National Elev
trical Coda, ANSI/NEFA Noc 704W, pro-
vides information with respect to proper
grounding of the min and supporting struc-
ture, grounding of the leadin wire to an amen-
na discharge unit, size or grounding conducr
tore. location of antenna-discharge unit, con-
nection to grounding electrodes, and re-
quirements tor the grounding electrode. See
Fig. A.

a) Use No. IO AWG (5.3 mml
copper. Not 8 AWG (3.4
mm) aluminum, No. l7
AWG (1.0 mm) copper-
clad steel, broom wire, or
larger as ground wire.

b) Secure antenna lead-in and
ground wires to house with
stand-on insulators apeoed
horn 4 feet 22 meters) to
8 ram (the meters) apart.

c) Mount antenna ditching:
unit as closely as possible to
where lead-in enters house,

sterile orr
lusuuwki o

ANIENNA
LEANN wire

To EXYEINAL ANKNM


fi-
r

rehwruus or rhooucr

ANYENNA .
DISCIAKEE urine

shown
wine -.e

enouuo
cums

ornorillt ANTHNA

gflnorm rtscrlroltr
aorrumn it o rm all m
litre WE seam lr
JUMPER c l mm '
ll tom DODES are
FIBA u use sacrum sum in

d)

Use iumpci- wire not smaller
than No.6 AWG (13.3 mm)
copper or equivalent when
separate antenna-ground-
ing electrode is need.

IMPORTANT 1

The lightning ilash with arrowhead, within an
equilateral triangle, is intended to alert the user of the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be ofsufficient magnitude
to constitute a risk of electric shock to persons.

CAUTION

RlSK OF ELECTRlC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK. DO
NOT REMOVE COVER (OR BACKI. NO USER-
SERVICEARLE PARTS INSIDE. REFER SERVIC»
ING TO QUALIFIED SERVICE PERSONNEL,

The exclamation point within an equilateral triangle la
intended to alert the user of the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

IMPORTANT 2

If the apparatus is fitted with AC mains power outletla),
see REAR PANEL FACILITIES for convenient connec»
tion of additional Hi icomponentis), Make all connec-
tions to the AC outletls) and the signal terminals Iirst,
Connect the plug to the wall socket last, make sure that
the power switch is off, Disconnect the wall plug when
the equipment is not in (regular) use, e.g. when on
vacation.

FOR USE IN THE UNITED
KINGDOM

WARNING: This plug must only In cannactad to
electronic apparatus equipped with suitable
sockets.

If not. cut off the plug and fit an appropriate type
in accordance with the instructions below.

The cut-off plug must be disposed of as an clac-
trical shock hazard could exist it connected to a
socket outlet.

The wires in this mains lead are coloured in accordance
with the following code:

Blue: Neutral

Brown: Live
As the colours oi the wires in the mains lead oi this ap-
paratus may not correspond with the coloured marking
identifying the terminals in your plug proceed as
follows:
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or col-
oured black.
The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or col
Dured red.
