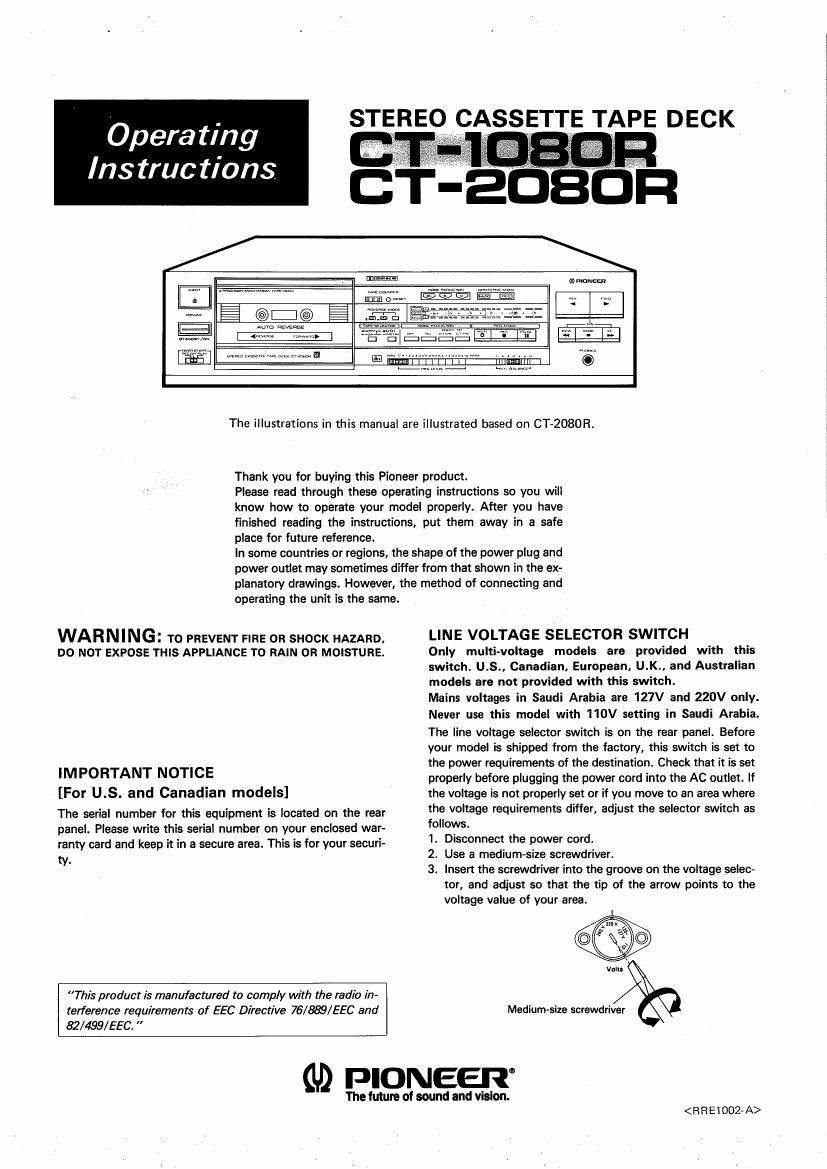

Page 1

\
l
:

Operating
Instructions

The illustrations in this manual are illustrated based on CT-2080R.

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will
know how to operate your model properly. After you have
finished reading the instructions, put them away in a safe
place for future reference.

In some countries or regions, the shape of the power plug and
power outlet may sometimes differ from that shown in the ex-
planatory drawings. However, the method of connecting and
operating the unit is the same.

LINE VOLTAGE SELECTOR SWITCH

Only mum-voltage models are provided with this
switch. U.S., Canadian, European, U.K., and Australian
models are not provided with this switch.

Mains voltages in Saudi Arabia are 127V and 220V only.
Never use this model with 110V setting in Saudi Arabia.
The line voltage selector switch is on the rear panel. Before
your model is shipped from the factory, this switch is set to
the power requirements of the destination. Check that it is set

WARNING: TO PREVENT FIRE oa snocx HAZARD,
DO NOT expose n-ns APPLIANCE TO RAIN on mousrune.

IMPORTANT NOTICE
[For U.S. and Canadian models]

The serial number for this equipment is located on the rear
panel. Please write this serial number on your enclosed war-
ranty card and keep it in a secure area. This is for your securi-

ty.

This product is manufactured to comply with the radio in-
terference requirements of EEC Directive 76/ BBQ/EEC and

82/499/55 .

properly before plugging the power cord into the AC outlet. If

the voltage is not properly set or if you move to an area where

the voltage requirements differ, adjust the selector switch as

follows.

1. Disconnect the power cord.

2. Use a medium-size screwdriver.

3. Insert the screwdriver into the groove on the voltage selec-
tor, and adjust so that the tip of the arrow points to the
voltage value of your area.

Medium-size screwdriver

PIONEER

The future of sound and vision.

Page 2

READ INSTRUCTIONS- All the safety and
operating Instructions shDuId be read before the
appliance is operated.

RETAIN INSTRUCTIONS - The operating instruc'
tiuns should be retained for future relerence.
HEED WARNING 7 All warnings on the appliance
and in the operating instructions should be

adhered to

FOLLOW INSTRUCTIONS 7 All operating and use
instructions should be Iollowed,

WATER AND MOISTURE-The appliance should
not be used near water e Ior example. near a
bathtub. washbowl. kitchen Sink, laundry tub, In a
wet basement, or near a swimming pool, etc

LOCATION 7 The appliance should be Installed In a
stable location.

WALL OR CEILING MOUNTING The appliance
should not be mounted to a wall or ceiling

VENTILATION - The appliance should be situated
so that Its location or position does not interfere
with its proper venttlation For example. the app
aliance should not be situated on a bed, sofa, rugy
or similar surlace that may block the ventilation
openings: or. placed In a built»in installation. such
as a bookcase or cabinet that may impede the
flaw of air through the ventilation openings.

HEAT 7 The appliance should be situated away from
heat sources such as radiators heat registers
stoves, or other appliances (including amplifiers)
that produce heat.

POWER souncas » The appliance should he
connected to a power supply only or the type
described in the operating Instructions or as
marked on the appliance.

POWER-CORD PROTECTION 7 Power~supply
cords should be routed so that they are not likely
to be walked on or pinched hy items placed upon
or against them. paying particular attention to
cords at plugs, convenience receptacles, and the
palm where they exit Irom the appliance.

POLARIZATION - il your purchased product is
provided with a polarized power plug, please read
the lollowing instructions. This product is
equipped with n polarized alternating current line
plug (a plug having one blade wider than the
other) This plug will fit into the power outlet only
one way. This is a safety lecture it you are unable
to insert the plug rully into the outlet, try reversing
the plug It the plug should still rail to fit. contact
your electrician to replace your obsolete outlet.
Do not deleat the safety Purpose at the polariled
plug.

CLEANING 7 The appliance should be cleaned only
with a polishing cloth or a sort dry cloth. Never
clean with Iurnlture wax. benzine, insecticides or
other volatile liquids since Ihey may corrode the

POWER SERVICE
GROUNDING ELECTRODE SYSTEM
(cg, interior metal water pipe)

SAFETY INSTRUCTIONS

POWER LINES7An outdoor antenna should be
located away from power lines.

NONUSE PERIODS-The power cord DI the
ap- pliance should be unplugged item the outlet
when iert unused tor a long perlod of time.

OBJECT AND LIQUID ENTRY-Care should be
taken so that objects do not (all and liquids are
not spilled into the enclosure through openings.

DAMAGE REQUIRING SERVICE-The appliance
should be serviced by a Pioneer authorized ser-
vice cantet or qualified service personnel when:

0 The power-supply cord or the plug has been
damaged; or

o Objects have Italian, or liquid has been spilled into
the appliance; or

n The appliance has been exposed to rain: or

O The appliance does noI appear to operate nor-
mally or exhibits a marked change in pattern
mance: or

o The appliance has been dropped; or the enclosure
damaged.

SERVICING - The user should not attempt to
service the appliance beyond that described in the
operating instructions. For all other servicing,
Contact the nearest Pioneer aulhoriled service
center.

POWER LINES

SERVICE ,.
ENTRANCE
CON Ducrons.

OUTDOOR ANTENNA GROUNDING - If an out-

side antenna is connected to the antenna termir
nai, be sure the antenna system is grounded so as
to provide some protection against voltage surges
and built up static charges,
In the USA. section 810 of the National Elec-
trical Code, ANSI/NFPA No. 70-1984, provides
iniormation with respect to proper grounding or
the mast and supporting structure, grounding of
the lead-in wire to an antenna dlscharge unit size
or grounding conductors, location of antenna-
discharge unit, connection to grounding eleca
trodes, and requirements lot the grounding elec-
trode. See Fig. A.

a) Use No. to AWG (5.3 mmz cop»
her. No, 8 AWG (8A mm ) alur
minum, No. 17 AWG (1.0 mmZ)
copperclad steal bronze wire, or
larger as ground wire.

b) Secure antenna lead-in and
ground wires to house with
stand-arr insulators spaced from
A test (l.22 meters) to 6 feet
(1.83 meters) apart.

c) Mount antenna discharge unit as
closely as possible to where lead-
ln enters house.

STAND-OFF d) Usciumoer wire not smaller than

'"smmRS " No,6 AWG (13.3 mm ) copper,
or the equivalent, when a sepa-
g rats antenna-grounding electrode
is used
ANTENNA See NEC Section arc-2| ti).
LEAD-IN WIRE

To EXTERNAL ANTENNA

GROUND WIRE an

BONDING

TERMlNALS or PRODUCT

GROUND
WlRE ab

GROUND
i-
; CLAMPS

V OPTIONALANTENNA
GROUNDING ELEcTnooE
DRIVEN a EEET (244 m)

: INTO rNE EARTH
JUMPER '1 I: IF REQUIRED

sv
ES

lateral triangle is intended to alert the user at the
presence oi uninsulated "dangerous voltage" within
the product's enclosure that may be or sullictent
magnitude to constitute a risk or electric shock to
uersons.

TO PREVENT THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (ON BACK} NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.

cabinet Eton i LOCAL coo SEE
" NEc sscrioN 8l0-Zl Ill.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning riash WlIII arrowhead. within an equi- CAUTION: The exclamation point within an equilateral triangle ts

intended to alert the user or the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

IM PORTANT Z

If the apparatus is fitted with AC mains power out»
let(s). see REAR PANEL FACILITIES for convenient
connection of additional Hi-Fi component(s). Make
all connections to the AC outlet(s) and the signal
terminals first. Connect the plug to the wall socket
last make sure that the power switch is off. Discon-
neat the wall DIUQ when the equipment is not in
(regular) use, eg. when on vacation.

FOR USE IN THE UNITED
KINGDOM

The wires in this mains lead are coloured In accor-
dance with the loliowirlg code:

Blue: Neutral

Brown: Live

As the colours ot the wires in the mains lead or this
apparatus may not correspond with the coloured
marking Identifying the terminals in your plug proceed
as follows:

The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or
coloured black.

The wire which is coloured brown must be connected
to the terminal which is marked with the letter L or
coloured red.

Equipment sold in the UK. is not supplied with
a power plug.

2
