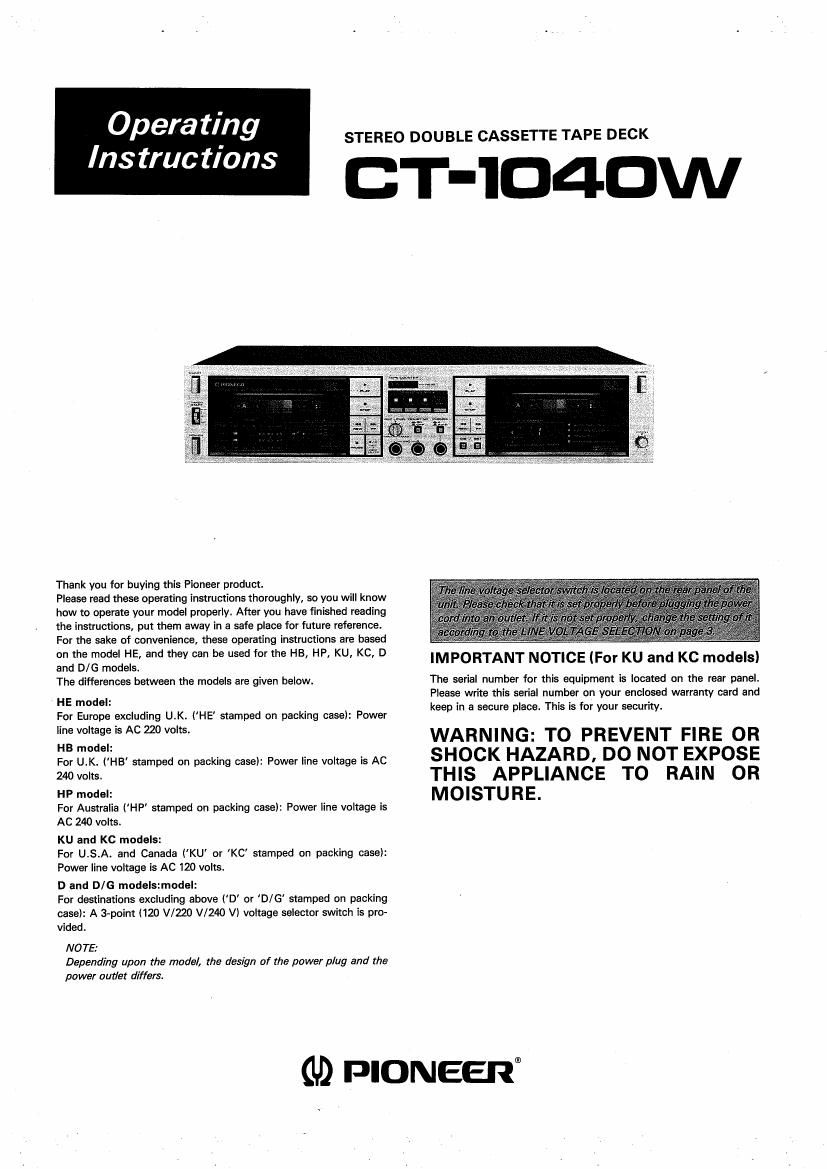

Opera ting

Instructions

STEREO DOUBLE CASSETTE TAPE DECK

CT-ID4DW

Thank you for buying this Pioneer product.

Please read these operating instructions thoroughly, so you will know
how to operate your model properly. After you have finished reading
the instructions, put them away in a safe place for future reference.
For the sake of convenience, these operating instructions are based
on the model HE, and they can be used for the HB, HP, KU, KC, D
and D/G models.

The differences between the models are given below.

HE model:

For Europe excluding U.K. (HE stamped on packing case): Power
line voltage is AC 220 volts.

HB model:

For U.K. (HB stamped on packing case): Power line voltage is AC
240 volts.

HP model:

For Australia ('HP' stamped on packing case): Power line voltage is
AC 240 volts.

KU and KC models:

For U.S.A. and Canada ('KU or 'KC' stamped on packing case):
Power line voltage is AC 120 volts.

D and DIG modelszmodel:

For destinations excluding above (0 or D/G stamped on packing
case): A 3-point (120 V/220 V/240 V) voltage selector switch is pro-
vided.

NOTE:
Depending upon the model, the design of the power plug and the
power outlet differs.

IMPORTANT NOTICE (For KU and KC models)

The serial number for this equipment is located on the rear panel.
Please write this serial number on your enclosed warranty card and
keep in a secure place. This is for your security.

WARNING: TO PREVENT FIRE OR
SHOCK HAZARD, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR
MOISTURE.

(U) momeenfi

Page 2

SAFETY INSTRUCTIONS [FOR KU MODEL]

READ INSTRUCTIONS 7 All the safety and
operating instructions should be read beiora the
appliance is operated.

RETAIN INSTRUCTIONS 7 The Operating instruc-
tions should be remitted for future reference.

NEED WARNING - All warnings on the appliance
and in the operating instructions should be adhered
to.

FOLLOW INSTRUCTIONS - All operating and use
instructions should be folitrwedt

WATER AND MOISTURE 7 The appliance should
not be used near water - for example, near a
bathtub, washbowl, kitchen sink, laundry tub, in a
wet basement, or near a swimming pool, also

LOCATION 7 The appliance should be installed in a
stable location

WALL OR CEILING MOUNTING 7 The appliance
should not be mounted to a wall or ceiling

VENTILATION - The appliance should be situated so
that its location or position does not interfere with
its proper ventilation. For example, the appliance
should not be situated on a bed, soia, rug, or
similar surface the! may block the ventilation Open-
ings; or, placed in a built-in installalion, such as a
bookcase or cabinet that may impede the Ilow of
air through the ventilation openings.

HEAT 7 The appliance should be situated away from
heat sources.sul:h as radiators, heat registers,
stoves, or other appliances (including amplifiers]
that produce heat,

POWER SOURCES - The appliance should be con-
nected to a power supply only or the type descrip-

ed in the operating instructions or as rrtarted on the
appliance.

POWERCOHD PROTECTION - Powerrsrupply cards
should be routed so that they are nut likslv to be
walked on or pinched by items placed upon or
against thorn, paying particular attention to cords
at plugs, convenience receptacles, and the point
where they exit train the appliance.

CLEANING - The appliance should be cleaned only
with a polishing cloth or a sort dry cloth. Never
clean with furniture wax, bdnzine, insecticides or
other volatile liquids since they may corrode the
cabinet

POWER LINES - Ari oumoor antenna should be
located away from power lines.

NONUSE PERIODS - The power cord of the ap-
pliance should be unplugged farm the outlet when
left unused for a long period or time.

OBJECT AND LIQUID ENTRY - Care should be
taken so that objects do not tell and Iiuuids are not
spilled into the enclosure through openings.

DAMAGE REQUIRING SERVICE - The appliance
should be serviced by Pioneer authorized service
center or qualified service personnel when:

- The power-supply cord or the plug has been
damaged; or

- Objects have fallen, or liquid has been spilled into
the appliance; or

. The appliance has been exposed to rain; or

The appliance dues not appear to operate normally
or exhibits a marked change in performance; or

- The appliance has been dropped; or the enclosure
damaged.

SERVICING - The user should not attempt to service
the appliance beyond that described in the
operating instructions. For all other servicing, con-
tact the nearest Pioneer authorixed service center,

OUTDOOR ANTENNA GROUNDING 7 li an outside
antenna is connected to the antenna terminal, be
sure the antenna system is grounded so as to pro»
vide some protection against voltage surges and
built up static charges.

In the USA. section 810 of the National Electrical
Code, ANSI/NEPA Not mlsal, provides infcrmar
tiorl with respect to proper gruundig of the mast

and supporting structure, grounding or the leadrin.

wire to an antenna discharge unit, size or groun»
ding conductors, location of antenna-discharge
unit, connection to grounding electrodes, and re
guirements tor the grounding electrode. See Fig

EXAMPLE OF ANTENNA GROUNDING AS
PER NATIONAL ELECTRICAL CODE INSTRUC-
TIONS

Ground clam s
p \

a}. bi
Mas!
ground c)
vrlre Antenna To Antenna terminal
drscharge\
unit
> Ground clamps
Grounding electrode
driven 8 into the earth
(2.44 meters}
Fig, A

3) Use No. 10 AWG (5.3 min!) copper or No. a AWG
18.4 mm) aluminum or No. 17 AWG (1.0 mm)
copperrclad steel or bronze wire, or larger as
ground wires for both mast and leadvinl

b) Secure lead-in wire from antenna to antenna
discharge unit and mast gmund wire to house with
stand-off insulators. spaced from 4 Tee! (ltfl
meters) to 6 feet (1.53 meters) npm.

cl Mount antenna discharge unit as closely as possi-
pie to where load-in enters house.

IMPORTANT [FOR KU MODEL]

The lightning flash with arrowhead,
within an equilateral triangle, is intended
to alert the user of the presence of
uninsulated dangerous voltage within
the products enclosure that may be of

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SIIDI'rK. DO
NOT REMOVE COVER (OR BACK). NO llSER-
SERVIOEABLE PARTS INSIDE. REFER SERVICING
TO IIIIALIFIED SERVICE PERSONNEL

exclamation point within an

equilateral triangle is intended to alert the
user of the presence of important
operating and maintenance (servicing) i .
structions in the literature accompanying

sufficient magnitude to constitute-a risk
of electric shock to persons.

the appliance.

IMPORTANT

To prevent dectric shock, do not remove cover. No user ser-
viceable pan§ inside, refer servicing to qualified service personnel.
Always disconnect all the equipment from the mains supply when
disconnecting the signal leads. The power cord should be con-
nected last, make sure that the power switch is off.

Unplug the set from the wall socket when it is not to be used for an
extended period of time.

FOR USE IN THE UNITED KINGDOM
AND AUSTRALIA

CAUTION 240 V: Mains supply voltage is factory

adjusted at 240 V.

FOR USE IN THE UNITED KINGDOM

The wires in this mains lead are coloured in accordance with the
following code:

Blue: Neutral

Brown: Live
As the colours of the wires in the mains lead of this apparatus may
not correspond with the coloured marking identifying the tera
minals in your plug proceed as follows:
The wire which is coloured blue must be connected to the terminal
which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the ter-
minal which is marked with the letter L or coloured red.
