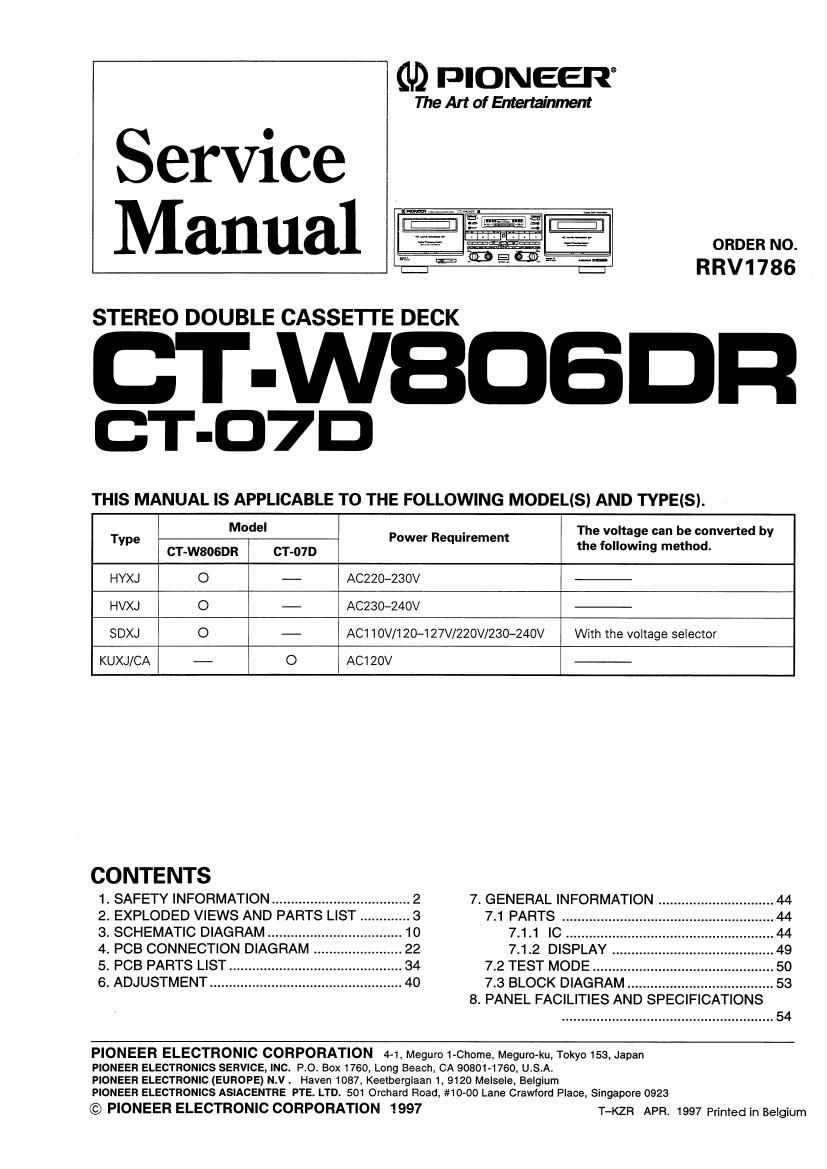

Page 1

Service
Manual

(L9 PIONEER

The Art of Entertainment

STEREO DOUBLE CASSETTE DECK

ORDER NO.
RRV1786

T-WBDBDFI

CT-D7D

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODELISI AND TYPEIS).

Model
Type CT-W806DR CT-07D Power Requirement 1:: f::tfi:;:;:§§?vened by
HYXJ O - AC220-230V
HVXJ O - AC230-24OV
SDXJ O - AC1 1OV/l20-127V/220V/230-240V With the voltage selector
KUXJ/CA - O AC120V
CO NTE NTS

1. SAFETY INFORMATION ............................
2. EXPLODED VIEWS AND PARTS LIST.
3. SCHEMATIC DIAGRAM ...............
4. PCB CONNECTION DIAGRAM
5. PCB PARTS LIST
6. ADJUSTMENT .........

7. GENERAL INFORMATION
7.1 PARTS .....
7.1.1 IC
7.1.2 DISPLAY
7.2 TEST MODE ....... .
7.3 BLOCK DIAGRAM ..... 53

8. PANEL FACILITIES AND SPECIFICATIONS
..... 54

PIONEER ELECTRONIC CORPORATION 4-1,Megurol-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V . Haven 1087. Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1997

T-KZR APR. 1997 Prinledin Belgium

Page 2

CT-W806DR, CT-07D

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you

should not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead in solder used in this product is listed by the California Health and Welfare agency as a known reproductive toxicant which
may cause birth defects or other reproductive harm (California Health & Safety Code, Section 25249.5).

When servicing or handling circuit boards and other components which contain lead in solder, avoid unprotected skin contact with

the solder. Also, when soldering do not inhale any smoke or fumes produced.

NOTICE
(FOR CANADIAN MODEL ONLY)

Fuse symbols IE3- (fast operating fuse) and/or a

parts must be of identical designation.

REMARQUE
(POUR MODELE CANADIEN SEULEMENT)

(slow operating fuse) on PCB indicate that replacement

Les symboles de fusible E» (fusible de type rapide) et/ou a (fusible de type lent) sur CCI indiquent que
les pieces de remplacement doivent avoir Ia meme designation.

- (FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.

LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals.
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.

Leakage
current
Device tester

under

test ='-|__+l -

Test an exposed
metal surfaces

Reading should
not be above
0.5 mA

Also test with plug
reversed

(Using AC adapter
plug as required)

©(t

? Earth ground

AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A P0-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the app|i<
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for
voltage. wattage , etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.

Electrical components having such features are

identified by marking with a Q on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.

Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
