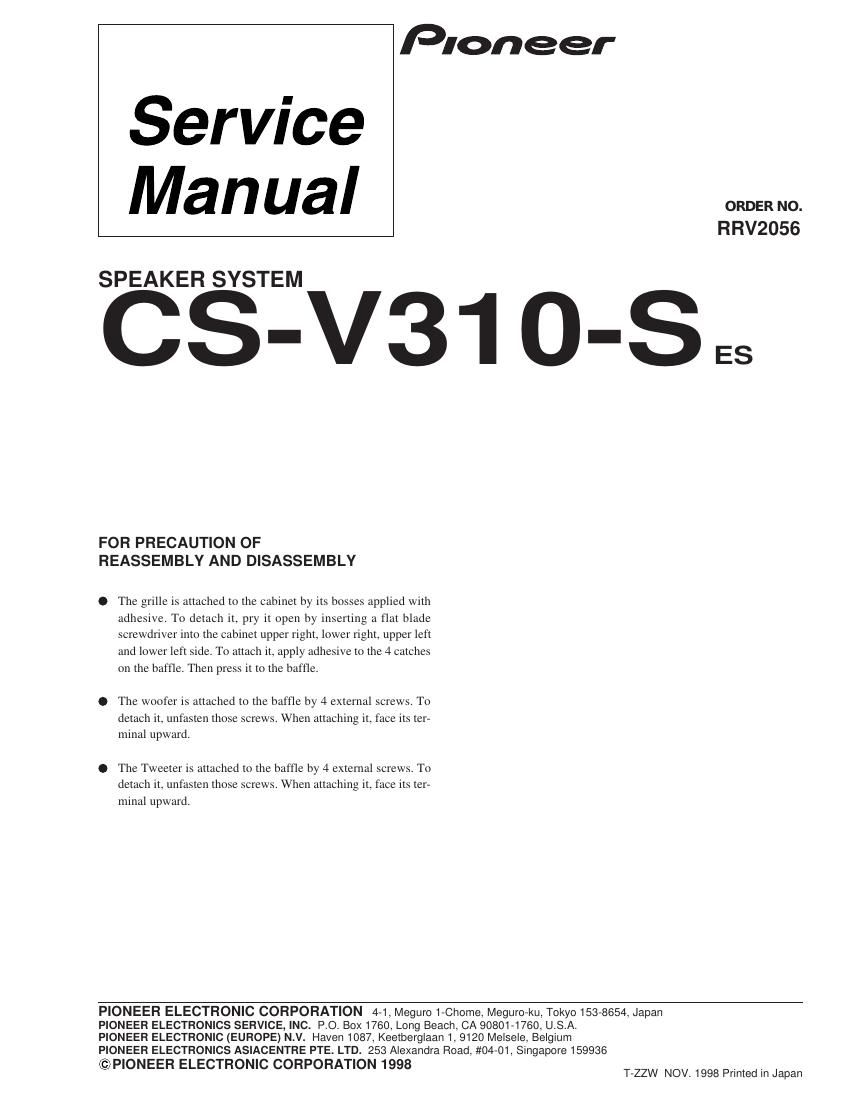

Pioneer csv 310 service manual

Page 1

2 NSP Duct ASSY SMR1301 NSP Damper SER1254 NSP Duct 50 SMR1297 NSP Acoustic Absorbent SMV1935 Speaker 20 (Woofer) SWB1040 Speaker 77 (Tweeter) SWS1029 NSP Screw (for Catch) SBA-102 Screw (for Speaker) SBA-122 NSP Accessories Set SME2906 NSP Hanging Hook Set SEA1446 NSP Screw Bag Set SEA1265 Bind Tapping Screw 5 BYC50P200FZB (for Safety Belt) NSP Screw Bag Set SEA1266 Screw BYC40P200FZB (for Wall Hanging fixture) Safety Belt SEW1019 NSP Packing Bag SHL-338 Hanging Hook SNB-393 NSP Polyethylene Bag S2 SHL-033 Operating Instructions SRD1212 (English/ Chinese) Protector SHB1037 Protection Mat S5 SHC1208 Center Divider SHD1027 Packing Case SHG2189 Mark No. Description Part No. Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. CS-V310-S For Packing NSP Cabinet (L) SMM1844 NSP Cabinet (R) SMM1845 Grille (L) SMG1654 Screw BPZ40P160FMC NSP Logo 100 SAM1463 NSP Cosmetic Sash SAP1110 NSP Grille Net SAS1453 NSP Ring SBG1003 NSP Grille Frame (A) SNK1837 NSP Cosmetic Baffle SNK2383 Grille (R) SMG1655 Screw BPZ40P160FMC NSP Logo 100 SAM1463 NSP Cosmetic Sash SAP1110 NSP Grille Net SAS1453 NSP Ring SBG1003 NSP Grille Frame (A) SNK1837 NSP Cosmetic Baffle SNK2383 Network ASSY SWN1593 NSP Catch SEB-075 NSP Packing (for Tweeter) SEE1062 NSP Input Terminal SKX1050 NSP Stamped Model Label (L) SME2904 NSP Model Label (L) SAN2691 NSP Stamped Model Label (R) SME2905 NSP Model Label (R) SAN2692 Network ASSY (SWN1593) SCHEMATIC DIAGRAM Br: There is an internal automatic repeater protection unit (Br) which protects the speaker from excessive input or abnormal signals. Br operates if there is an excess input to the speaker and prevents sounds from benign heard. If Br operates, lower the amplifier volume. Automatic repetition will occur after about 5~10 seconds. 1.8µF Tweeter INPUT Red White Red Black Blue White 1.4A 0.5A 3.3½ Woofer Br1 Br2
