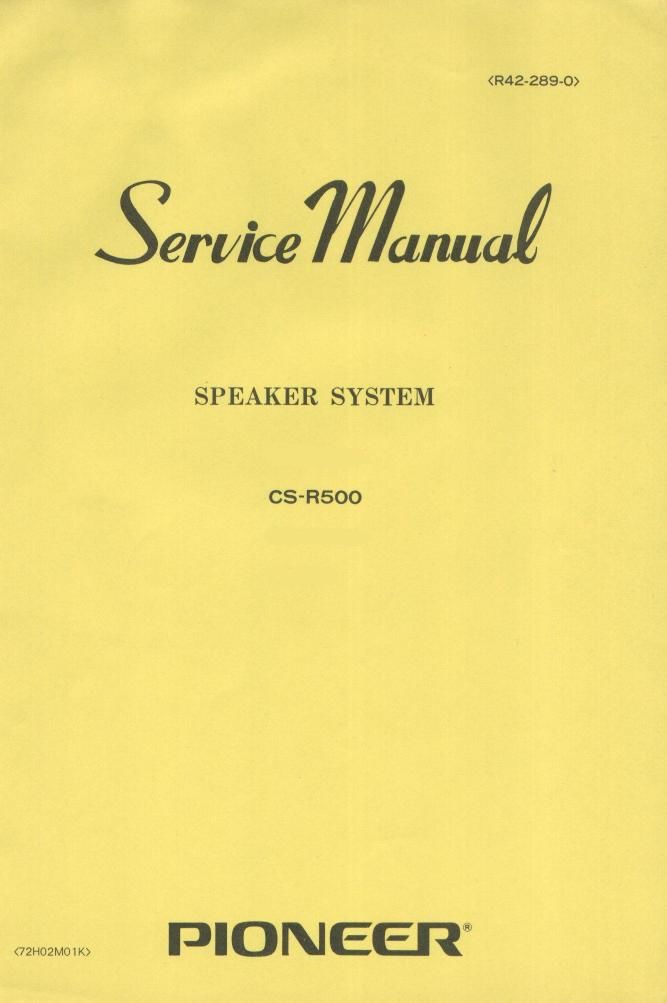

Pioneer csr 500 service manual
This is the 5 pages manual for pioneer csr 500 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer csr 500 service manual (Ocr-read)
Page 2
2. CS-R500
2.1 SPECIFICATIONS
Enclosure Bass-reflex type
System 3-way 3-speaker system
Speakers;
Woofer 25cm (10 in.) cone type
Mid Range 12cm (5 in.) cone type
Tweeter Horn type
Frequency Range 35Hz to 20.000Hz
Input Impedance 8
Sensitivity 91dB/W at 1 m distance
Max. Input Power 60W
Crossover Frequencies: Lows - Mid range GSOHZ
Mid range - Highs 6,000Hz
External Dimensions 350(Wi x S10iHi x 306(0) mm
13v25l32iwi x 24IHix12-1/32ID) in.
WaighI 18.5kg (40lb 1302i
NOTE: Specifications and the design subject to possible
madifica rion without notice due 20 improvements.
DIRECTIONAL FREQUENCY RESPONSE
.,-
I, raj
gs]
RESPONSE IN (13
a: so IEID m 50a IOflD 2000 50m moan zanoo
FREQUENCY IN Hz
CHARACTERISTICS OF IMPEDANCE
IMPEDANCE IN S2
2U 50 IDO 200 500 lflflfl MOO 5000 iflflnfl 2nnnu
FREQUENCY IN Hz
