Pioneer cs 99 a brochure

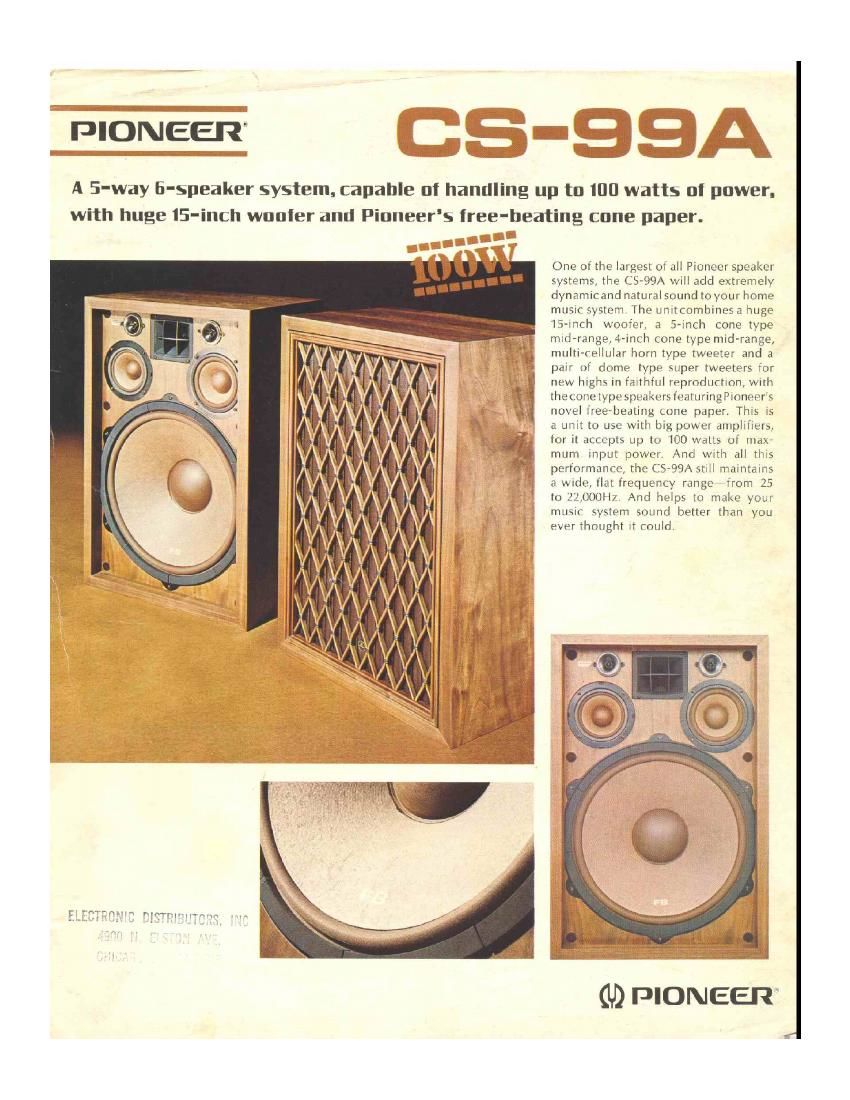

Page 1

Edwin

, w r}

A 5-way 6-speaker system, capable at handling up to IIJIJ watts of power.
with huge 15-inch wunler and Pioneer's tree-beating cune paper.

One of lhe largest of all Pioneer speaker
systems, the CS-99A will add extremely
dynamicandnaluralsoundtoyourhome
musm system The unitcombines a huge
15-mch woofer. a 5-inch cone type
mld-range, 4-inch cone type mid-range,
multi-cellular horn type tweeter and a
pair of dome rypp wppr tweeters for
new highs In fanhful reproduflmn, WIrh
Ihecone type speakers featuring Pioneers
novel I'reeibeaung cone paper. This ls
a unit to use with big power dmpllflers.
for it accepts up to 100 walls 01' max
mum Input power And wuh all this
performance, the CS-99A snll mainralns
a wide, flat frequency range from 25
re 22,000Hz And helps to make your
rnusir system sound better than you
Pver thought ll could.

W: NWWW k

(1,9 PIONEER

Page 2

CS-QSA

RICH, DYNAMIC BASS

The CS-99A employs a 15-inch cone type woofer set in
the speciallyoesigned infinite battle type enclosure. The
woofer has been designed to minimize distortion and to
ensure powerful, well-damped, well-defined bass. These
characteristics are enhanced by the use of an extra-large
magnet, as well as Pioneers free-beating cone paper.

NATURAL MID-RANGE, PRECISE HIGHS

This unit employs two mid-range speakers, and three
tweeters. There is a 5-inch cone type mid-range and 4-
inch cone type mid-range speaker, for the addition of
natural sound quality to this very important area of the
frequency range. Additionally, lor smooth, sparkling
highs, Pioneer has incorporated two M-inch dome type
super tweeters, as well as a multi-cellular horn type
tweeter in the CS-99A, the latter for very high frequencies
and excellent sound dispersion.

ADVANCED PERFORMANCE CHARACTERISTICS

All speakers used in the CS-99A have been selected for
satisfyingly smooth and natural response throughout the
audible range. They are perfectly matched and balanced
for flawless sound reproduction. The maximum input
power of 100 watts means that the (LS-99A can handle

llCl

IOU

RESPONSE IN dB

20 5D IDO 200 500

even the most overwhelming orchestral climaxes with
ease, and also with convincing realism. Frequency range
of the entire system is very Wide-from 25 to 22,000H7
iand flat.

EB." (Free Beating) PROCESS CONE PAPER

The brown cone paper in the CS-99A system is different
from conventional cone papers, since it is composed of
long and short, thick and thin fibers, that are beaten,
not cut. The pulp itself is made from specially selected
plantand animal fibers, then processed through Pioneers
Free Beating System. The result of this new technology
is a cone paper that is lighter, stronger than any other.
It prowdes a rich,powerful basstone, clear mids,improved
damping, lower distortion and the ability to handle high
input signals. The difference is substantial; you will hear
it immediately.

FINE FURNITURE LOOK

The pleated saran grille cloth and luxurious grille, plus
the solid construction of the walnut enclosure, give the
CS-99A a highly distinctive appearance. The grille is
easily removed, revealing a walnut-baffle board and
matching speakers.

LOUD

21000

5.000 lUiDOO 20.000 30,000

FREQUENCY IN Hz

SPECIFICATIONS
Enclosure:
Mounted Speakers-

lnfinlte baffle type
15-inch woofer, 57inch mid-
range,4-inch mid-range, multi-

cellular horn type tweeter,
l4-inch dome type super
tweeterxz

Impedance: 8 ohms

Frequency Range: 25 to 22,000Hz

Maximum Input Power; 100 watts

Crossover Frequency: 800Hz, 2,000H2, 5,000Hz,
10,000Hz .1

Sensitivity: 97dB/W (at 1 meter distan e)

Dimensions: 16,'/§(W)>(24"16(H)><11%% )
inches
419(W)X630(H)x290(D)mm

\Neight: 51]b.1lozt,i'23.i Kg

(1,9 PIONEER"

PIONEER ELECTRONIC CDHBDRATION . 471,1 Enema,MEQUVU.MQJFG i. Em-HuNEEFi ELECTFIanDS CGnFCinATION ' 7S DxDrd Dove MCOFELJWIE. New Jasay D7D7ri LLSJA
=iDNEER ELECTRONIC (EUROPE: NV i Mar-Cerise: Mair 21, EUDD Aliiweru, Ealgiunx
HIUNEEZI ELFCTPDMGE AUSTHAUA FTY LTD J ass a any Road,SDuth MaibounneNcmwa BEDS, Australian.

NOTE: Speciilcat one and Llcetgil subchl It) possibic maiiimiim Wimn ii miiicc

summons-74 Prinraii in Japan
