Pioneer cs 9070 service manual

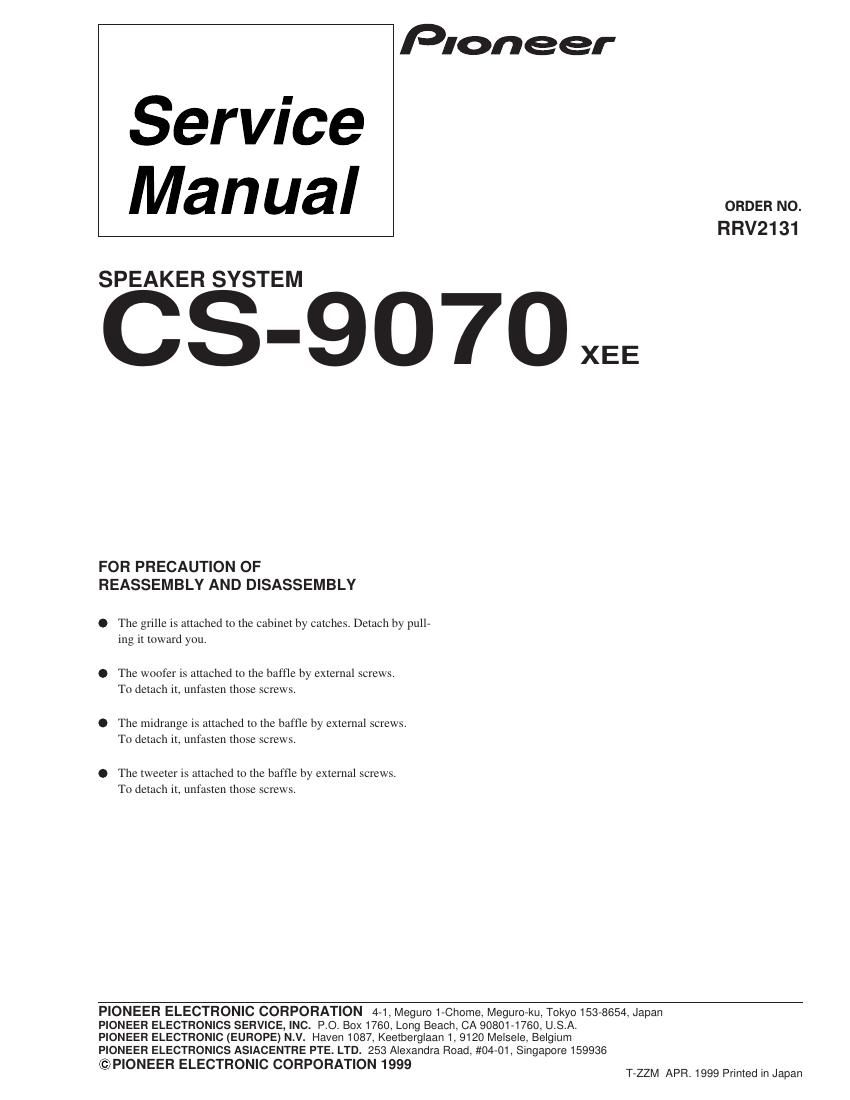

This is the 2 pages manual for pioneer cs 9070 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cs 9070 service manual (Ocr-read)
Page 1
2Mark No. Description Part No. Network ASSY (FRWN-143) SCHEMATIC DIAGRAM For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. CS-9070 Grill ASSY FRMG-151 Network ASSY FRWN-143 Badge FRAM-028 NSP Model Label FRAN-237 Input Terminal Board FRKX-013 NSP Duct 60 FRNK-052 Acoustic Absorbent FRMV-028 Catch FRNK-015 Speaker (Woofer) A30FC92-53E Speaker (Mid-range) P77CP60-55F Speaker (Tweeter) P66AP45-80F Screw (for Mid-range and Tweeter) RA81-4x20 Screw (for Woofer) RA81-4x25Speaker Wire ESDD-003 Operating Instructions FRRD-118 NSP Warranty Card FRRY-024 Protecter (for Top) ESHA-035 Protecter (for Bottom) ESHA-036 Polyethylene Bag ESHL-009 Packing Case FRHG-222 Woofer Mid-range I NPUT Red Green White Black White Tweeter 1.8µF Black 1.0µF
