Extracted text from pioneer cs 901 service manual (Ocr-read)

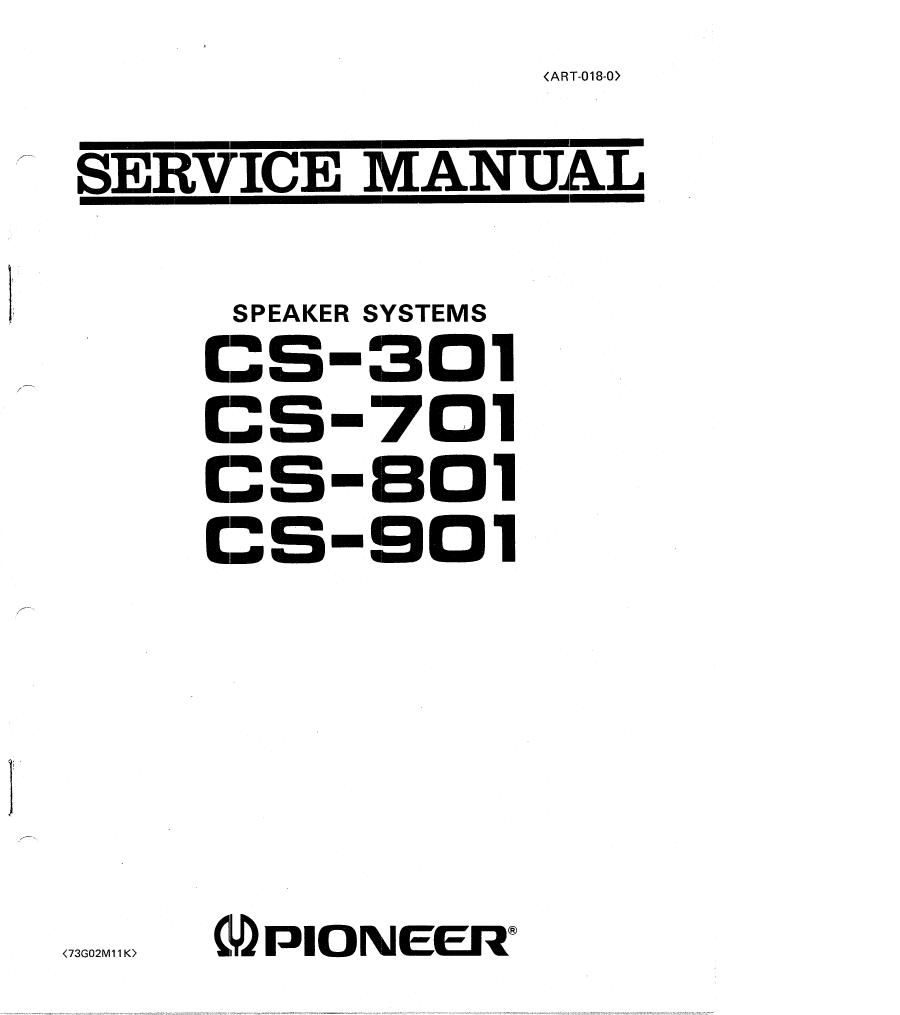

Page 1
-----------
SERVICE MANUAL
SPEAKER SYSTEMS
(35-301
(35-7-1
(35-801
(35-901
MPIONEEW
Page 2
(35-301
1.CS£01
1.1 SPECIFICATIONS 1.2 CIRCUIT DIAGRAM
Enclosure ..................................... Bassreflex type l-.___.__-_.__..__.__....__I
System ................................. 2-way 2-speaker system I I
Loudspeakers: I I
Woofer ............................... 250m (10 in.) cone type
Tweeter ............... Horn type (.9 I 07201 I BLUE
Frequency Range . . . . . . . 50 to 20,000Hz é)-
Nominal Impedance ....................................... 89 INPUT I I @
Sensitivity ............................... 94dB/W at 1m distance WOOFER
Maximum Input Power .......... _ .......................... 40W I 25'713F'1
Crossover Frequency .................................. 5,200Hz l 6
Dimensions ........................ 320(W) x 510(H) x 220(D)mm Y WHITE
12-5/8(W) x 20-1 /16(H) x 3-11/16(D) in. I
Weight ...................................... 10.2kg/22 lb 702. 2 39. I
NOTE: 2'7 l'"' l WHITE
Specifications and the design subject to possible modification without
notice due to improvements.
FREQUENCY RESPONSE
no
9%
i
L_____.___._____.._._._.__.
SPL iN dB
8
20 so loo zoo soc lk 3k an «ex 2m
FREQUENCY IN Hz
HARMONIC DISTORTION
no
70
SPL IN 68
so 2nd immune:
20 so [00 zoo 500 ix 2k 5x Cox 2:»
FREQUENCY IN H1
IMPEDANCE
IMPEDANCE IN A
20 50100200 500 IR 2x an «ex 20x
FREQUENCY IN Hz
05-301 08-301
