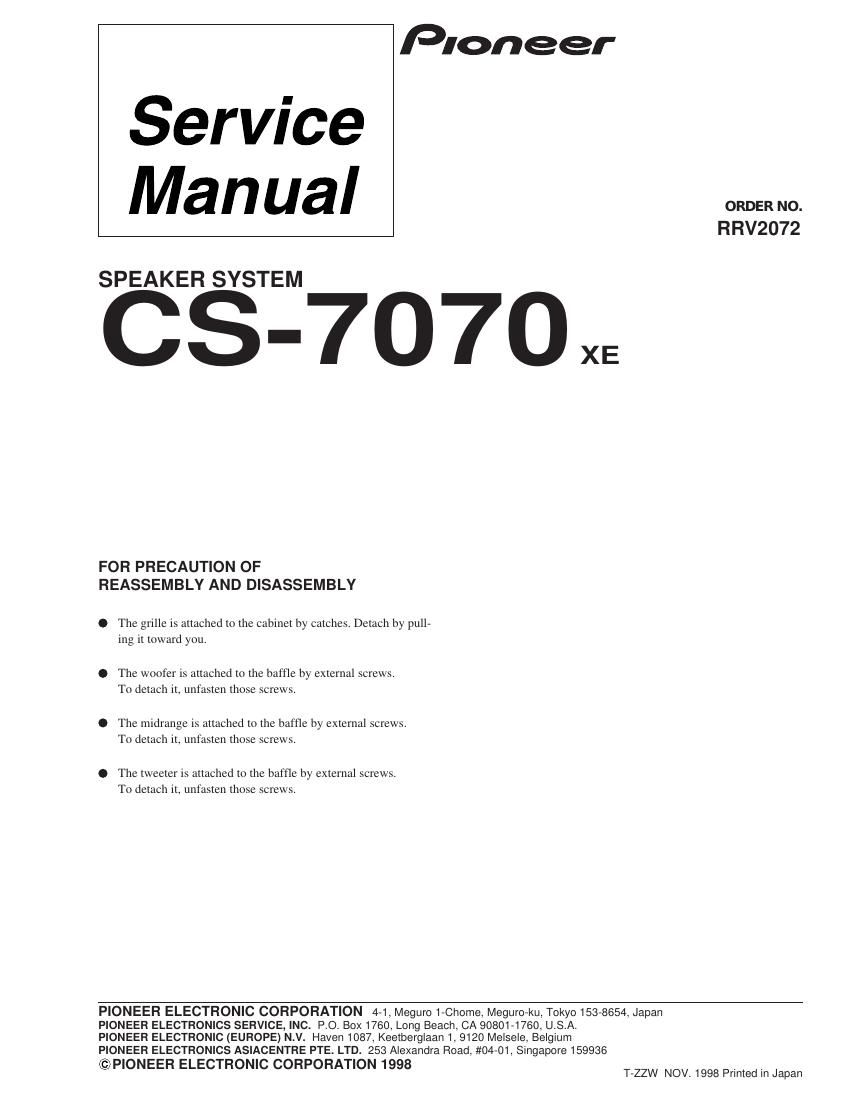

Pioneer cs 7070 service manual
This is the 2 pages manual for pioneer cs 7070 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cs 7070 service manual (Ocr-read)
Page 1
2Mark No. Description Part No. Network ASSY (FRWN-146) SCHEMATIC DIAGRAM For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. CS-7070 Grill ASSY FRMG-155 Network ASSY FRWN-146 Badge FRAM-032 NSP Model Label FRAN-240 Input Terminal Board FRKX-013 NSP Duct 60 FRNK-051 Acoustic Absorbent FRMV-031 Catch FRNK-015 Speaker (Woofer) H25FC88-53E Speaker (Mid-range) P77CP60-52D Speaker (Tweeter) P66AP45-80F Screw (for Mid-range and Tweeter) FRBA-011 Screw (for Woofer) RA81-5*25Speaker Wire FRDD-034 Operating Instructions FRRD-121 NSP Warranty Card FRRY-027 Protecter (for Top) FRHA-042 Protecter (for Bottom) FRHA-043 Protection Mat S5 FRHC-012 Packing Case FRHG-225 Woofer Mid-range I NPUT Red Green White Black White Tweeter 2.2µF Black 0.82µF
