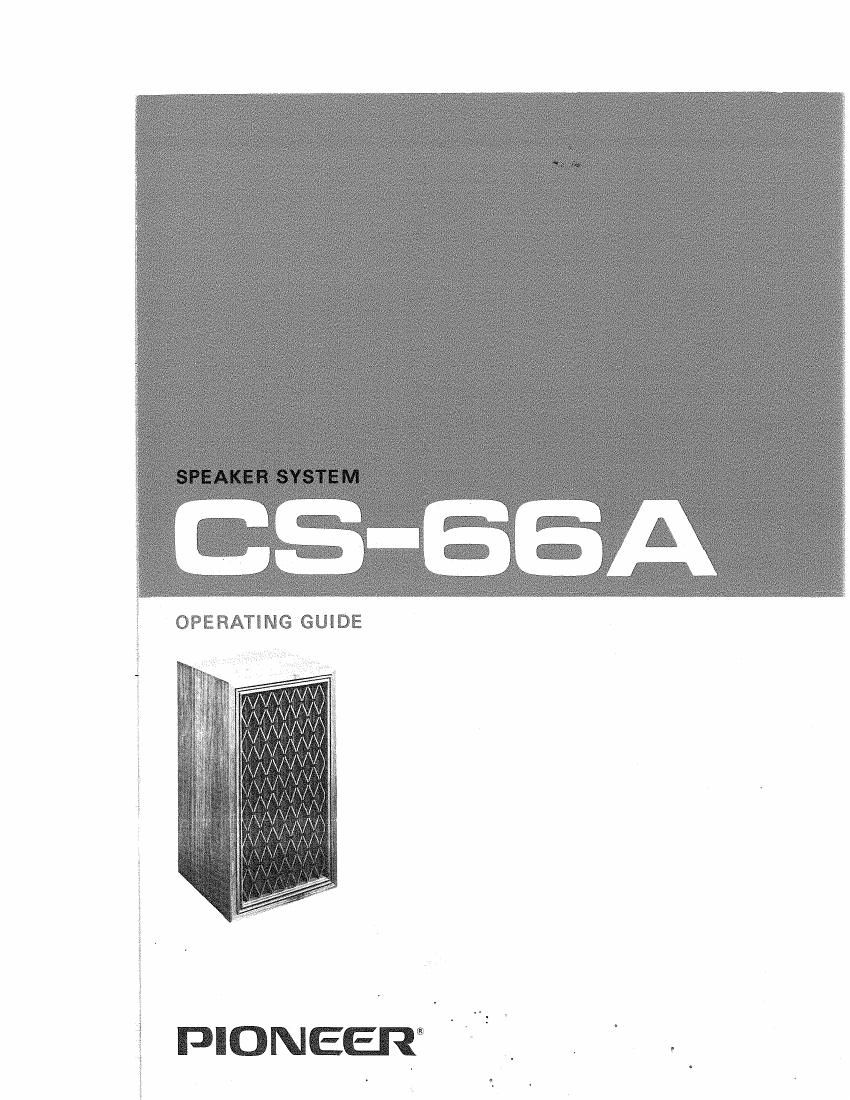

Page 1

OPERATING GUEDE

mama-2m '

Page 2

We wouid like to take this opportunity to congratulate you on becoming the
proud owner of a Pioneer CS-66A speaker system. This new concept in speaker
design and performance is the result of years of experience plus Pioneer's
advanced speaker technology. Perfected to the nth degree, the CS'66A series
boast much improved frequency response and distortion characteristics not
to mention their high»performance at maximum input. There is absolutely no
limitation on the size or output of the amplifier to which they can be con-
nected. Capable of reproducing richer bass, clearer mid-range and finer high
sounds, the CS-66A speaker system is sure to bring you years of enioyable
listening pleasure,

FEATURES
25cm (i O) Cone-ty pe Woofer

Already renowned for its outstanding quality and performance, the FB cone
paper has been further improved for use in the 25cm (10) woofer. The surface
of the cone paper has been specially treated and thoroughly tested to ensure
excellent frequency response and transient characteristics.

16cm (6.5") Cone-type Mid-range Speaker

The mid-range speaker also employs a cone made of the new, improved FB
paper together with an aluminum vapor-coated center cap in special polyester-
type synthetic resin Therefore, this speaker lends itself to the reproduction of
crystal-clear tonal quality, free from distortion.

Network

Designed to ensure that an optimum frequency response is driven by every
speaker. incorporating carefully selected elements and a compensation circuit,
designed to limit woofer impedance and guarantee ideal transmission character-
istics as well as good transient characteristics.

Attractive, Weii Designed Enclosures

Complete with attractive front grilles, these beautifully crafted oiled walnut
enclosures have a fine furniture finish. Double Saran panels give an added
depth to the external appearance of the speaker units, As all four side surfaces
are finished, the enclosures can be placed in either the vertical or horizontal
position. The front grilles can be readily detached to reveal the surface of
the deluxe baffles.
