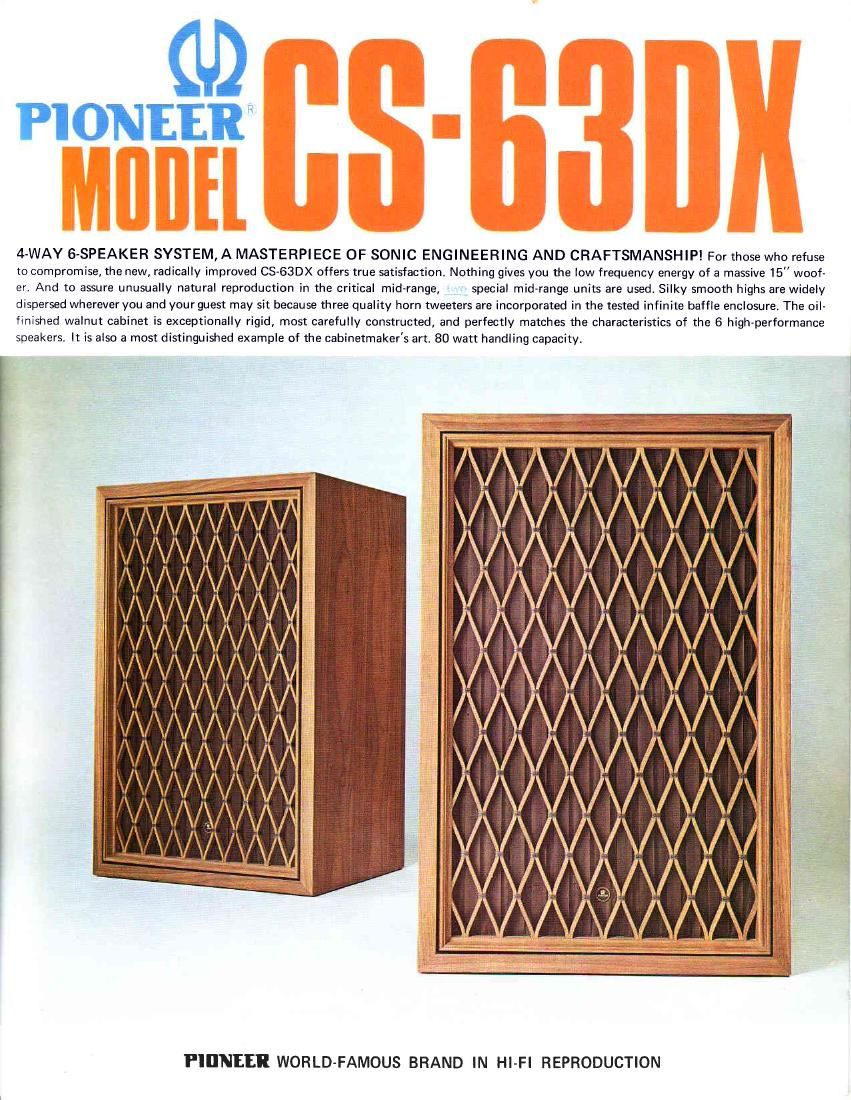

Pioneer cs 63 dx brochure

Page 1

pt0ltttn ]tl0[t1 G$-0$il1 A truly great speaker system can only be achieved by meticulously balancingthree elements, speakers, crossover network and cabinet. All three of these elements are of the finest quality. Each has Pioneer's three decades of experience behind it. The result is a startlingly smooth responsefrom20Hz-22,OOOHz.TheCS-63DXworkssuperblywithanygoodamplifierorreceiver; however, particularlyexcellentresults are obtained with Pioneer's SX-1500T and SX-1000TD. FEATURES OF THE CS-63DX WOOFER To reproduce low frequencies, large masses of air must be moved. There is no other way. Obviously an 8" speakercannot move as much air as a 15" woofer. Pioneer's woofer features special cone paper and a heavy magnet with more total flux than just about any other unit on the market today. Superb transient response results. MID-RANGE For better,wider dispersion in the mid-range, and for a perfect match with the three exponential horn tweeters, we have used two mid-range units. Featuring a roll-edge cone for smooth linear excursions, these units have been carefully integrated into the total system for just the right balance. TWEETERS Many systems use only one tweeter; some use two, but Pioneer uses three for very good reasons. A tweeter that gives satis- factory dispersion usually cannot reproduce the extremely high frequencies efficiently. So Pioneer designed a horn tweeter for moderate highs, and two super tweeters for the critical ultra-highs. The result is more highs with a wider dispersion than has been possible until now. TONE CONTROL No room is quite like any other room. That is why a tone control is essential. By using this control to compensate for the particular acoustics of your room. optimum high fidelity reproduction is achieved. Pioneer's controls are unusually sophisti- cated. There are two, one for high and one for mid-range units. Each control has three positions, normal, increase, decrease. These con- trols are, in fact, desirable audio refinements. CROSSOVER NETWOR K This expensive crossover network assures that each speaker handles only those frequencies for which it was specially designed. From woofer to mid-range there is a gradual attenuation of 6 dB per octave, but for mid-range and tweeters there is a sharp 12 dB per octave attenuation. CABINET This master-crafted cabinet is fully lined with fiber glass and rigidly constructed to eliminate undesirable reflections and spurious resonance. Of inf inite baffle design, the enclosure is finish- ed in oiled walnut and features a most attractive grille. Here is a spacious enclosure that you can proudly place in any room. 120 o 110 z 100 ulcD qn z-- (n '" uJ 60L20 SPECIFICATIONS OF THE CS.63DX Enclosure Infinite baffle type Mounted Speakers 1 5" Woofer 5" Mid-range x 2 F10rn tweeler 100 200 400 600 1 ,000 2,ooo FREOUENCY lN Hz Maximum Power Input Crossover Frequency Dimensions 4,000 6,000 i0,000 20,000 40,000 80 watts 77O Hz,3300 Hz, 12,OOO Hz 28-318"{H )x 1 8-713" (W)x 1 3-1 /1 6"{ D) 720(H )x480(W) x332(D) mm Net Net 63 1 bs / 28.5 kg Net 80'l bs /363k9 I mpedance Frequency Response 20 to 22,OOO Hz Horn super tweeter x 2 Weight 8 ohms I MID HIGH \ RMAL >< 6 WKffiruKKW- PI IINEEN, ELE,GTRONIG E URFONATI IIN 1 5-5, 4-chome, Ohmori-nishi, Ohta-ku, Tokyo, Japan 6912-OK6 Printed In Japan PIONEER ELECTRONIC (EUROPE) AG. 59, Forch Strasse 8032 Zurich, Switzerland PIONEER ELECTRONICS U.S.A. CORPORATION 140Smith St., Farmingdale, L.1., N.Y. 11735, U.S.A.
