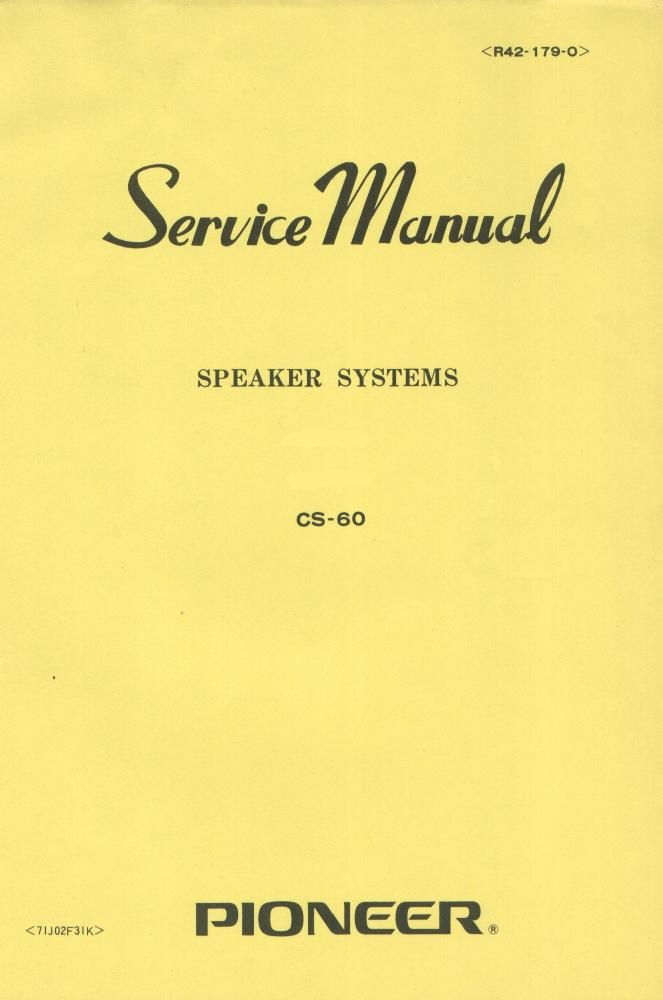

Pioneer cs 60 service manual
This is the 7 pages manual for pioneer cs 60 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cs 60 service manual (Ocr-read)
Page 2
65-40 - 50 - ED
3.SPECIFICATIONS OF CS-60
Enclosure
Speakers
Woofer
Mid-range
Tweeter
Input impedance
Frequency range
Sensitivity
Maximum input power
Crossover frequency
Lows. . Mid»ranges
Mid-ranges. . . Highs
External dimensions
Weight
NOTE: Specifications and the dESign subject to possmle
modification without notice due to improvements.
Bass-reflex type
12 in (30cm) cone type
5 in (12cm) cone type
3 in (7.7cm) cone type
852
40 to 20,000 Hz
94dB/W at 1m distance
60W
1,100Hz
6,200HZ
25(H) x 23-1/2(W) x 11~1/3(D) in.
630(H) x 419(W) x 290(D) mm
39|b (17t5kg)
V10
00
i
E
90 /
J
\_.
j:
73;
fl
RESPONSE IN dB
80 /
70
60
200 500 LOOO
FREQUENCY IN H1
1000 5.000 10 000 20000
50
IMPEDANCE IN [I
m
o
/'
// \/\~_/
20 50
500 1 000 2 000
FREQUENCV IN H1
100 200 5 000 10.000 20.000
