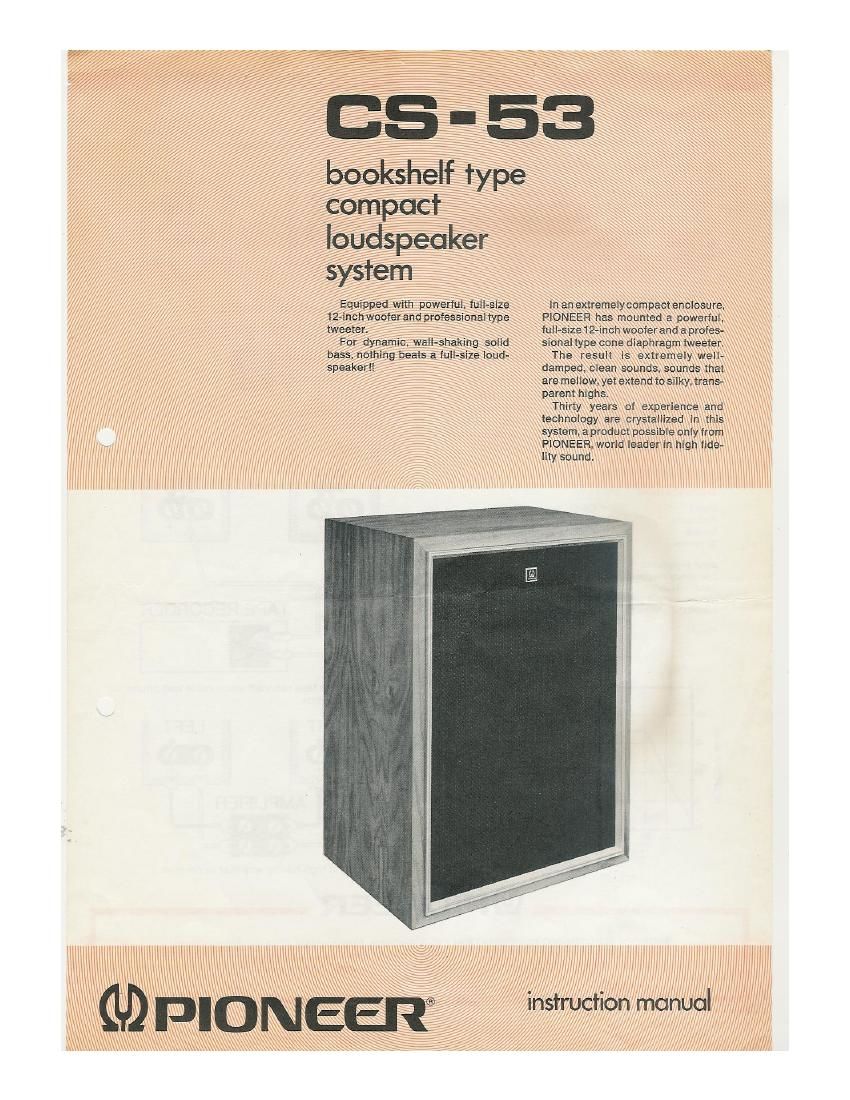

Page 1

/ Equipped with powerful, full-size
124mm woofer ang professional type
tweeter. ,, '

,For dynamic:wa]l;shakiag solid _

' bass, nothing beatsa lull-size laud-
' speaker '

in an extremelycompacl enclosure,
PlONEEFi has mounted a powerful,
full-size12-inch woofer and a profes-
sional type cone diaphragm tweeter.

The result is extremely well-
damped, clean sounds. sounds that
are mellow, yet extend to silky. trans-
parent highs.

Thirty years of experience and
technology are crystallized in this
system, a product possible only from
PIONEER, world leader in high tide-
lity sound.

Page 2

GD PIONEER" -

. Takes up little space. I CONNECTIONS
Extremely compact in 5329- the C353 may be placed Connections tothe amplifierortape recorder are made
either on end or horizontally, wherever convenient: on as shown in the following diagrams.

a bookshelf or a side table.

. Uses professional quality components.

The 08-53 uses a full-size 12-inch woofer, capable of
handling the largest signal. This woofer is equipped
with an oversize magnet assembly,comparable to those
used for 15-inch units. Thetweeter is a cone diaphragm
type, featuring excellent dispersional characteristics,
. Performance easily equals full»size systems.
Abundant volume. plus superb tonal quality, are pro-
vided. Performance is particularly outstanding in the
important mid-ranges and bass ranges. There is virtu-
ally no distortion even at extremely high signal peaks,
and frequency response is smooth and extremely wide.
. Ideal companion unit for tape recorder.

A very handy connecting system is provided. in addition
to a terminal strip providing the usual twin terminals,
3 phone jack is also provided for convenience in con-
necting to a tape recorder.

. Rich, luxurious finish.

This great new loudspeaker system excels not only in
performance but also in appearance. it features a
rich yet subdued oiled walnut finish showing the hand-
some grain of the wood, accented by the clean alumi-
num sash mounted on the front of the enclosure.

When using a connecting cable mounting a phone plug
on one end and lugs on the other.

SPECIFICATIONS

Model CS>53
Enclosure Bass reflex type
System 2 way, 2 speaker
Speakers Woofer 12 inch
Tweeter cone»type 3-1/2 inch
Input impedance 8 l2
Frequency response 45-20,!)00 Hz
Sensitivity 94 ohm
Maximum input power 40 w
External dimensions 22-7/16" (H) x 16-1/2" (W)
X 11-13/16" (D)
Weight 281b, 11 oz,
11» Connecting to a tape recorder-using cable with phone
plugs on both ends.
100 J
a JV/\Wx/LW
2 an
LLI
w
E 80 05-53
m /
E m /
so

50 "W 200 SW LOUD 2,000 5,000 "1,000 20.000
FREQUENCY IN Hz

Connecting to high fidelity amplifier or receiver.
