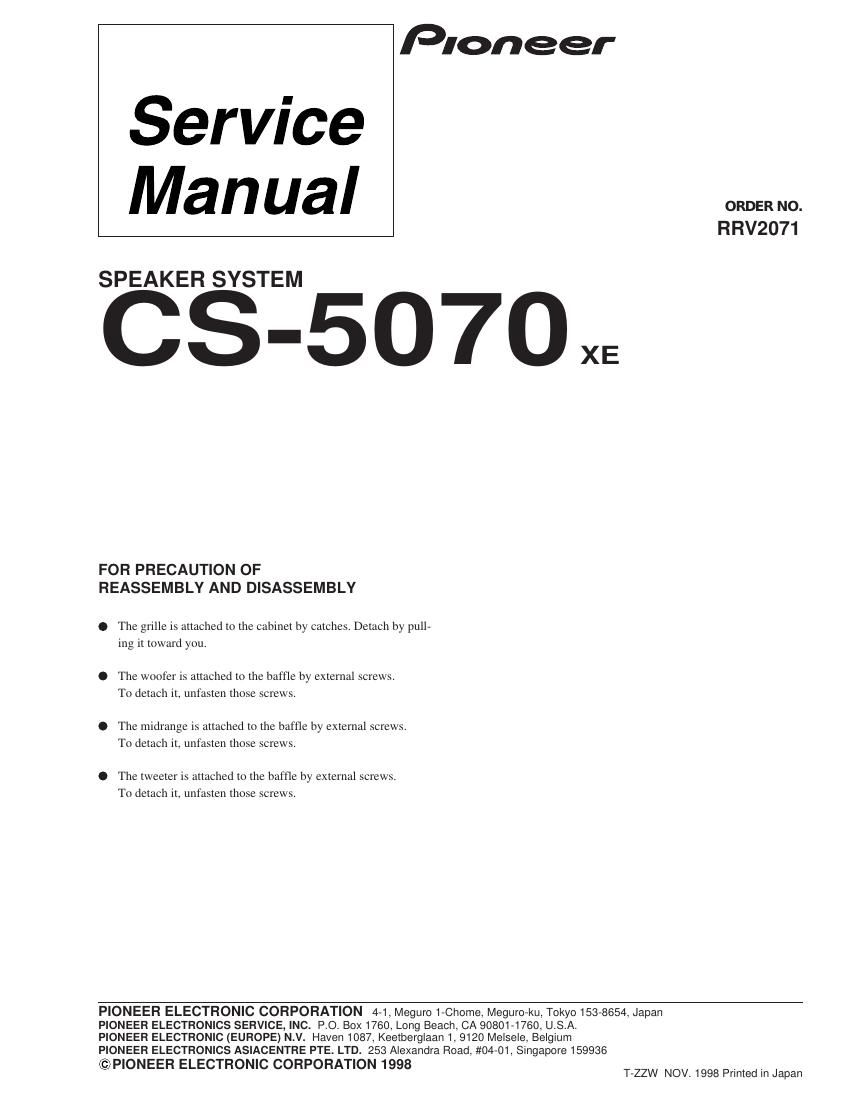

pioneer cs 5070 service manual

Extracted text from pioneer cs 5070 service manual (Ocr-read)


Page 1

2Mark No. Description Part No. Network ASSY (FRWN-145) SCHEMATIC DIAGRAM For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. CS-5070 Grill ASSY FRMG-154 Network ASSY FRWN-145 Badge FRAM-031 NSP Model Label FRAN-239 Input Terminal Board FRKX-013 NSP Duct 60 FRNK-051 Acoustic Absorbent FRMV-031 Catch FRNK-015 Speaker (Woofer) R20EC70-53E Speaker (Mid-range) P77CP60-52D Speaker (Tweeter) P66AP45-80F Screw (for Woofer) FRBA-010 Screw (for Mid-range and Tweeter) RA81-5*25Speaker Wire FRDD-034 Operating Instructions FRRD-120 NSP Warranty Card FRRY-026 Protecter (for Top) FRHA-040 Protecter (for Bottom) FRHA-041 Protection Mat S5 FRHC-011 Packing Case FRHG-224 Woofer Mid-range I NPUT Red Green White Black White Tweeter 1.8µF Black 0.82µF
