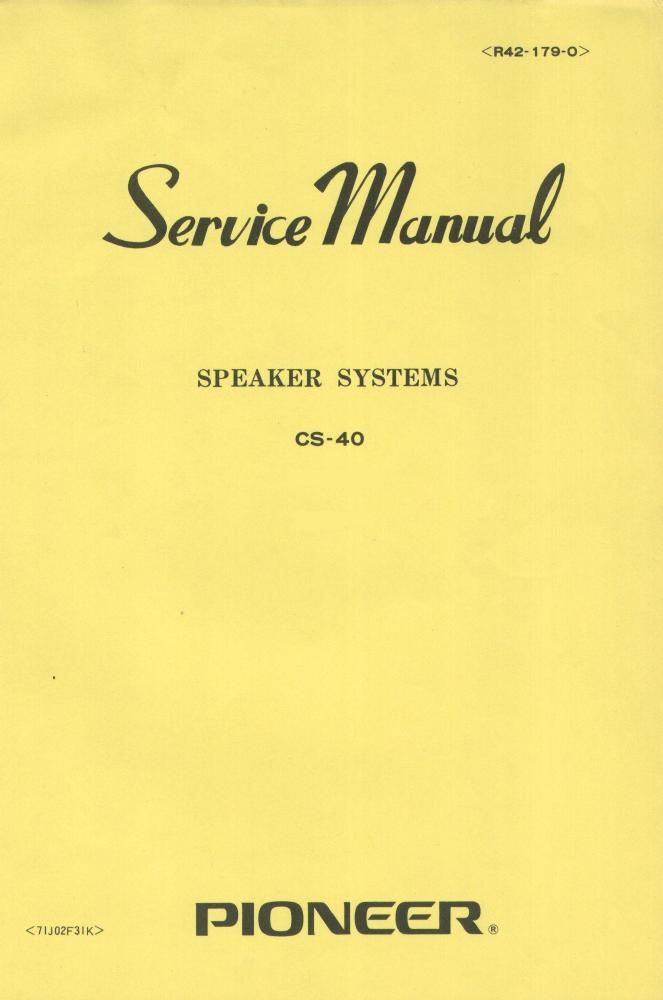

Pioneer cs 40 service manual
This is the 7 pages manual for pioneer cs 40 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cs 40 service manual (Ocr-read)
Page 2
cs-4o - so - so
1. SPECIFICATIONS OF cs-4o
Enclosure Bass-reflex type
Speakers
Woofer 10 in. (250m) cone type
Tweeter 3-5/8 in. (9.4cm) cone type
Input impedance 89
Frequency range 50 to 20,000Hz
Sensitivity 93 dB/W at 1m distance
Maximum input power 30W
Crossover frequency
Lows , . . Highs 3,800 Hz
External dimensions 22-7/16(H) x 13(W) x 11-1/32(D) in.
570(H) x 330(W) x 280(0) mm
Weight 19|b 13oz (9kg)
NOTE: Specifications and the design subject to possible
modification without notice due to improvements
I10
I00
[w
so / _ 1 . \
80
70 /
60
b
RESPONSE IN d9
20 50 I00 700 500 I 000 2 000 5 000 I0 000 20 000
FREQUENCY IN H]
20 50 00 200 500 1,000 2 000 5 000 10 000 20 000
FREQUENCY IN H1
