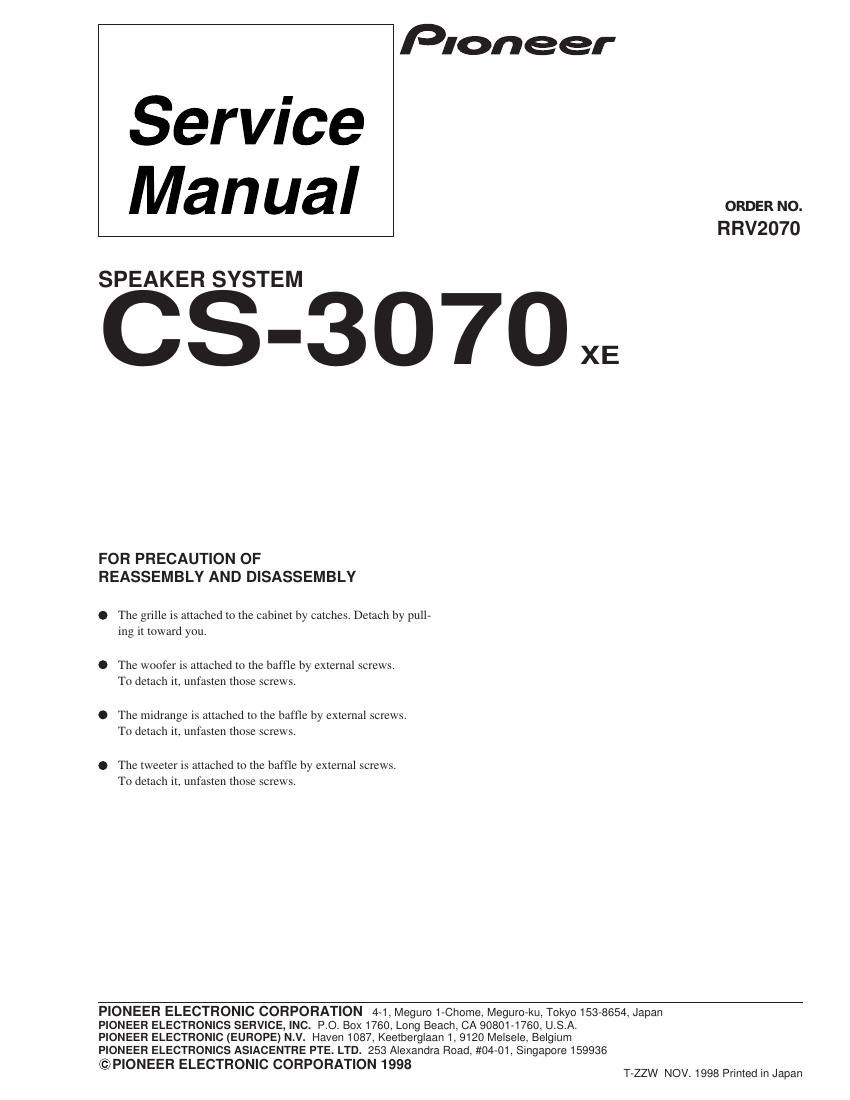

Pioneer cs 3070 service manual
This is the 2 pages manual for pioneer cs 3070 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cs 3070 service manual (Ocr-read)
Page 1
2Mark No. Description Part No. Network ASSY (FRWN-144) SCHEMATIC DIAGRAM For Packing Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: PARTS LIST Mark No. Description Part No. CS-3070 Grill ASSY FRMG-153 Network ASSY FRWN-144 Badge FRAM-030 NSP Model Label FRAN-238 Input Terminal Board FRKX-013 Catch FRNK-015 Speaker (Woofer) A18EC70-59F Speaker (Mid-range) P77CP60-56F Speaker (Tweeter) P66AP45-81F Screw (for Woofer) FRBA-011 Screw (for Mid-range and Tweeter) FRBA-010Speaker Wire FRDD-036 Operating Instructions FRRD-119 NSP Warranty Card FRRY-025 Protector FRHA-017 Protection Mat S5 FRHC-011 Packing Case FRHG-223 Woofer Mid-range I NPUT Red GreenWhiteBlack White Tweeter 2.2µF Black
