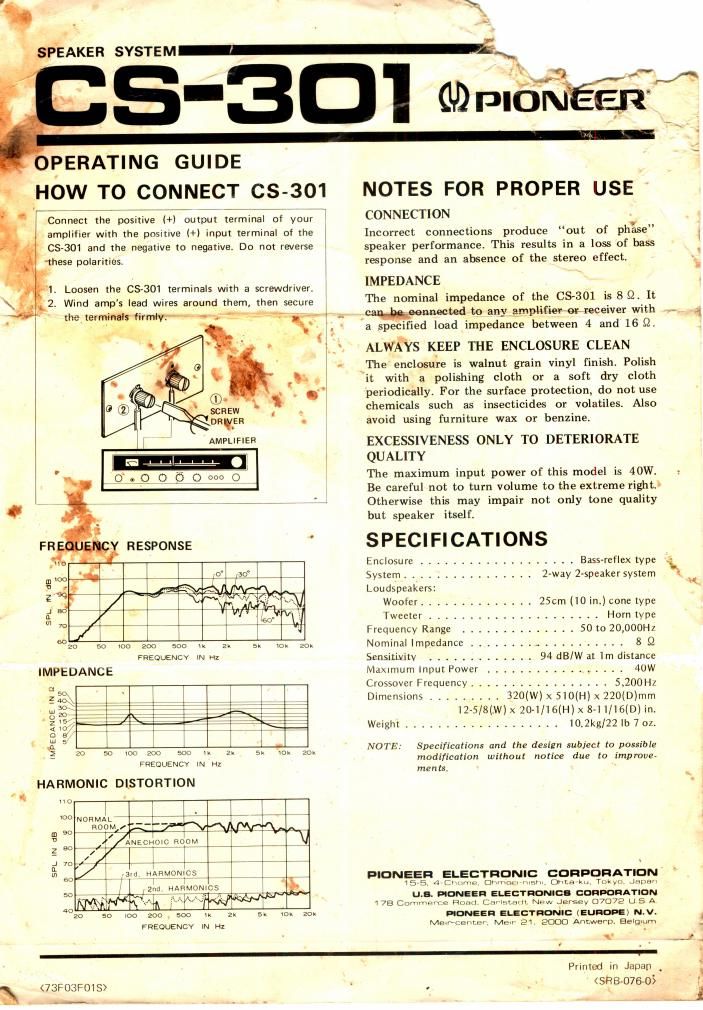

Page 1

EAKER SYSTEM

Connect the positive (+l output terminal of your 1
amplifier with the posltive (+i input terminal of the
CS»301 and the negative to negative. Do not reverse
these polarities.

1. Loosen the (28-301 terminals with a screwdriver.
2. Wind amp's lead wires around them, then secure
the term firmthV-vvm-

;
l

AMPLIFIER

RESPONSE
l

M

ioo zoo 500 \K 2x 5x «3x 2m
FREQUENCY lN Hz

20 so 00 200 500 \k 2x 5x you 20x
FREQUENCY IN Hz

HARMONIC DISTORTION

* no
'00 NORMAL
ROOM/ --

m 90 /
"1 ANECHUIC ROOM
2 so -7
J 70 40
n l
vi

73m HARMONICS
so . ; 1
,2m. HAHMONICS

so

ea 50 I00 200, soc m 2k 5« \0\ 20k

FREQUENCY lN Hz

% <73F03FOIS>

5-301 «In-6

NOTES FOR PROPER use

CONNECTION

. .i 'v ..
Incorrect connections produce out of phase
speaker performance. This results in a loss of bass
response and an absence of the stereo effect.

IMPEDANCE

The nominal impedance of the 05-301 is 8 S2. It
nnected to 11er _ampl~i£ier»or»receiver with

'a specified load impedance between 4 and 16 £2.

ALWAYS KEEP THE ENCLOSURE CLEAN

The enclosure is walnut grain vinyl finish. Polish

it with a polishing cloth or a soft dry cloth

periodically. For the surface protection, do not use
chemicals such as insecticides or volatiles. Also
avoid using furniture wax or benzine.

EXCESSIVENESS ONLY TO DETERIORATE
QUALITY

The maximum input power of this model is 40W.
Be careful not to turn volume to the extreme right)
Otherwise this may impair not only tone quality
but speaker itself.

SPECIFICATIONS

Enclosure ................... Bass-reflex type

System. . . . 2-way 2-speaker system
Loudspeakers:
Woofer. . . . 250m (l0 in.) cone type
Tweeter . . Horn type
Frequency Range 50 to 20,000Hz
Nominal Impedance , . . . ............ 8 $2
SensitLviLV ......... 94 dB/W at 1m distance
MXmmUm Input Power ........... 40W
Crossover Frequency ................. 5.200Hz
Dimensions ......... 320(W)x5]0(H]x220(D)mm
I2-5/8(.W) X 20-1/16(H) x 8-] I/I6(Dl in,
Weight ................... 10.2kg/22 lb 7 02.
NOTE: Specifications and the design subject to possible

modification without notice due to improve-
ments.

PIONEER ELECTRONIC CORPORATION
4 Churwve Clhvnuti rush on xii Tokyn Jauan

u.E. PIONEER ELECTRONICS cnRRDRATIDN
1 7a CoerveIcE mum. Car lsLarIl New Jersey 07072 u s A

PIONEER ELECTRONIC (EUROPE) N.V.
MerrcerLev'. Mew 21 2000 Antwerp Belgium

.
Printed in Japan .
