Pioneer cs 22 brochure

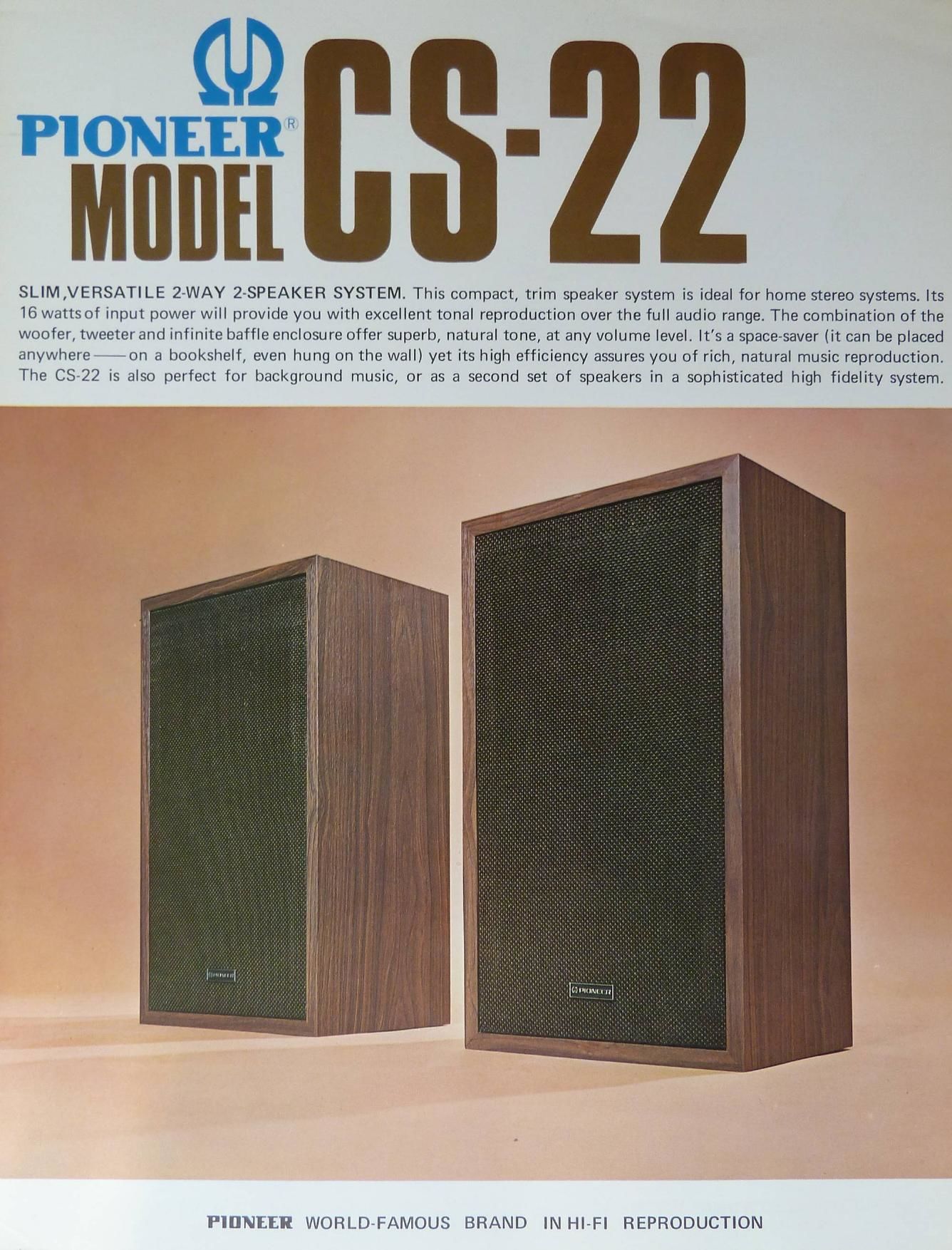

Page 1

Pl ONEER

MMHES'ZZ

SLIM,VERSATILE 2-WAY 2-SPEAKER SYSTEM. This compact, trim speaker system is ideal for home stereo systems. Its
16 watts of input power will provide you with excellent tonal reproduction over the full audio range. The combination of the
woofer, tweeter and infinite baffle enclosure offer superb, natural tone, at any volume level. Its a space-saver (it can be placed
anywhere -on a bookshelf, even hung on the wall) yet its high efficiency assures you of rich, natural music reproduction.
The CS-22 is also perfect for background music, or as a second set of speakers in a sophisticated high fidelity system.

PIUNEER WORLD-FAMOUS BRAND IN H|~F| REPRODUCTION

Page 2

PIIIIIIIII MIIIIII

FEATURES OF THE CS-22

POWER HANDLING CAPACITY

Despite the compact, bookshelf type enclosure, the 06-22 handles
up to 16 watts of power input for true hi-fi stereo reproduction
over the entire audio frequency range. It is practically distortion-
free even at the highest power levels, while maintaining an excellent
efficiency of 95 dB/w. Comparable to higher priced, larger speaker
systems, the CS-22 is perfect for a home stereo system or as an ex-
tension speaker for background music.

LOUDSPEAKERS

The 08-22 incorporates a newly developed 8" high performance,
cone type woofer. Well-matched with the infinite baffle enclosure,
it provides smooth bass response down to 55Hz. The CS-22 includes
a tweeter with excellent dispersion characteristics, and delivers trans-
parent and clear mid-range and highs up to 20,000Hz, with fine
separation.

CABINET _

Finished on all sides in synthetic resin webdgtaifi, the 05:22 will
enhance the attractiveness of any room. Carefully chosen absor-
bent material lines the inside of the cabinet for optimum aéoustical
balance. The unit may be placed vertically or horizontally, and is
provided with a mounting bracket for hanging on a wall. Compact
size permits easy positioning on a bookshelf.

VERSATILE USE

This is a true high fidelity, easy-listening speaker system (free from
distortion and listening fatigue) in a most attractive cabinet. The
CS-22 is highly recommended for smaller home stereo systems, as
an extension speaker for high quality stereo systems, andrfor back-
ground music.

'/.-- mwftLZ-Jc'ufl,fi MA
ggo / \'-/ \Al L\ _"\A" 11W ~ .R n - ~\ . .
Z // \v W" QA. " v 1} Nsy'fi \ 1 I.
4 l q A I' "
§80 / VJ \iq-i f. '40
I ' . .
o . ' .
$ // \' i M/ \q A"
c I l
E 70 4, J] L.
2 ' _ .-30°
60 h . \:eo°
20 50 100 200 500 1000 2000 5000 10000 20000 40000
FREQUENCY IN Hz
40
U}
E30
0
E
UJAJ
/ \
81: C /
u. \ .7
g V
72 30 100 200 500 1000 2000 5000 10000 20000 40000
FREQUENCY IN Hz
SPECIFICATIONS OF THE CS-22
Enclosure Infinite baffle type Maximum Power Input 16 watts
Mounted Speakers 8" cone type woofer Crossover Frequency 6000 Hz
2-3/4" cone type tweeter Dimensions lO3/4"(W) x 18-1/2"(H) x 8-1/4"(D)
Impedance 8 ohms 270(W) x 470(H) x 210(D) mm
Frequency Response 55 to 20,000 Hz Weight 10.3 lbs. /4.7 kg
Sensitivity 95 dB/w

Pl ONEER'

PI [INEER ELECTRDNII} [:flRPflRATIflN
15-5, 4-chome, Ohmori-nishi, Ohta-ku, Tokyo, Japan

6912 0K2 Printed in Japan

PIONEER ELECTRONIC (EUROPE) AG.
59, Forch Strasse, 8032 Zurich, Switzerland

PIONEER ELECTRONICS U.S.A. CORPORATION
140 Smith St, Farmingdale, L.l., NY. 11735, U.S.A.
