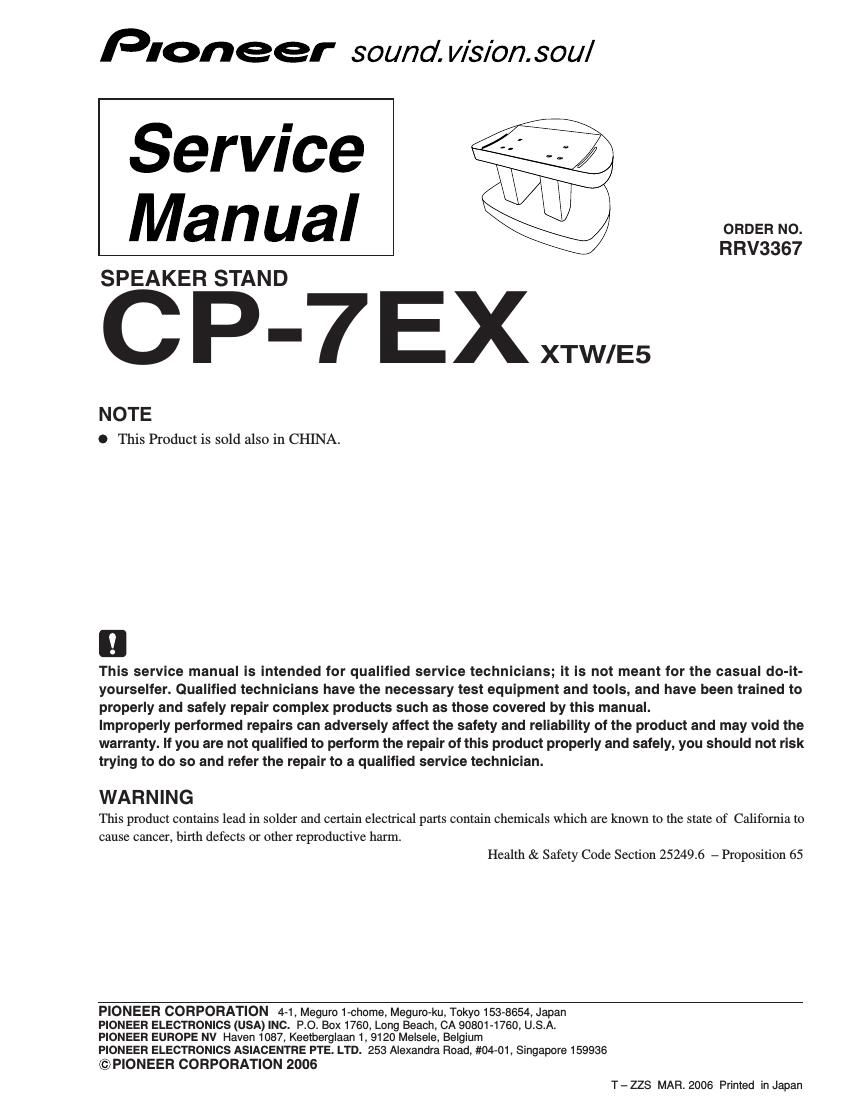

Pioneer cp 7 ex service manual
This is the 3 pages manual for pioneer cp 7 ex service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cp 7 ex service manual (Ocr-read)
Page 1
2 1 23 4 1234 C D F A B E CP-7EX 1 Accessory Set (7, 17) 18 4 2 6 3 9 20 5 Spike Set (8, 16, 11) Screw Set (8, 10, 12, 13, 14, 15) 19 [ PACKING ] Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: 1. PARTS LIST
Page 2
3 1 234 1 23 4 C D F A B E CP-7EX Mark No. Description Part No. PACKING and SPEAKER STAND Parts List Mark No. Description Part No. 1Protector (Top) SHA6101 2Protector (Middle) SHA6102 3Protector (Bottom) SHA6103 4Protection Sheet SHC6048 5Protection Sheet SHC6049 6Protection Sheet SHC6050 7Polyethylene Bag S2 SHL1265 8Polyethylene Bag S0 SHL1412 9Packing Case SHG6211 10 Screw (Bind head, M6 x L55) SBA6051 11 Spike (with attached Nut) SBA6053 12 Screw (Bind head, M6 x L40) SBA6054 13 Screw (Bind head, M6 x L60) SBA6058 14 Spring Washer SBE6007 15 Washer SBE600816 Spike Base SLA1057 17 Operating Instructions SRD6057 (English, French, Spanish, Simp-Chinese, Trad-Chinese) NSP 18 Speaker Support - - - - - - NSP 19 Stand Base Plate - - - - - - NSP 20 Stem - - - - - - NSP 9 Packing Case SHG2763 Packing Case SHG6211 NSP Label for Packing Case - - - - - - NSP 21 Model Label SAN6389 for China Model Only Mark No.Description Part No. [ SPEAKER STAND ] 21 Speaker Support Bottom View (18) (19) (20)Screw slots for securing speaker 55 mm Black (SBA6054) 40 mm Black Please note that sunken screw holes are provided in the speaker support. (SBA6051) 12 Nut Spike 16 1110 (SBA6058) Speaker base 15Fastening nuts 13 60 mm Black 14Screw slots for securing speaker Attaching a speaker to the stand
