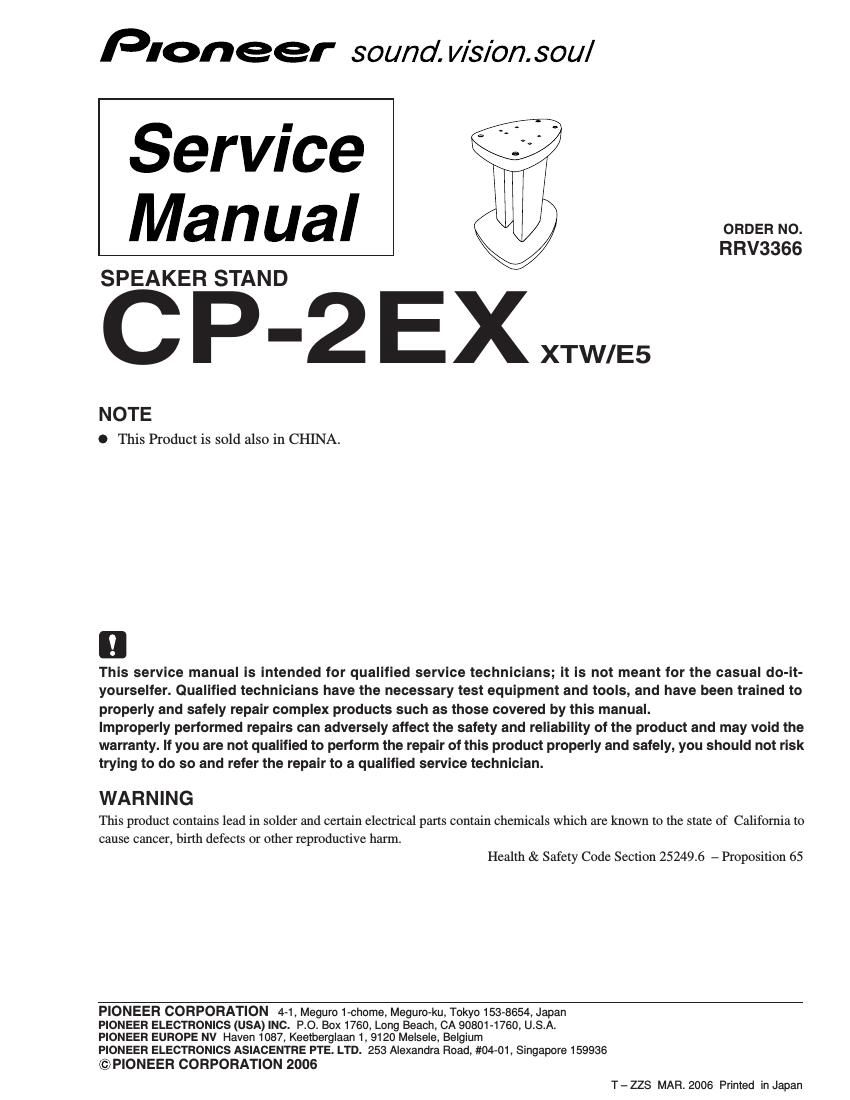

Pioneer cp 2 ex service manual
This is the 3 pages manual for pioneer cp 2 ex service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cp 2 ex service manual (Ocr-read)
Page 1
2 1 23 4 1234 C D F A B E CP-2EX 7 (x4) 20 (x4) 1 13 13 104 3 621 21 Screw Set ( 9, 11, 12, 14, 15, 16, 17 ) 2 2 19 19 5Accessory Set (8, 18) 5 [ PACKING ] Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. NOTES: 1. PARTS LIST
Page 2
3 1 234 1 23 4 C D F A B E CP-2EX Mark No. Description Part No. 1Protector (Bottom) SHA6095 2Protector (Middle) SHA6096 3Protector (Top) SHA6097 4Protector SHA6098 5Protection Sheet SHC6044 6Protection Sheet SHC6045 7Protection Sheet SHC6046 8Polyethylene Bag S2 SHL1265 9Polyethylene Bag S0 SHL1412 10 Packing Case SHG6210 11 Screw (Bind head, M5 x L36) SBA6048 12 Screw (Bind head, M5 x L62) SBA6050 13 Spike (with attached Nut) SBA6053 14 Screw (Bind head, M6 x L40) SBA6054 15 Spring Washer SBE6005 PACKING and SPEAKER STAND Parts List 16 Washer SBE6006 17 Spike Base SLA1057 18 Operating Instructions SRD6056 (English, French, Spanish, Simp-Chinese, Trad-Chinese) NSP 19 Speaker Support - - - - - - NSP 20 Stem - - - - - - NSP 21 Stand Base Plate - - - - - - Mark No. Description Part No. NSP 10 Packing Case SHG2762 Packing Case SHG6210 NSP Label for Packing Case - - - - - - NSP 22 Model Label SAN6388 for China Model Only Mark No.Description Part No. [ SPEAKER STAND ] Screw holes for securing speaker (19) (21) 22 (20) When using speaker spikes: (SBA6050) Speaker base 16 Speaker spike baseFastening nut 15 12 62 mm BlackScrew holes for securing speaker When not using speaker spikes: (SBA6048) Speaker base 16Fastening nut 11 36 mm Black Screw holes for securing speaker 15 Speaker Support Bottom View 14 40 mm Black 14 Nut Spike 13 1740 mm Black Please note that sunken screw holes are provided in the speaker support.(SBA6054) (SBA6054)
