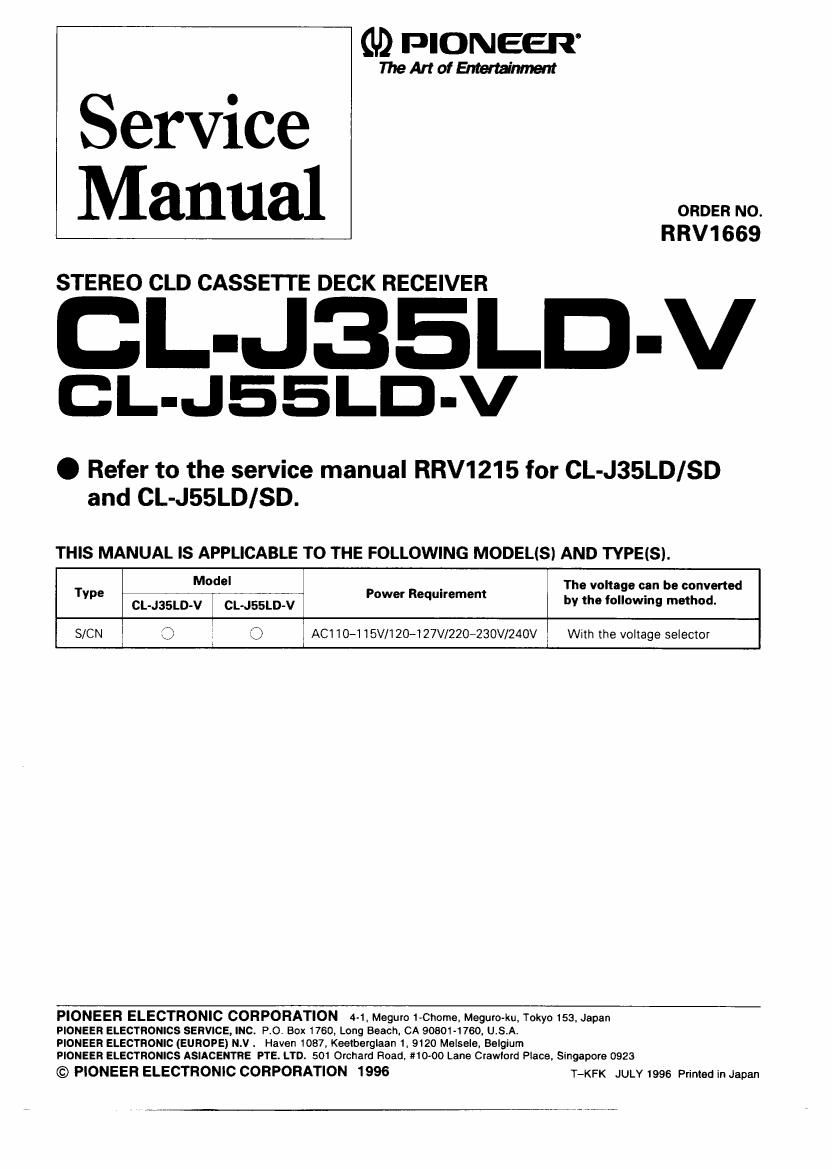

Page 1

0,9 PIONEER

MeAflofEnwru'nmem

Service
Manual

RRV1669

STEREO CLD CASSETTE DECK RECEIVER

L-J35LD-V

CL-JEELD-V

O Refer to the service manual RRV1215 for CL-J35LD/SD
and CL-J55LD/SD.

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODELIS) AND TYPEIS).

Type 0 Power Requirement The voltage can be convened
CL-J35LD-V CL -J55LD-V by (he followmg mefllod.
S/CN Q I Q AC110-1 15W120-427V/220-23OV/240V With the voltage selector

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome. Meguro-ku. Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE, INC. PD. 80): 1760, Long Beach. CA 90301-1760, USA

PIONEER ELECTRONIC (EUROPE) N.V . Haven 1087, Keelberglaan 1. 9120 Melsele Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane CrawIard Place. Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1996 T-KFK JULY 1996 Primed in Japan

Page 2

CL-J35LD-V, CL-J55LD-V

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES :

0 Parts marked by NSP " are generally unavailable because they are not in our Master Spare Pam List

0 The A mark found on some component parts indicates the importance of the safety factor afrhe part. Therefore, when replacing.
be sure to use parts of identical designation.

0 Parts marked by " © " are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable

CL-J35LD-V/S/CN and CL-JSSLD/SD have the same construction except for the following:
Part No.
Mark Symbol & Description Remarks
CL-d35LD/SD CL-JJSLD-VISICN

lNTF Unit Not used RWX1125 No. 1 (Refer to SCH-2F)
Video CD Module Not used RD-DVKOIZ-P No. 2 (Refer to SCH-1F)
Capacitor (C4) CEAS470M10 CEASOXUMSO For SPDR Unit, Refer to SCH-3F
Lead Card 301 Not used ROD1373 No, 3

NSF Connector Assy 5? 020) Not used RKP1758 No. 4

NSF Connector Assy 6? 030) Not used RKP1759 Not 5

NSF Connector Assy 7P 0 10) Not used RKP1760 No. 6

NSF Lead Wire Not used ZWNP1007626-0-05A Not 7
Diode (Dl. D2) Not used 135254 No. 8
VCD Barrier Not used REC1286 No, 9
VCD Guard Not used REC1287 No. 1|]

NSP VCD Angle Not used RNE1903 No. 11

NSP Label Not used RRW1263 No. 12
Screw Not used BBZSUPOGOFMC Not 13
Binder Not used ZCA-SKBQOBK No. 14
Operafing lnstniclions (Chinese) Not used RRD1187
Packing Case RHG1658 RHGl779

Note: The numbers in the remarks column correspond to the numbers on the exploded views.

I FOR CL-J55LD-VISICN
CL-J55LD-V/S/CN and CL-J55LD/SD have the same construction except for the following:

Part No.
Mark Symbol 8i Description Remarks
CL-J55LD/SD CL-J55LD-V/SICN
INTF Unit Not used RWX1125 No. 1 (Refer to SCH-2F)
Video CD Module Not used RD-DVKOlZ-P No. 2 (Refer to SCH-1F)
Capacitor (C4) CEAS470M10 CEASDIOMSO For SPDR Unit. Refer to SCH-3F
Lead Card 301 Not used 1 RDD1373 No. 3
NSF Connector Assy 51 L120) Not used RKP1758 No. 4
NSF Connector Assy SP (130) Not used RKP1759 No. 5
NSF Connector Assy 7P (110) Not used RKP176O No. 6
NSF Lead Wire Not used ZWNP1007626-0~05A No, 7
Diode (D1. DZ) Not used 138254 No. 8
VCD Barrier Not used REC1286 Not 9
VCD Guard Not used REC1287 Not 10
NS? VCD Angle Not used RNE1903 No, 1]
NSF label Not used RRW1266 No. 12
Screw Not used BBZSOPOBOFMC i No. 13
Binder Not used ZCA-SKBSOBK i No 14
Operating lnstnictions (Chinese) Not used RRD1187
Packing Case III-161659 RHGl782

Note: We numbers in the remarks column correspond to the numbers on the exploded views.

2
