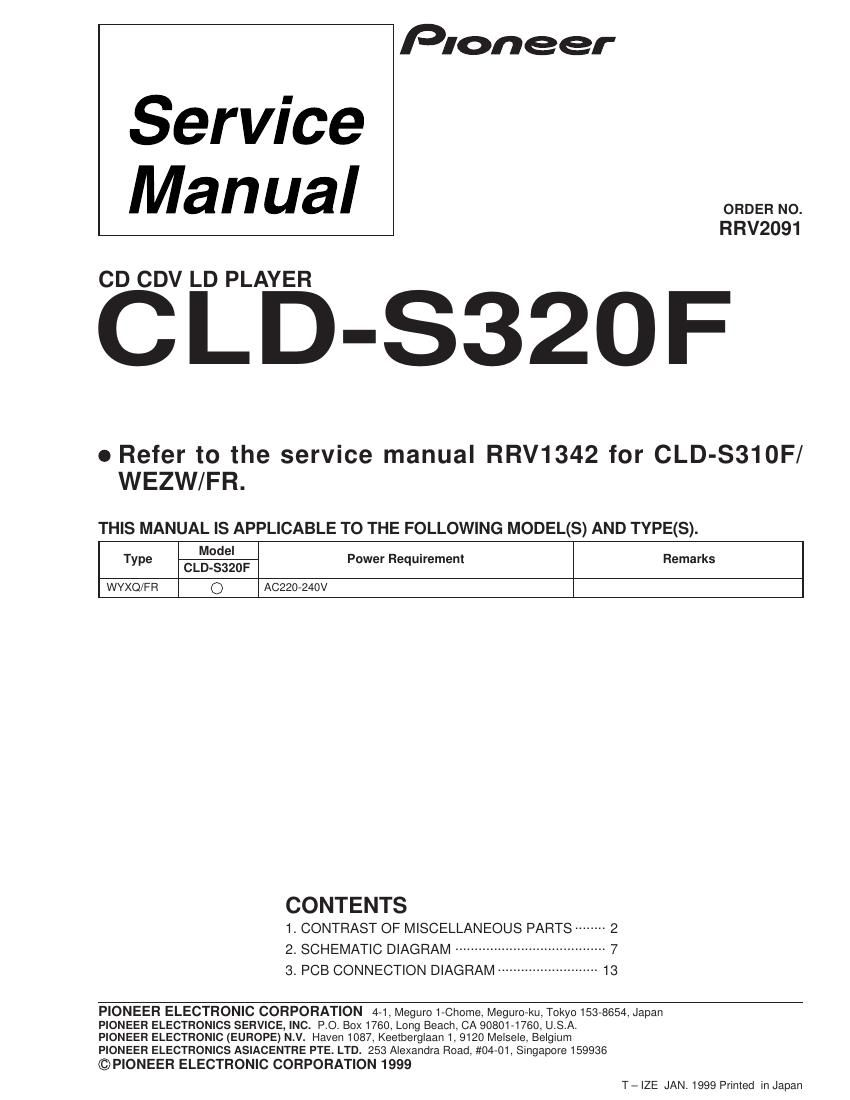

Page 1

Service
Manual

CD CDV LD PLAYER

Pioneer

ORDER NO.
RRV2091

CLD-S320F

0 Refer to the service manual RRV1342 for CLD-S310F/

WEZW/ FR.
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type CLg?::;OF Power Requirement Remarks
WYXQ/FFI O A0220-240V
CONTENTS

1. CONTRAST OF MISCELLANEOUS PARTS -------- 2

2- SCHEMATIC DIAGRAM ..........................

3. PCB CONNECTION DIAGRAM .......................... 13

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. BOX1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 MeleeTe, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

©P|ONEER ELECTRONIC CORPORATION 1999

T- IZE JAN. 1999 Printed in Japan

Page 2

CLD-S320F

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES: .Parts marked by NSP" are generally unavailable because they are not in our Master Spare Parts List.
.The A markfound on some componentparts indicates the importance ofthe safetyfactor ofthe part.
Therefore, when replacing, be sure to use parts of identical designation.
.Reference Nos. indicate the pages and Nos. in the service manualfor the base model.
0 When ordering resistors, first convert resistance values into codeform as shown in thefollowing examples.
Ex] When there are 2 eflective digits (any digit apartfrom 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
5609 -> 56X10' -> 561.
47kQ -> 47X10' -> 47_
0.5 52 -> R50
I Q -> 1R0
Ex] When there are 3 eflective digits (such as in high prec 'on metalfilm re.
5.62k $2 -> 562 X 10' -) 5621 .......................................

tors ).

..... RN1/4PC @ F

I CONTRAST TABLE
CLD»SS2OF/WYXQ/FR and OLD-8310F/WEZW/FR are constructed the same except for the following :
R f Part No.
Mark N?)- Symbol and Description OLD-$310F OLD-$320F Remarks
I lWEZW/FR /WYXQ/FR
2.1 PACKING
NSP P4-1 Caution (EW) VRM1027 Not used
P4-4 Operating Instructions (French) VRC1041 VRC1070
P4-5 Protector VHB1007 Not used
NSP P4-8 Dry Cell Battery (R6P, AA) VEM-013 VEM1010
P4-9 Remote Control Unit VXX2268 Not used
P4-9 Remote Control Unit (CU-CLD155) Not used VXX2614
P4-12 ProtectorB VHB1012 Not used
P4-13 Mirror Mat Sheet 223-007 DHL1006
NSP P4-14 Warranty Card ARY7008 ARY7022
P4-15 Packing Case VHG1450 VHGI752
NSP Cord Bag Not used VEG-012 tor AC Power Cord
Pad L Not used VHA1193 *1 No. 1
Pad Fl Not used VHA1194 *1 No.2

2.2 EXTERIOR AND DISC TRAY SECTION

P6-1 Bonnet S VXX2117 VXX2351
P6-7 CD Tray VNK2687 VNK3007
NSP P6-1O LD Tray VNK2686 VNK3188
P6-12 Door Spring VBH1247 VBH1248
P6-13 Door Holder VNL1658 VNL1697
P6-15 Door Shaft VLL1455 Not used
NSP P6-15 Door Shaft Not used VLL1466 *2
P6-16 CD Door VNK2791 Not used
NSP P6-16 CD Door Not used VNK3316 *2
P6-17 Damper Assy VXA1999 Not used
P6-18 Tray Panel VNK2801 VNK3315
P6-19 Disc Pad VEC1682 (x12) VE61682 (x14)
P6-20 Tray Assy-S VXX2171 Not used
NSP P6-22 Caution Label (F) VRW-328 Not used
CD Door Assy Not used VXA2237 *2
2.3 TOP VIEW SECTION
NSP P9-15 Panel Holder VNA171O VNA1840
