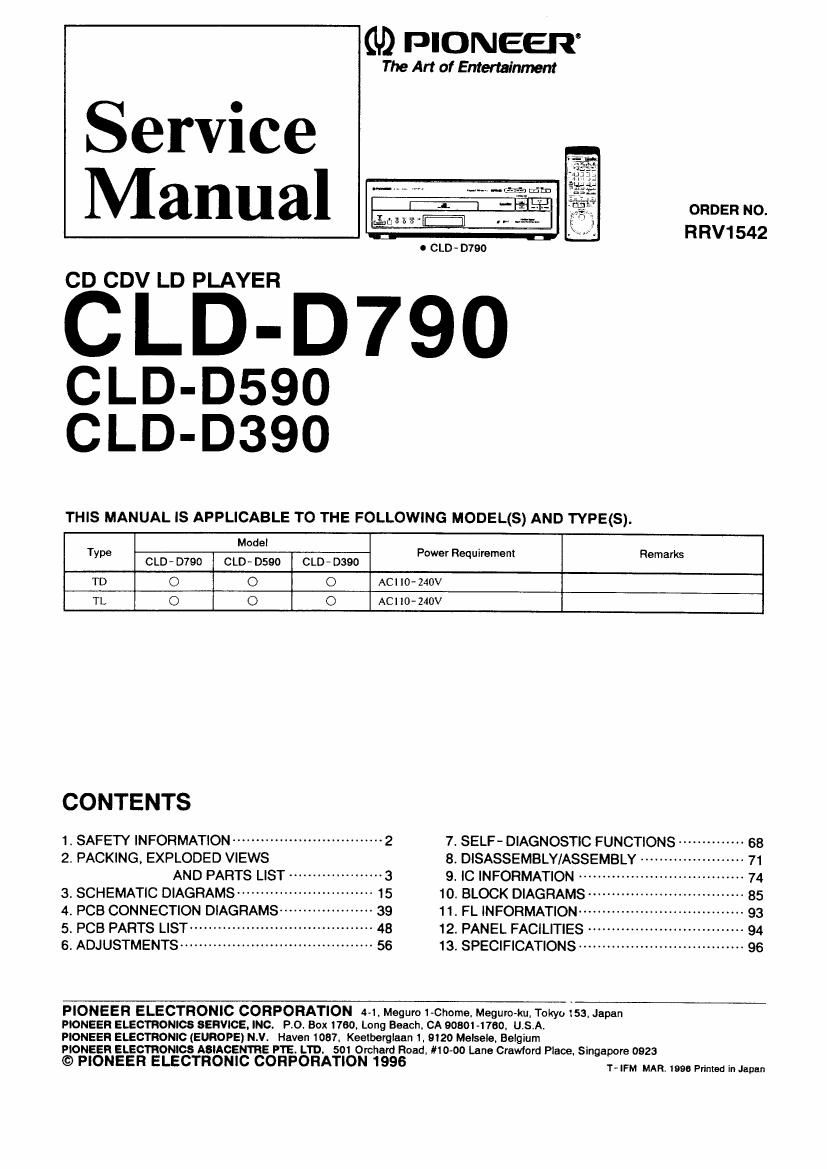

Page 1

(1,9 PIONEER

The Art of Entertainment

Service
Manual

ORDER NO.
RRV1542
- OLD-D790
CD CDV LD PLAYER
C L D - D 5 9 0
C L D - D 3 9 0
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model _
Type OLD-D790 CLD~D590 CLDF D390 Powemequ'mmem Remarks
TD 0 O O ACllO-Z40V
TL 0 O O ACIIO-240V
CONTENTS
1 SAFETY INFORMATION -------------------------------- 2 7. SELF- DIAGNOSTIC FUNCTIONS -------------- 68
2. PACKING, EXPLODED VIEWS 8. DISASSEMBLY/ASSEMBLY ~ 71
AND PAFITS LIST ------------------ 3 9. IC INFORMATION ------------ -~ 74

---85
-~93

3. SCHEMATIC DIAGRAMS ~~~~~~~~~~~~~ -~ 10 BLOCK DIAGRAMS
4. PCB CONNECTION DIAGRAMS -------------------- 39 11. FL INFORMATION -----------------------

5. PCB PARTS LIST ....................................... 48 12 PANEL FACILIT'ES ..................... ... 94
6. ADJUSTMENTS ......................................... 55 13A SPECIFICATIONS ................................... 96

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome. Meguro-ku Tokyo I53. Japan

PIONEER ELECTRONICS SERVICE. INC. P.04 BOX 1730. Long Beach. CA 90801-1700, USA.

PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1. 9120 Melsele. Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lana Crawford Place. Singapore 0923

© PIONEER ELECTRONIC CORPORATION 1996 TvIFM MAR. was Pfimm In Japan

Page 2

CLD- D790, CLD - D590, CLD- D390

1. SAFETY INFORMATION

iVAROI 7- ~ WARNING' ~-7
AVATTAESSA JA SUOJALUKITUS DEVICE INCLUDES LASER DIODE WHICH
OHITETTAESSA OLET ALTTIINA EMITs INVISIBLE INFRARED RADIATION
NAKVMATTOMALLE LASEHSATEILVLLE WHICHIS DANGEROUS To EVES.THEREIS
ALA KATSO SATEESEEN A WARNING SIGN ACCORDING To PICTURE
LASER I INSIDE THE DEVICE CLOSE TOTHE LASER LASER
Kuva I 0,005. PICture I
RSEL Lasersaleilyn Wavnlng Sign loI
UASEXIELIG LASERSTRALING VED ABNING musme'kk' ase' 'ad'a'm"
NAe SIKKEFIHEDSAFBRYDERE En LIDE AF _.-_.MPORTANT
FUNKTION UNDGA UDSAETTELSE FOR THIS PIONEER APPARATUS CONTAINS
STRALING, LASER or CLASS I
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLV
VAHNWG, ___________ INSTRUCTED PERSON.
OSVNLIG LASERSTRALNING NAR DENNA
DEL AR OPPNAD OCH SPARREN
AR URKOPPLAD. BETRAKTA EJ STRALEN - LASER 005 CMRACTER'STCS -

,, -_.~_k MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780 785 nm

LABEL CHECK (for TL Type)

CAUTION
INVISIBLE LASER CLASS 1

RADIATION WHEN OPEN, LASER PRODUCT
AVOID EXPOSURE raw-12a
TU BEAM PRWIme

- Additional Laser Caution -
I. The ONIOFF statuses oi the side-A/B detection switch

(TURN switch on the TNSB assy ), slider-position detection
switches ( INNER and OUYER on the PKSE assy ) and
loading-status detection switches (SW 1. 2 and 3 on the
LMSB assy] are detected by the microprocessor (ICIOI in
the MOTHER assy). To permit the laserdiooe to oscillate. it
is required to set the side-AID detection switch tor side A
status (TRN : OFF) and the slider-position detection
switcheslor the LD ACTIVE status (INNER : OFF, OUTER I
OFF). and to set the bedingatatus detection switches tor tilt
neutral stale (SWI : OFF, SW2 : OFF. SW3 : ON ), As long
as these requirements are not satisfied, the laser diode will
not oscillate. When the requirements are met in any way. the
laser diode can oscillate. The laser diode oscillation will
continue if pin 13 ol ICBOI is shorted to GND or the emitter
and collector of 0834 are shorted each other (lault
cond'nion ) in MOTHER essyr
In the test mode * , the laser diode oscillates when the
microprocessor detects a PLAY signal, or when the PLAY
key is pressed (SIM ON in the FLKY assy for Cu) - D790
or 8206 ON in the KEYB assy lor CLD - 0590 and CLD -
0390). with the above requirements satislied.

2. When the cover is open, close viewing through the obIective
lens with the naked eye will cause exposure to a Class 1
laser beam.

* : Reler to page: 5: and 50.
