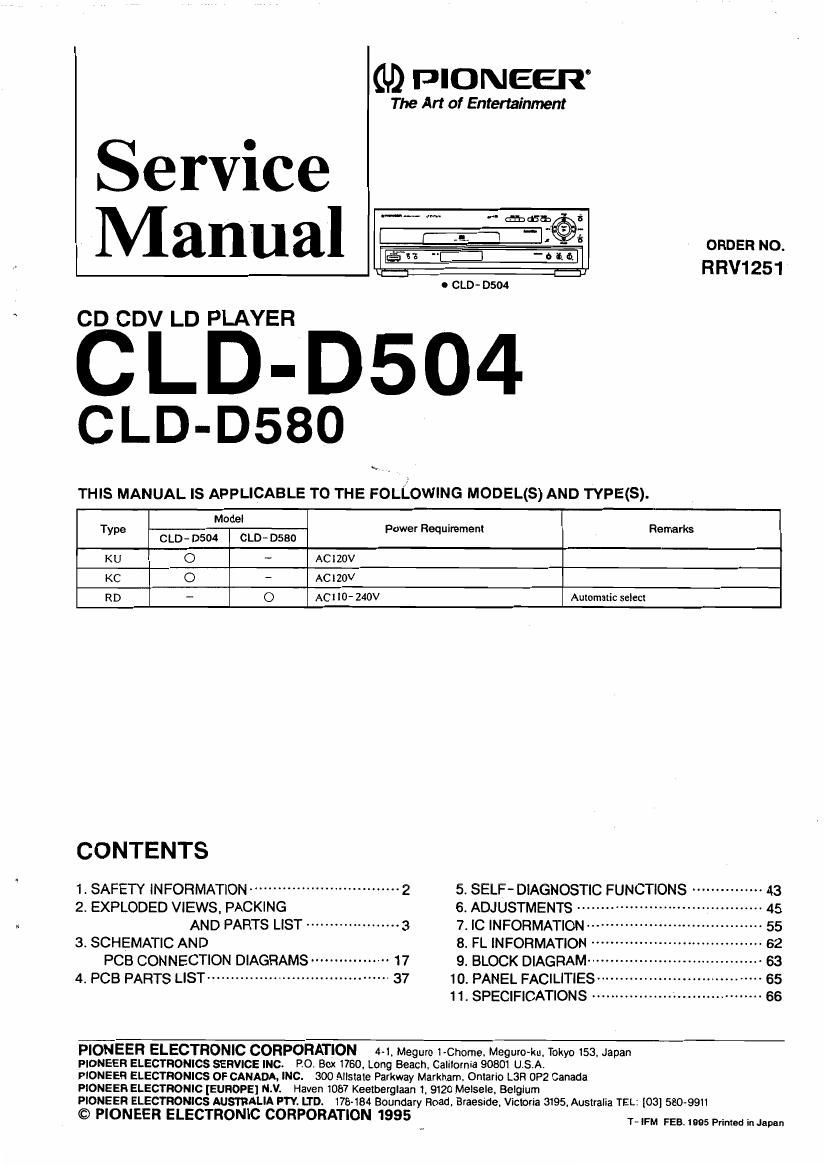

Pioneer CLD D504 Service Manual

Page 1

GI) PIONEER

The Art of Enlerminment

Service

Manual

"' mbcmb@s
- I;

ORDER NO.

LI

CD CDV LD PLAYER

.4 RRV1251

0 CLD- 0504

CLD-D504

CLD-D580

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model

Type Power Requirement

CLD- 0504 CLD-DSBO
KU O - AC IZOV

KC 0 - ACIZOV

RD - O ACIIO- 240V

Remarks

Automatic seIecl

CO NTENTS
1. SAFETY iNFORMATION ................................ 2
2. EXPLODED VIEWS, PACKING
AND PARTS LIST .................... 3
3. SCHEMATIC AND
PCB CONNECTION DIAGRAMS ----------------- 17
4' PCB PARTS L'ST ....................................... 37

5. SELF- DIAGNOSTIC FUNCTIONS ------------- 43
6. ADJUSTMENTS ....................... .

7. IC |NFORMATION ..................................... 55
8_ FL INFORMATION .................................... 62

9. BLOCK DIAGRAM-'-
10. PANEL FACILITIES'
1 1. SPECIFICATIONS -----------------

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku. Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC, PO. Box 1760, Long Beach. Calilornia 90801 USA,

PIONEER ELECTRONICS OF CANADA. INC. 300 AllsIale Parkway Markham. Ontario LSR 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9I20 Melsele. BeIgium

PIONEER ELECTRONICS AUSTRALIA PTV. LTD. 178-184 BoundaIy Road, Bmesude. Victoria 3195, AUSIraIia TEL: [03] 580-9911

© PIONEER ELECTRONIC CORPORATION 1995

T-IFM FEBI was Printed in Japan

Page 2

CLD - D504, CLD - 0580

1. SAFETY INFORMATION

This service manual is Intended for qualified service technicians; It is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools. and have been
trained to properly and safely repair complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void
the warranty. if you are not qualified to perform the repair of this product properly and safely. you should

not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead In solder used In this product is listed by the California Health and Welfare agency as I known reproductive toxicant which
may cause birth defects or other reproductive hann (California Health 8i Safety Code. Section 25249.5).

When eervicing or handling circuit board: and other componente which contain lead in colder. avoid unprotected skin contact with
the solder. Also, when soldering do not inhale any smoke or fume produced.

NOTICE
(FOR CANADIAN MODEL ONLY)

Fuse symbols -EB~ (fast operating fuse) and/or {EE- (slow operating fuse) on PCB indicate that replacement pans

must be of identical designation.

REMAROUE
(POUR MODELE CANADIEN SEULEMENT)

Les symboles do fusible a (fusible de type rapide) etlou JEE- (fusible de type lent) sur CCI indiquent que les

pieces cie remplacement doivent avoir Ia meme designation.

'lFOR USA MODEL ONLY)

1.SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe, conduit. etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals.
screwheads. metal overlays. control shaft. etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5mA.

Reading should

o
Leakage not be above
0.5mA

Device
under
test

Test all
exposed metal
surfaces

O Also test with
em reversed
(Using AC adapter
plug as required)

AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A P0-
TENTIAL SHOCK HAZARD AND MUST BE CORv
RECTED BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.

2.PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob
tained by using replacement components rated for vol-
tage. wattage, etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.

Electrical components having such features are

identified by marking with a A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one. shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.

Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or ad-
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
