Pioneer cldd 580 service manual

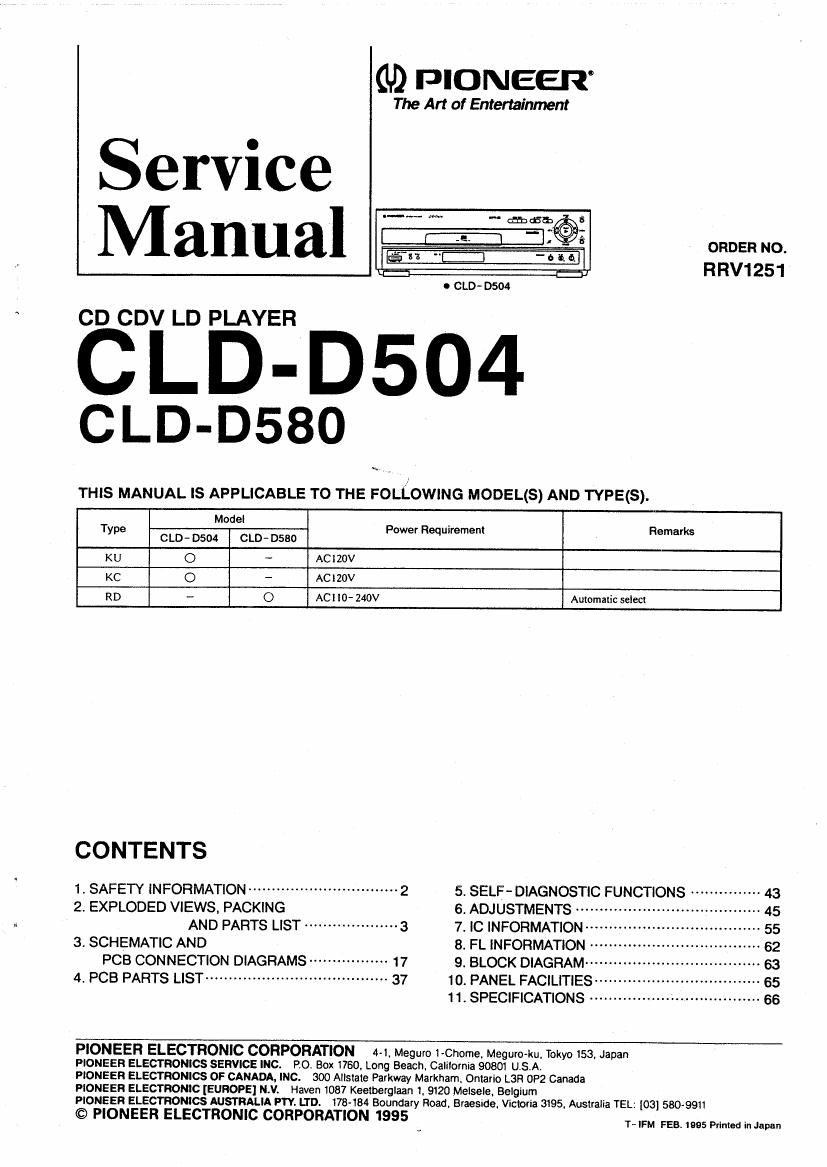

Page 1

GD PIONEER

The Art of Entertainment

Service
Manual ORDER no.

u RRVI251

0 CLD- D504

CD CDV LD PLAYER

CLD-D504

CLD-D580

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Model
T Power R uiremem Remarks
ypa CLD- 0504 CLD- DSBO eq

KU 0 ~ ACIZOV

KC 0 - AC1 20V
RD - O ACI IO- Z40V Automatic select

CONTENTS
1 ' SAFETY INFORMATION ................................ 2 5 SELF- DIAGNOSTIC FUNCTIONS ............... 43
2 EXPLODED VIEWS, PACKING 6. ADJUSTMENTS .......................... 45
AND PARTS LIST .................... 3 7 [C INFORMATION ........................ 55
3. SCHEMATIC AND 8. FL INFORMATION ....................... 52
PCB CONNECTION DIAGRAMS ---------------- 17 9. BLOCK DIAGRAM-~-- 63
4' PCB PARTS LIST ....................................... 37 10. PANEL FACILITIES. A. 65

11. SPECIFICATIONS ................................. 55

PIONEER ELECTRONIC CORPORATION 4-1, Meguro I-Chome, Meguro-ku Tokyo 153. Japan

PIONEER ELECTRONICS SERVICE INC. P.O. Box 1760. Long Beach, CaliIornia 90801 USA.

PIONEER ELECTRONICS OF CANADA, INC. 300 AllsIate Parkway Markham, Ontario L3H 0P2 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele. Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178- 184 Boundary Road, Eraeside4 VicIoria 3I95, AustraIia TEL: [03] 580-9911
© PIONEER ELECTRONIC CORPORATION 1995

T» IFM FEBI 1995 Printed in Japan

Page 2

CLD - D504, CLD - 0580 |

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it Is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.

improperly performed repairs can adversely affect the safety and reliability of the product and may void
the warranty. if you are not qualified to perform the repair of this product properly and safely, you should

not risk trying to do so and refer the repair to a qualified service technician.

WARNING

Lead In solder used in this product is listed by the California Health and Welfare agency as I known reproductive toxicent which
may ca use birth defects or other reproductive harm (Califomla Health 8: Safety Code. Section 25249.5).
When servicing or handling circuit board: and other components which contain lead in colder. avoid unprotected skin contact with
the solder. Also, when soldering do not inhale any smoke oriumes produced.

NOTICE
(FOR CANADIAN MODEL ONLY)

Fuse symbols {as (fast operating fuse) and/or IE!- (slow operating fuse) on PCB indicate that replacement parts

must be of identical designation.

REMAROUE
(POUR MODELE CANADIEN SEULEMENT)

Les symboles de fusible 133- (fusible de type rapide) et/ou JEE- (fusible de type lent) sur CCl indiquent que les

pieces de remplacement dcivent avoir Ia meme designation.

IFOR USA MODEL ONLY)

1.SAFETY PRECAUTIONS

The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK

Measure leakage current to a known earth ground
(water pipe. conduit. etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays. control shaft. etc). Plug
the AC line cord of the appliance directly into a 120V
AC 60H: outlet and turn the AC power switch on. Any
current measured must not exceed 0.5mA.

a Reading should
Leakage not be above
current 05"

Devrce
under
test

Test all
exposed metal
surfaces

69 Also test with
plug reversed
(Using AC adapter
plug as required)

Earth
ground

AC Leakage Test

ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE iNDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.

2. PRODUCT SAFETY NOTICE

Many electrical and mechanical parts in the appli-
ance have special safety related characteristics. These
are often not evident from visual inspection nor the
protection afforded by them necessarily can be ob-
tained by using replacement components rated for vol~
tage. wattage, etc. Replacement parts which have
these special safety characteristics are identified in
this Service Manual.

Electrical components having such features are

identified by marking with a A on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in
the parts list in this Service Manual, may create shock,
fire, or other hazards.

Product Safety is continuously under review and
new instructions are issued from time to time. For
the latest information, always consult the current
PIONEER Service Manual. A subscription to, or ad
ditional copies of, PIONEER Service Manual may be
obtained at a nominal charge from PIONEER.
