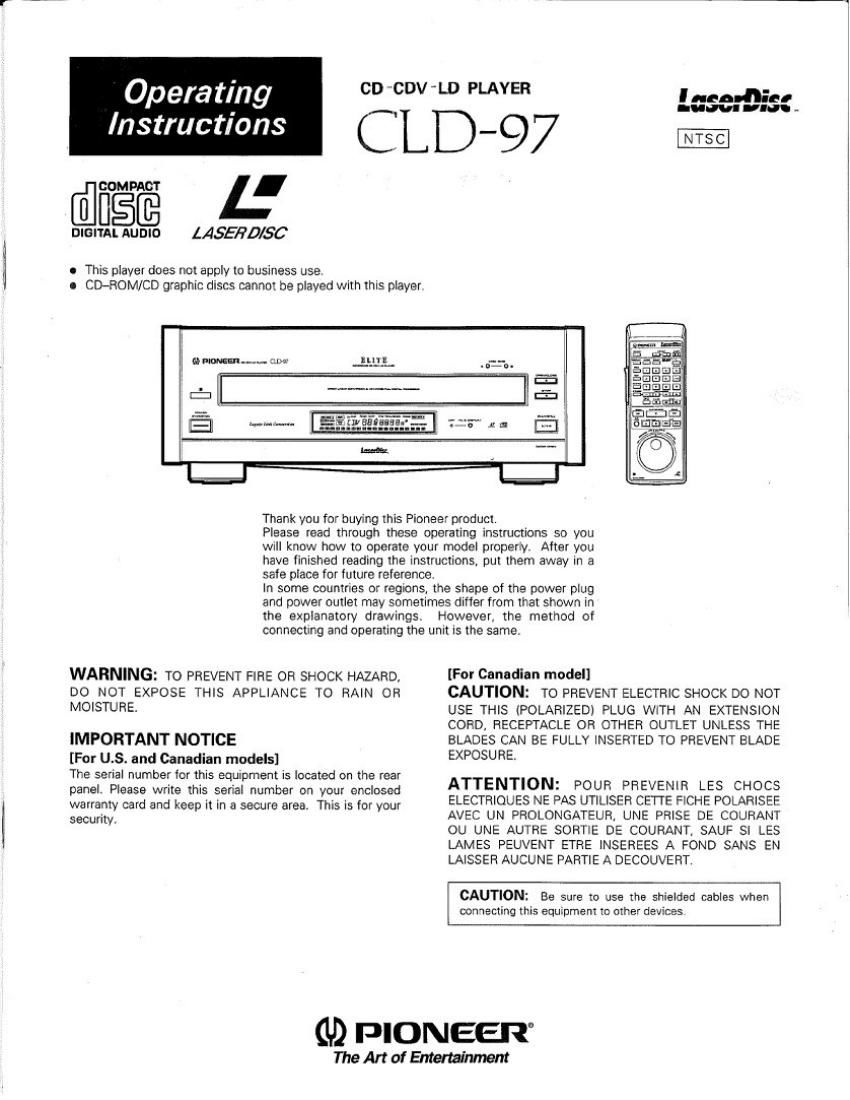

Operating co CDV-LD PLAYER £353.93.
Instructions CLD_97
comm '
Klee L50

0 This player does not apply to business use,
0 CD-ROM/CD graphic discs cannot be played with this player

i am... over Jung :0.
______ _ - IEE:
iii _ .t-_-7-_1
EH on-.. 7 a A a [E '

Thank you for buying this Pioneer product.

Please read through these operating instructions so you
Will know how to operate your model properly. After you
have finished reading the instructions. put them away in a
safe place for future reference

In some countries or regions, the shape of the power plug
and power outlet may sometimes differ from that shown in
the explanatory drawings. However, the method of
connecting and operating the unit is the same.

WARNING: TO PREVENT FIRE 0R SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE To RAIN on
MOISTURE.

IMPORTANT NOTICE

[For US. and Canadian models]

The serial number for this equrpment is located on the rear
panel, Please write this serial number on your enclosed
warranty card and keep it in a secure area. This is for your
security.

[For Canadian model]

CAUTION: To PREVENT ELECTRIC SHOCK DO NOT
USE THIS (POLARIZED) PLUG WITH AN EXTENSION
CORD, HECEPTACLE OR OTHER OUTLET UNLESS THE
BLADES CAN BE FULLY INSERTED To PREVENT BLADE
EXPOSURE,

ATTENTION: POUR PFIEVENIR LES CHOCS
ELECTRIOUES NE PAS UTILISER CETTE FICHE POLARISEE
AVEC UN PROLONGATEUR, UNE PRISE DE COURANT
ou UNE AUTRE sorme DE COURANT. SAUF sr LES
LAMES PEUVENT ETRE lNSEREES A FOND SANs EN
LAISSER AUCUNE PARTIE A DECOUVERT.

CAUTION: Be sure to use the shielded cables when
oomecting this equipment to other devices

GD PIONEER"

TheArroIEImimnam

Page 2

IMPORTANT

The lightning flash with arrowhead, within an equilateral
triangle, is intendedto alert the user to the presence oi
uninsulated 'dangarous voltage within the product's
enclosure that may be of suflicient magnitude to
constitute a risk oi electric shock to persons.

CAUTION

RISK OF ELECTRIC SHO
DO NOT OPEN

CAUTION:

TO PREVENTTHE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACKI, NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature acoompe nying the appliance.

READ INSTRUCTIONS , All the safety and operating
instmctions should be read before the appliance is
operated,

RETAIN INSTRUCTIONS-The saiety and operating in-
structions should be retained for future reference,

HEED WARNINGS~AIl warnings on the appliance and
in the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS - All operating and use in
structions should be iollawed.

CLEANING r Unplug this video product from the wall
outlet beiore cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth forcleaning.

ATTACHMENTS - Do not use attachments not recom-
mended by the video product manufacturer as they
may cause hazards,

WATER AND MOISTURE - Do nut use this video pro
duct near water - for example, near a bathtub.
wash bowl, kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool, eta

ACCESSORIES - Do not place this video product on an
unstable cart, stand, tripod. bracket, or table. The
video product may fall, causing serious iniury to a
child or adult, and serious damage to the op
pliance. Use only with a cart, stand, tripod, bracket,
or table recommended by the manufacturer, or
sold with the video product, Any mounting of the
appliance should lallow the manufacturer's in-
structions, and should use a mounting accessory
recommended by the manufacturer,

CART , An appliance and cart combination should be
moved with care. Ouick stops, excessive lame, and
uneven surtacas may causatha appliance and cart
combination to overturn.

VENTILATION , Slots and openings in the cabinet are
provided for ventilation and to ensure reliable
operation of the video product and to protect it
irorri overheating. These openings must not be
blocked or covered, They should never be blocked
by placing the video product on a bed, sofa, rug, or
other similar surface. This video product should
never be placed near orovor a radiatcror heat rega
ister. This video product should not be placed in a
built-in installation such as a bookcase or rack un-
less proper ventilation is provided orthe manufaLr
turer's instmctions have been adhered to.

POWER SOURCES - This video product should be
operated anly Irorn tha type of power source indi-
cated on the marking label. ll you are not sure or the
type of power supply to your home, consult your
appliance dealer or local power company, For
video products intended to operate from battery
power, or other sources, refer to the operating in-
structlons.

POWER-CORD PROTECTION .
Pawarsupply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against iham, Pay particular atten-
tion to cords at plugs, convenience receptacles.
and the point where they exit rrarn the appliance.

POLARIZATION - This video product is equipped with

a polarized altemcting current line plug (a plug hav-
ing one blade widerthan the other). This plug Will flt
into the power outlet only aria way. This is a satatv
feature. lryou are unable to insert the plug fully into
the outlet, try reversing the plug. Ifthe plug should
still rail to tit. conuact your electrician to replace your
obsolete outlet. Do not detaat tna safety purpose of
the polarized plug.

LIGHTNING - For added protection for this video prtr

duct receiver during a llghtning storm, or when it is
left unattended and unused iorlong periods chime,
unplug it from the wall outlet and disconnect the
antenna or cable system This will prevent damage
to the video product due to Iightnlng and power-line
surges,

POWER LINES - Ari outside antenna system should not

be located in the vicinityoloverhcad power lines or
other electric light or power circuits, or where it can
fall into such power lines or circuits When install-
inganoutside antenna system, extreme care should
be taken to keep from touching such power lines or
circuits as Contact with them might be fatal.

OVERLOADING- Do not overload wall outlets and ex-

tension cords as this can result in the risk of fire or
electric shock.

OBJECT AND LIQUID ENTRV - Never push objects of

any kind intothis vidaa praductthraugh dpeningsas
they may touch dangerous voltage points or shon-
out parts that could result in a fire or electric shock.
Never spill liquid oi any kind an the video product.

SERVICING - Do not attempt to service this video pro-

duct yourself as opening or removing covers rrlay
expose you to dangerous voltage or other hazards,
Refer all servicing to qualified service personnel.

ELECTRIC
SERVICE

FIG, A

SAFETY INSTRUCTIONS

DAMAGE REQUIRING SERVICE

Unplug this video product irorn the wall outlet and
refer servicing to qualified service personnel under
the lailawlng conditions:

a, When the power-supply cord or plug is dam-
aged,

b. II liquid has been spilledl or oblects have fallen
into the video product,

c. if the video product has been exposed to rain or
water.

d. ii the video product does not operate normally
by rollcwing the operating instructions. Adjust only
those controls that are covered by the operating in-
structions, Improper adjustment of other controls
may result in damage and will often require exten-
sive work by a qualified technician to restore the
video product to its normal operation.

e. If the video product has been dropped or the
cabinet has been damaged.

I, When the video product exhibits a distinct
change in perrormanae - this indicates a need for
servlce.

REPLAEMENT PARTS 7 When replacement parts are

required, he sure the service technician has used
replacement parts specified by the manutacturar
or having the same characteristics as the original
part. Unauthorized substitutions may result in tire,
electric shock or other hazards

SAFETY CHECK - Upon completion of any service or

repairs to this video product, ask the service techni-
cian to perform safety checks to determine that the
video product is in propar operating condition,

OUTDOOR ANTENNA GROUNDING - If an outside an»

tenna ls connected tothe antenna termlnal, be sure
the antenna system is grounded so as to provide
some protection against voltage surges and built-
up static charges.

in the USA, section 310 of the National Electrical
Code, ANSI/NFPA 70. provides information with
raspact to proper grounding of the mast and
supporting structure, grounding of the lead-in wire
to an antenna discharge unit, sixe of grounding
conductors. location of antenna-discharge unit,
connection to grounding electrodes, and require
ments tor the grounding electrode.

See Fig. A,

NEC - NATIONAL ELECTRIC CODE

ANTEN NA

LEAD IN
WIRE

ANTENNA
DISCHARGE UNIT

(NEC SECTION 810 - 20l

GROUNDING CONDUCTORS
(NEC SECTION 810 - 21)

GROUND CLAMPS

POWER SERVICE GROUNDING
ELECTRODE SYSTEM

tNEC ART 250, PART H)

2
