Pioneer cld 600 service manual

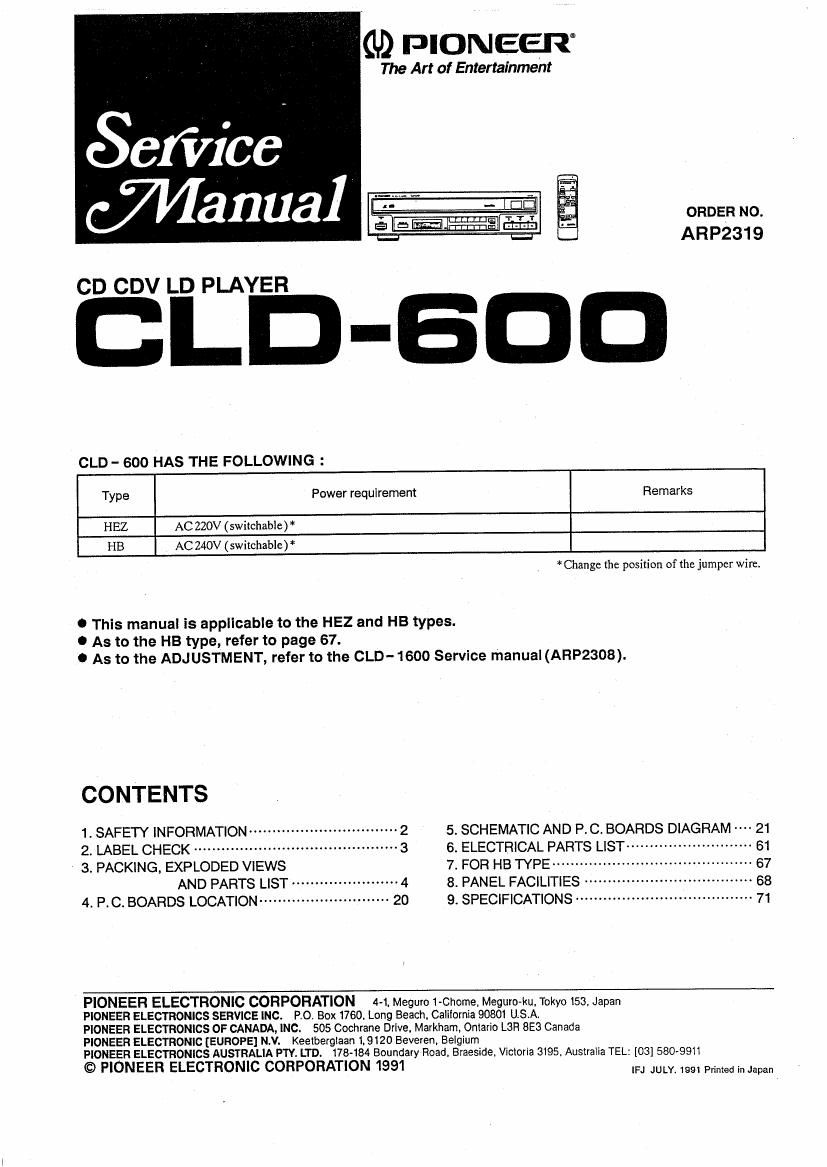

Page 1

(U) PIONEER

The Art of Entertainment

Service

anua]

ORDER NO
iEE'EJIfifl-I-iiél > '
W AR P231 9
CD CDV LD PLAYER
CLD - 600 HAS THE FOLLOWING :
Type Power requirement Remarks
HEZ AC 220V (switchable) *
HB AC 240V (switchable) *

* Change the position of the jumper wire.

0 This manual is applicable to the HEZ and HB types.
0 As to the HB type, refer to page 67.
0 As to the ADJUSTMENT, refer to the CLD- 1600 Service manual (ARP2308).

CONTENTS

1. SAFETY INFORMATION ----- - 5. SCHEMATIC AND P.C. BOARDS DIAGRAM 21

2' LABEL CHECK .......................................... 3 6. ELECTRICAL PARTS LIST ........................... 51

3. PACKING, EXPLODED VIEWS 7. FOR HB TYPE ............... .. 67
AND PARTS LIST ....................... 4 8_ PANEL FACILITIES ................. v. 68

4. RC. BOARDS LOCATION ............................ 20 9~ SPECIFICATIONS ...................................... 71

PIONEER ELECTRONIC CORPORATION 4-1. Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan

PIONEER ELECTRONICS SERVICE INC. PO. Box 1760. Long Beach. Calllomia 90801 USA.

PIONEER ELECTRONICS OF CANADA, INC. 505 Cochrane Drive. Markham, Ontario L3H 8E3 Canada

PIONEER ELECTRONIC [EUROPE] N.V. Keeibergiaan 1,9120 Beveren, Belgium

PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178484 Boundary Road. Braeside. Vicloria 3195, Australia TEL: [03] 5809911
© PIONEER ELECTRONIC CORPORATION 1991

IFJ JULY, 1991 Printed In Japan

Page 2

CLD- 600

1. SAFETY INFORMATION

VARO!

AVATTAESSA JA SUOJALUKITUS
OHITETTAESSA OLET ALTTIINA
NAKVMATTOMALLE LASERSATEILVLLE.
ALA KATSO SATEESEEN,

- (FOR EUROPEAN MODEL ONLYI

-ADVERSEL:

NAFI SIKKERHEDSAFBRVDERE ER UDE AF
FUNKTION UNDGA UDSAETTELSE FOR
STRALING.

USYNLIG LASERSTRALING VED ABNING

- VARNINGI

OSYNLIG LASERSTRALNING NAFI DENNA
DEL AR OPPNAD OCH SPARREN
AR URKDPPLAD. BETRAKTA EJ STRALEN.

LASEFI

MW 1
Lasersaxeilvn
varoimsmerkki

- WARNING!
DEVICE INCLUDES LASER DIODE WHICH
EMITS INVISIBLE INFRARED RADIATION
WHICH IS DANGEROUS T0 EYES. THERE IS
A WARNING SIGN ACCORDING TO PICTURE
1 INSIDE THE DEVICE CLOSE TO THE LASER
DIODE.

IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF HIGHER CLASS THAN 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUCTED PERSON.

* LASER DIODE CHARACTERISTICS--
MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780485 nm

LASER

Picxuve 1
Warning sugn Iar
laser radialion
