Pioneer cdj 800 mk2 service manual
This is the 4 pages manual for pioneer cdj 800 mk2 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cdj 800 mk2 service manual (Ocr-read)

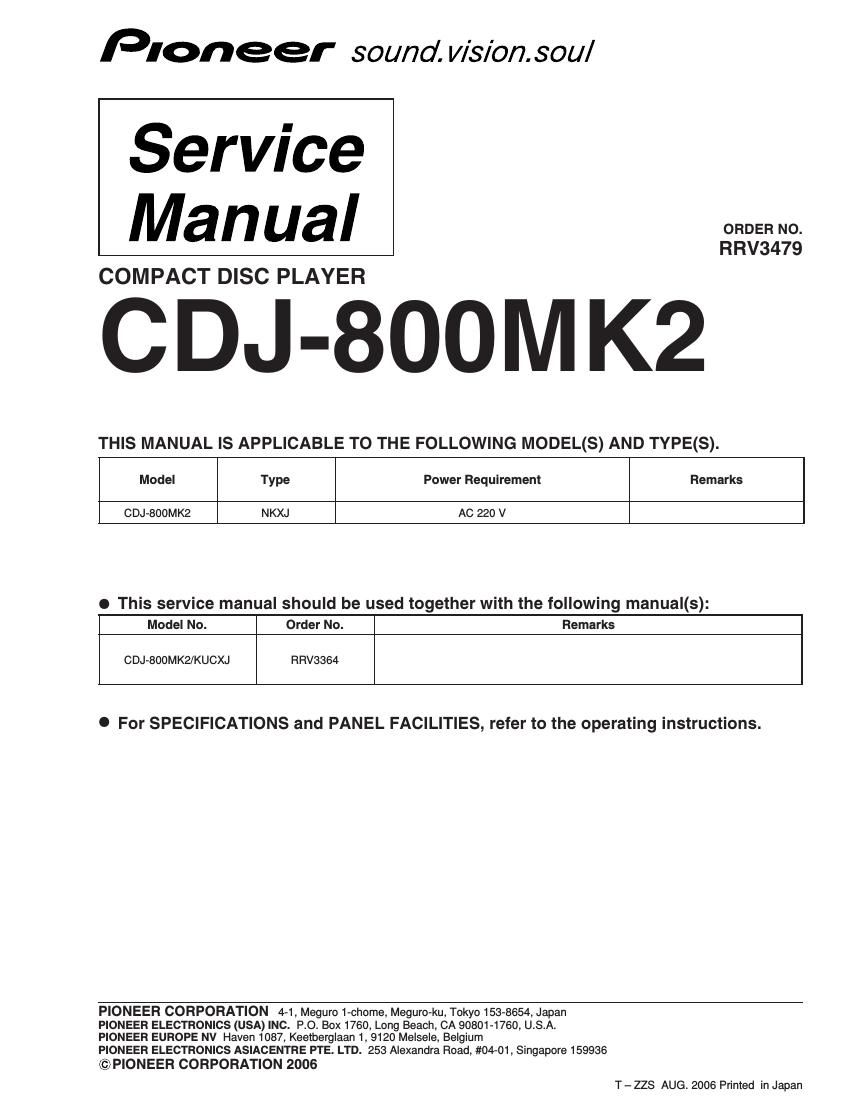

Page 1
2 1 23 4 1234 C D F A B E CDJ-800MK2 SAFETY INFORMATION This service manual is intended for qualified service technicians ; it is not meant for the casual do- it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician. Additional Laser Caution ∗ : Refer to page 86 on the service manual RRV3364. (DRW2321) IMPORTANT THIS PIONEER APPARATUS CONTAINS LASER OF CLASS 1. SERVICING OPERATION OF THE APPARATUS SHOULD BE DONE BY A SPECIALLY INSTRUCTED PERSON. LASER DIODE CHARACTERISTICS MAXIMUM OUTPUT POWER: 5 mW WAVELENGTH: 780 – 785 nm WARNING ! The AEL(accessible emission level) of the laser power output is less then CLASS 1 but the laser component is capable of emitting radiation exceeding the limit for CLASS 1. A specially instructed person should servicing operation of the apparatus. 1. Laser Interlock Mechanism The position of the switch (S1901) for detecting loading completion is detected by the system microprocessor, and the design prevents laser diode oscillation when the switch is not in LPS1 terminal side (when the mechanism is not clamped and LPS1 signal is high level.) Thus, the interlock will no longer function if the switch is deliberately set to LPS1 terminal side. ( if LPS1 signal is low level ). In the test mode∗ the interlock mechanism will not function. Laser diode oscillation will continue, if pin 41 of TC94A15FG (IC101) on the MAIN Assy is connected to GND, or else the terminals of Q101 are shorted to each other (fault condition). 2. When the cover is opened, close viewing of the objective lens with the naked eye will cause exposure to a Class 1 laser beam. Printed on the Bottom Plate Bottom Plate LABEL CHECK
Page 2
3 5 678 5 67 8 C D F A B E CDJ-800MK2 1. CONTRAST OF MISCELLANEOUS PARTS jpfy For the applying amount of lubricants or glue, follow the instructions in this manual. (In the case of no amount instructions, apply as you think it appropriate.) Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation. Screws adjacent to mark on product are used for disassembly. Reference Nos. indicate the pages and Nos. in the service manual for the base model. NOTES: -When ordering resistors, first convert resistance values into code form as shown in the following examples. Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%, and K=10%). 560 Ω→56 × 10 1 →561........................................................RD1/4PU 5 6 1 J 47k Ω→47 × 10 3 →473........................................................RD1/4PU 4 7 3 J 0.5 Ω→R50.....................................................................................RN2H R 5 0 K 1 Ω→1R0.....................................................................................RS1P 1 R 0 K Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k Ω→562 × 10 1→5621......................................................RN1/4PC 5 6 2 1 F CONTRAST TABLE Ref.Part No. No.Mark Symbol and Description CDJ-800MK2 CDJ-800MK2Remarks /KUCXJ /NKXJ PCB ASSEMBLIES NSP Mother Assy DWM2232 DWM2276 P11-1 MAIN Assy DWG1622 DWG1645 NSP DISP Assy DWM2234 DWM2289 P11-2 AC IN Assy DWR1430 DWR1429 P13-1 DFLB Assy DWG1623 DWG1646 PACKING SECTION P9-1 AC Power Cord ADG7021 XDG3036 P9-4 Operating Instructions (English) DRB1401 Not used P9-4 Operating Instructions (Korean) Not used DRB1419 P9-12 Packing Case DHG2595 DHG2662 P9-13 NSP Warranty Card ARY7043 Not used P9-14 NSP Label DRW2311 VRW1629 Recycle Label Not used DRW2307 No.1 EXTERIOR SECTION P11-10 Fuse(T1.6 A) AEK7075 Not used P11-10Fuse(T0.8 A) Not used REK1021 P11-17Power TransfomerDTT1204 DTT1203 P11-26Bottom Plate DNH2689 DNH2770 P11-29 NSPChassis DNK4518 DNK4754 P11-38Laser Caution DRW2308 DRW2321 P11-39 NSPSerial Label DRW2311 VRW1629 CDJ-800MK2/NKXJ and CDJ-800MK2/KUCXJ are constructed the same except for the following : EXPLODED VIEWS PACKING SheetNo.1 Notes :÷The numbers in the remarks column correspond to the numbers on the PACKING . ÷ For PCB ASSEMBLIES, Refer to CONTRAST OF PCB ASSEMBLIES.
