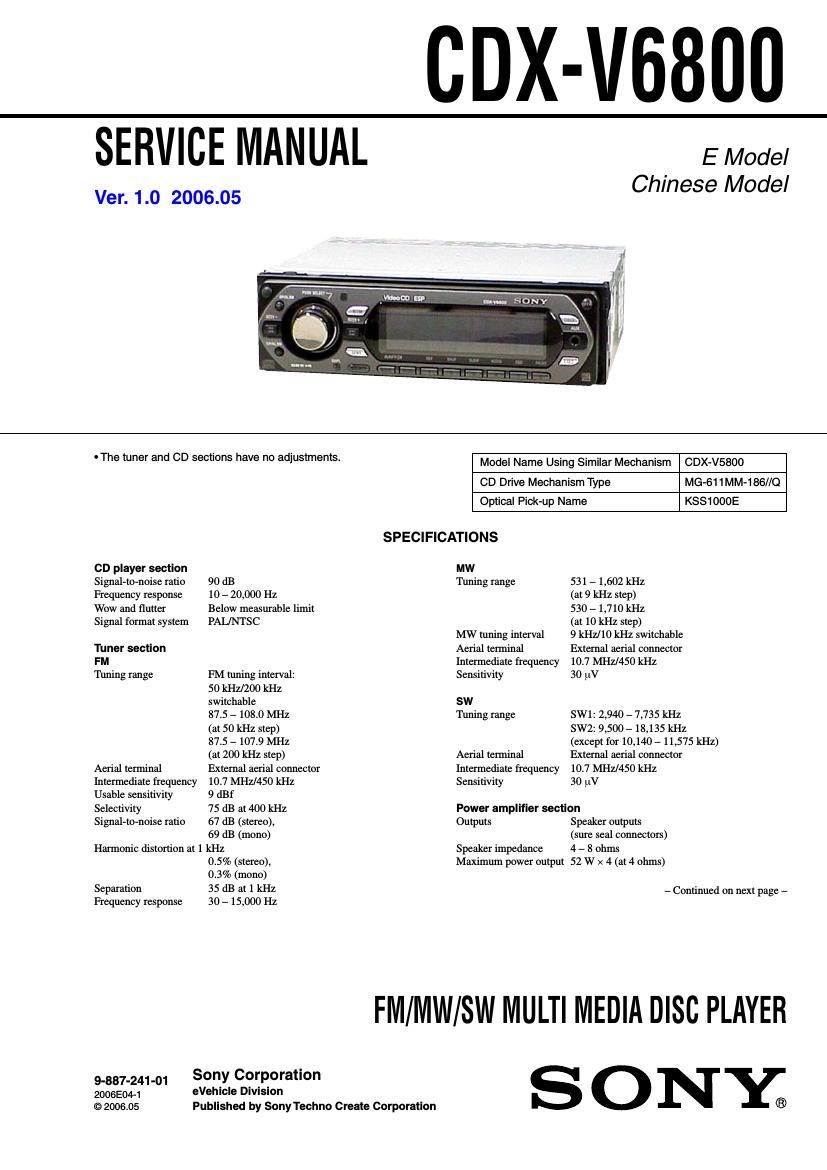

Pioneer cdxv 6800 service manual
This is the 50 pages manual for pioneer cdxv 6800 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cdxv 6800 service manual (Ocr-read)
Page 1
2 CDX-V6800 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT T he laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. T he flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. Notes on Chip Component Replacement - Never reuse a disconnected chip component. - Notice that the minus side of a tantalum capacitor may be damaged by heat. If the optical pick-up block is defective, please replace the whole optical pick-up block. Never turn the semi-fixed resistor located at the side of optical pick- up block. optical pick-up semi-fixed resistor SERVICE NOTES E model CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. TEST DISCS Please use the following test discs for the check on the voltage and the waveforms of the CD section. YDES-18 (Part No. 3-702-101-01) PATD-012 (Part No. 4-225-203-01) This label is located on the bottom of the chassis. Chinese model General Outputs Audio outputs terminal (front, sub/rear switchable) V ideo output terminal Power aerial relay control terminal Power amplifier control terminal Inputs Telephone ATT control terminal Parking break control terminal Aerial input terminal A UX input jack (stereo mini jack) T one controls Low: ±10 dB at 60 Hz (XPLOD) Mid: ±10 dB at 1 kHz (XPLOD) High: ±10 dB at 10 kHz (XPLOD) Power requirements 12 V DC car battery (negative earth) Dimensions Approx. 178 × 50 × 181 mm (w/h/d) Mounting dimensions Approx. 182 × 53 × 162 mm (w/h/d) Mass Approx. 1.2 kg Supplied accessories Parts for installation and connections (1 set) Card remote commander RM-X158 Design and specifications are subject to change without notice.
Page 2
3 CDX-V6800 -UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. -Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! -Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. -Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Notes on CD-Rs (recordable CDs)/CD-RWs (rewritable CDs) This unit can play the following discs: Type of discs Label on the disc Audio CD MP3 files -Some CD-Rs/CD-RWs (depending on the equipment used for its recording or the condition of the disc) may not play on this unit. -You cannot play a CD-R/CD-RW that is not finalized*. -You can play MP3 files recorded on CD-ROMs, CD-Rs, and CD-RWs. -A CD-R/CD-RW to which a session can be added can be played. *A process necessary for a recorded CD-R/CD-RW disc to be played on the audio CD player. Notes on Video CDs This unit can play the following discs: Type of discs Label on the disc Video CD VCD A compact disc that contains moving pictures. The picture data uses the MPEG 1 format (Video CD), worldwide standards of digital compression technology. Video CDs also contain compact audio data. Sounds outside the range of human hearing are compressed while the sounds we can hear are not compressed.
