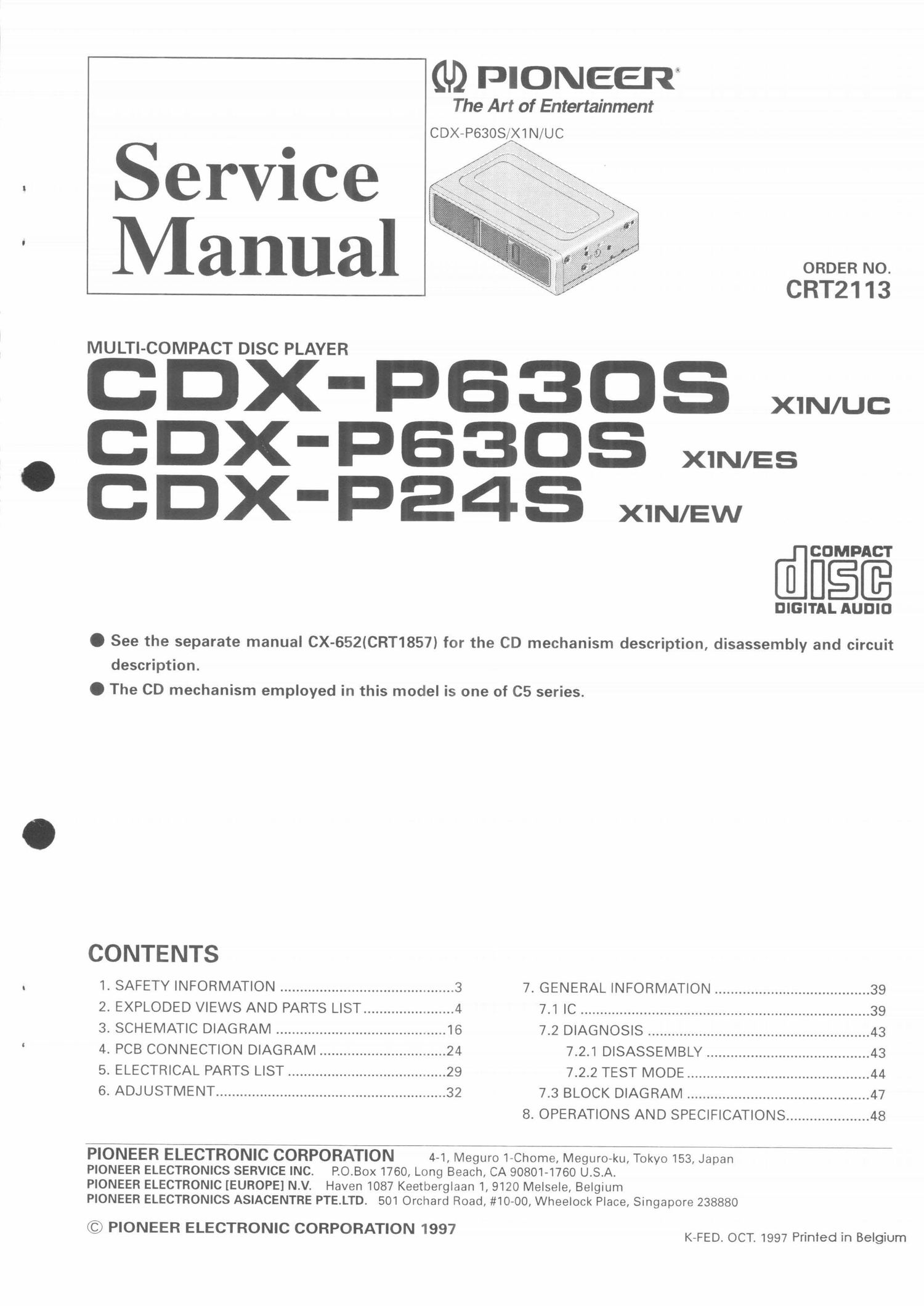

Page 1

(U) PIONEER

The Art of Entertainment

CDX- P6308/X1N/UC

Service
anual

MULTI-COMPACT DISC PLAYER

COX-30$ XIN/uc
.CDX'pB3oS XIN/ES
.CDX'p24S XIN/EW

ORDER NO.

CRT2113

410%

0 See the separate manual CX-652ICRT1857) for the CD mechanism description, disassembly and circuit
description.

0 The CD mechanism employed in this model is one of CS series.

CONTENTS
. 1. SAFETY INFORMATION ............................................ 3 7. GENERAL INFORMATION ....................................... 39
2. EXPLODED VIEWS AND PARTS LIST ....................... 4 7.1 IC ......................................................................... 39
3. SCHEMATIC DIAGRAM ........................................... 16 7.2 DIAGNOSIS ........................................................ 43
4. PCB CONNECTION DIAGRAM ................................ 24 7.2.1 DISASSEMBLY ......................................... 43
5. ELECTRICAL PARTS LIST ........................................ 29 7.2.2 TEST MODE .............................................. 44
6. ADJUSTMENT .......................................................... 32 7.3 BLOCK DIAGRAM .............................................. 47

8. OPERATIONS AND SPECIFICATIONS ..................... 48

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Wheelock Place, Singapore 238880

Page 2

cax-psaos,p24s

C CD Player Service Precautions

1.

For pickup unit(Service)(CXX1235) handling, please
refer to"Disassemb|y"(CX-652 Service Manual
CRT1857).

During replacement, handling precautions shall be
taken to prevent an electrostatic discharge(protection
by a short pin).

2. During disassembly, be sure to turn the power off
since an internal IC might be destroyed when a con-
nector is plugged or unplugged.

3. Please checking the grating after changing the pickup
unit.

4. Since these screws protects the mechanism during
transport, be sure to affix it when it is transported for
repair, etc.

Transportation of multi-CD Player

Transport screw
Attach to the original position before transporting the set.

A transport screw has been attached to the set in order to protect it
during transportation. After removing the transport screw, cover the
hole with the supplied seal. Be sure to remove the transport screw
before mounting the set. The removed transport screw should be
retained in the accessory bag for use the next time the set is trans-
ported.
