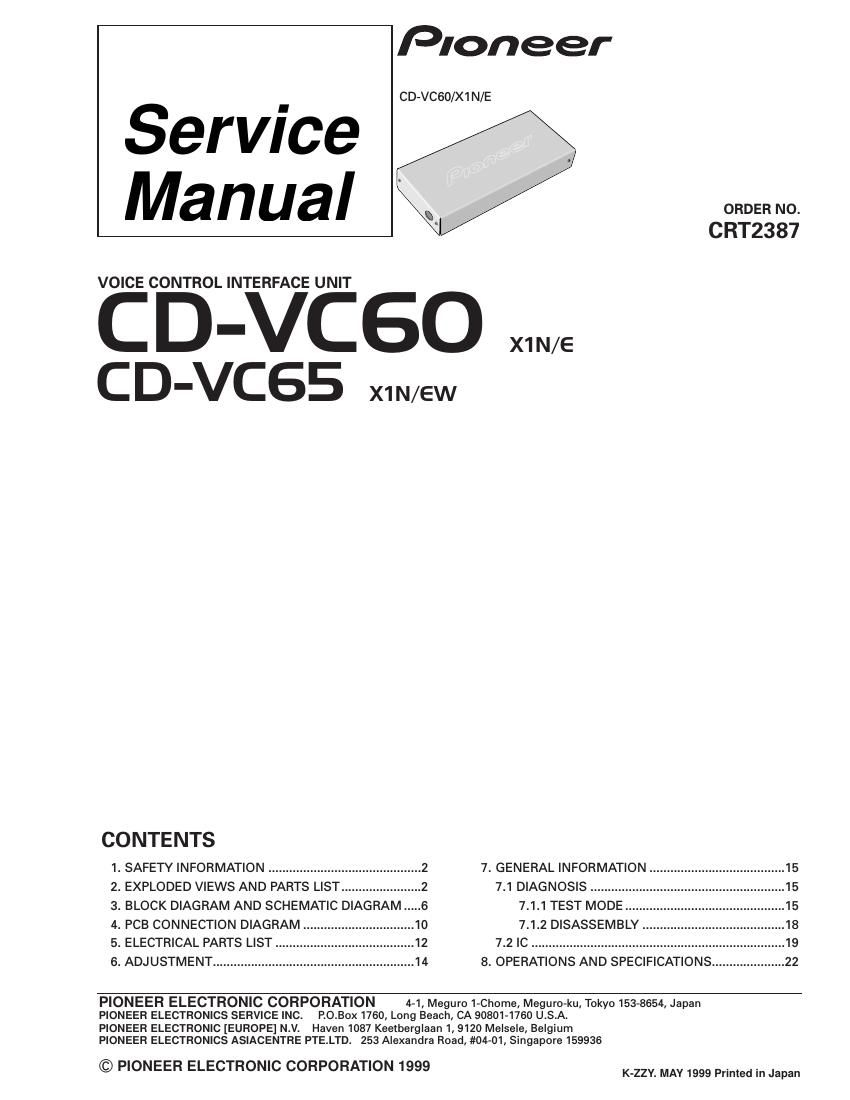

Pioneer cdvc 65 service manual
This is the 23 pages manual for pioneer cdvc 65 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cdvc 65 service manual (Ocr-read)
Page 1
2 CD-VC60,VC65 1. SAFETY INFORMATION CAUTION This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so and refer the repair to a qualified service technician. WARNING This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause cancer, birth defects or other reproductive harm. Health & Safety Code Section 25249.6 - Proposition 65 2. EXPLODED VIEWS AND PARTS LIST 2.1 PACKING 14 16 17 18 64 87 10 1112 9 5 2 1 15 3 19 20 13
Page 2
- PACKING SECTION PARTS LIST Mark No. Description Part No.Mark No. Description Part No. 3 CD-VC60,VC65 1 Carton(VC60) CHG3810 Carton(VC65) CHG3811 2 Contain Box(VC60) CHL3810 Contain Box(VC65) CHL3811 3 Owners Manual(VC60) CRD3010 Owners Manual(VC65) CRD3009 4 Accessory Assy CEA2509 5 Cord Clamper Assy CEA2072 6 Cord Clamper CNV2581 * 7 Polyethylene Bag E36-615 * 8 Polyethylene Bag CEG-238 9 Fastener(rough)(S) CNM3709 10 Fastener(soft)(S) CNM3710 11 Fastener(rough)(L) CNM3728 12 Fastener(soft)(L) CNM3729* 13 Warranty Card(VC65) CRY1087 14 Air Cushioned Bag CEG1219 15 Microphone Assy CPM1017 16 Controller Assy CXB3633 17 Cord Assy CDE5991 18 Cord Assy CDE5056 19 Cushion MEH1007 20 Clip Stand MNK1221 NOTE: - Parts marked by *are generally unavailable because they are not in our Master Spare Parts List. - Screws adjacent to Ñmark on the product are used for disassembly. - Owners Manual Model Part No. Language CD-VC60/X1N/E CRD3010 English, Spanish, German, French, Italian, Dutch CD-VC65/X1N/EW CRD3009 English, Spanish, German, French, Italian, Dutch
