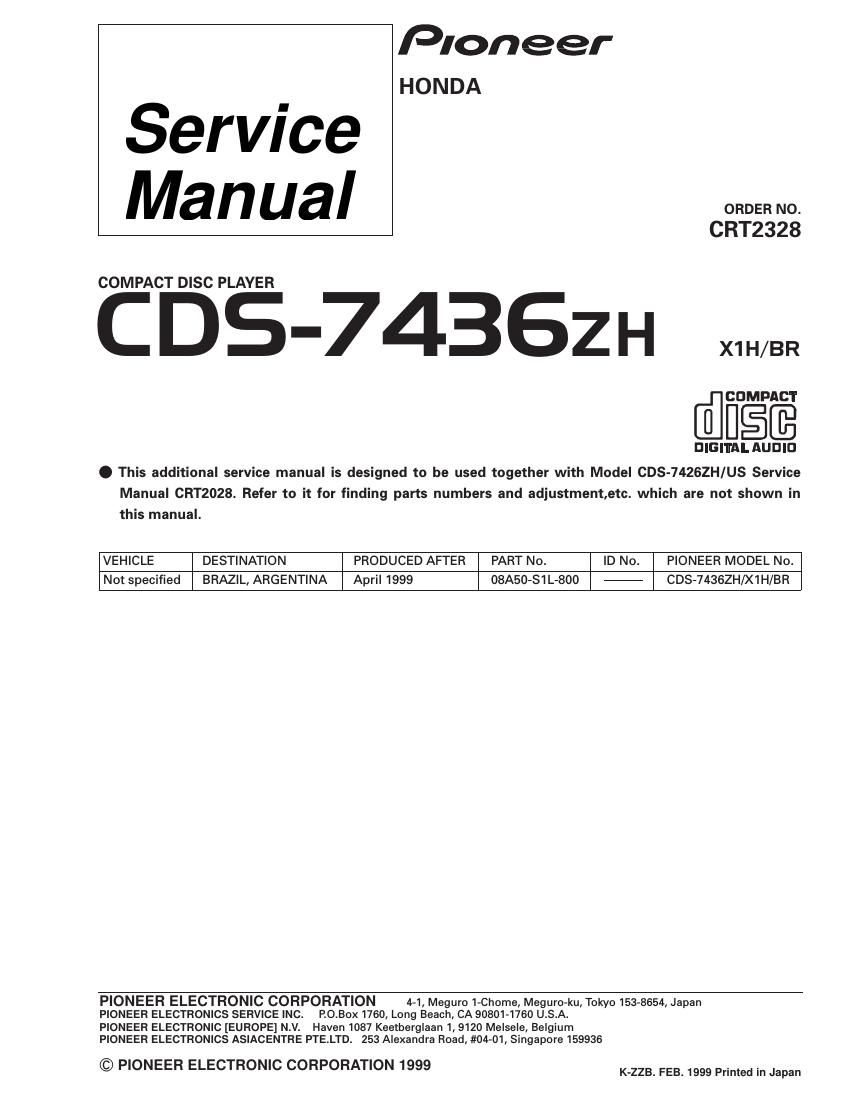

Pioneer cds 7436 service manual
This is the 2 pages manual for pioneer cds 7436 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cds 7436 service manual (Ocr-read)
Page 1
CDS-7436ZH ELECTRICAL PARTS LIST(Page 24) Control Unit Part No. Symbol and Description CDS-7426ZH/US CDS-7436ZH/X1H/BR IC801 IC NJM2068MD1 NJM2068MD EXPLODED VIEWS AND PARTS LIST PACKING (Page 2) -PACKING SECTION PARTS LIST*: Non Spare Part Part No. Mark No. Description CDS-7426ZH/US CDS-7436ZH/X1H/BR 1 Screw Assy CEA2368 Not used 2 Carton CHG3325 HHG0217 3 Contain Box CHL3325 HHL0217 4 Protector CHP1970 HHP1970 * 5 Sheet CHW1645 HHW1030 6 Owner's Manual CRB1402 HRB0042 Polyethylene Bag Not used HEG0011 Screw Not used HMF50P080FMC(x5) EXTERIOR (Page 4) -EXTERIOR SECTION PARTS LIST Part No. Mark No. Description CDS-7426ZH/US CDS-7436ZH/X1H/BR 3 Case CNB2221 HNB2221 5 Insulator CNM5351 HNM5351 9 Control Unit CWM5429 HWM5429 14 Holder CNC7173 HNC7173 15 Holder CNC7417 HNC7417 21 Cover CNM5540 HNM5540 22 Spacer CNM5578 HNM5578 23 Cover CNM5579 HNM5579 26 Chassis Unit CXB1502 HXB1502
