Extracted text from pioneer cds 1096 zt service manual (Ocr-read)

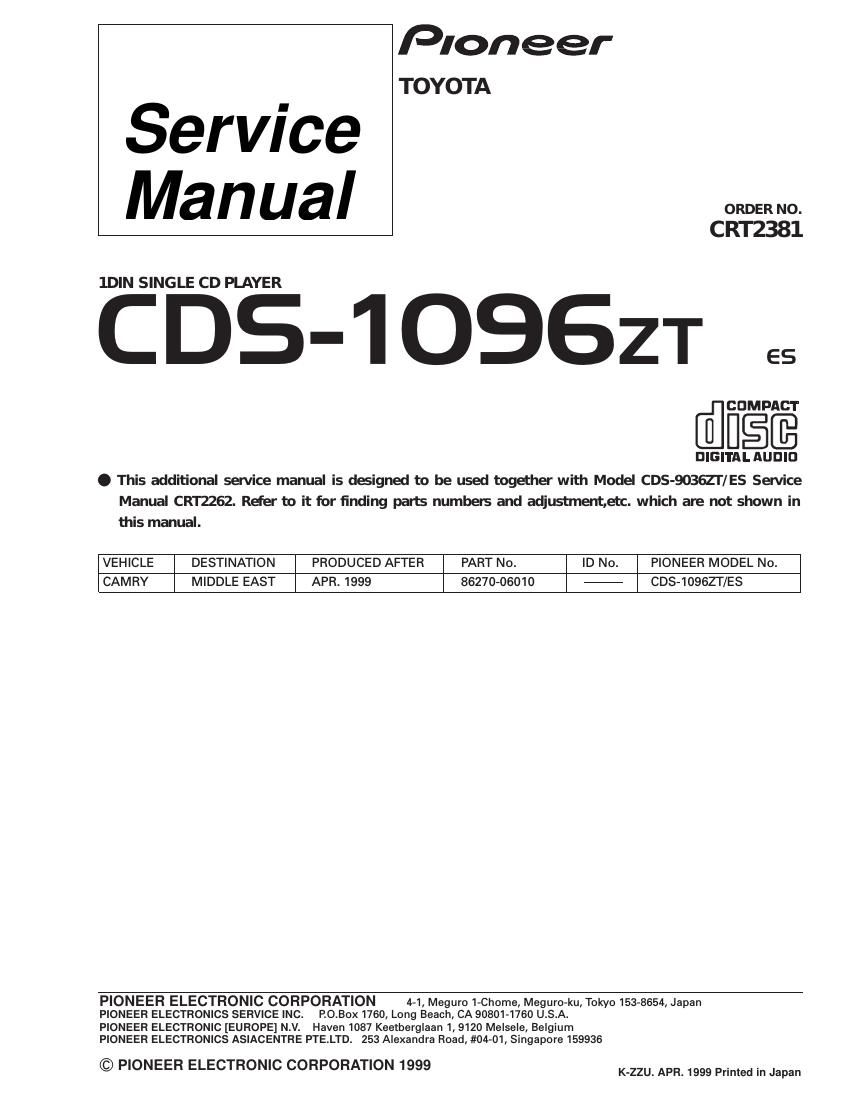

Page 1
CDS-1096ZT EXPLODED VIEWS AND PARTS LIST PACKING (Page 3) -PACKING SECTION PARTS LIST Part No. Mark No. Description CDS-9036ZT/ES CDS-1096ZT/ES 5 Owner's Manual CRD2796 ----- 8 Contain Box CHL3594 CHL3814 Connector Assy ----- CXB1856 EXTERIOR (Page 4) -EXTERIOR SECTION PARTS LIST *: Non Spare Part Part No. Mark No. Description CDS-9036ZT/ES CDS-1096ZT/ES 2 Cord Assy CDE5259 CDE5402 6 Control Unit CWM5461 CWM6586 ELECTRICAL PARTS LIST(Page 26) Control Unit Part No. Symbol and Description CDS-9036ZT/ES CDS-1096ZT/ES IC601 IC PD4850A PD4809B IL701-703 Lamp 8V 60mA CEL1523 CEL1623
Page 2
PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE INC.P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A. PIONEER EUROPE N.V.Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE.LTD.253 Alexandra Road, #04-01, Singapore 159936 C PIONEER CORPORATION 2001 K-ZZS. MAR. 2001 Printed in Japan ORDER NO. CRT2676 1DIN SINGLE CD PLAYER CDS-1096 ZT X1N/ES Service Manual TOYOTA -This service manual should be used together with the manual(s) listed below. For the parts numbers, adjustments, etc. which are not shown in this manual, refer to the following manual(s). Model No. Order No. Mech. Module Remarks CDS-9036ZT/ES CRT2262 CX-597 CRT1829 S7 CD Mech. Module:Circuit Description, Mech.Description, Disassembly VEHICLE DESTINATION PRODUCED AFTER TOYOTA PART No. ID No. PIONEER MODEL No. CAMRY MIDDLE EAST August 2001 86270-06010 CDS-1096ZT/X1N/ES EXPLODED VIEWS AND PARTS LIST PACKING(Page 3) -PACKING SECTION PARTS LIST * : Non spare part Part No. Mark No.Symbol and Description CDS-9036ZT/ES CDS-1096ZT/X1N/ES 1 Screw Assy CEA1854 Not used * 4 Sheet CHW1645 CHW1892 5 Owners Manual CRD2796 Not used 6 Polyethylene Bag * E36-609 CEG1297 7 Carton CHA2424 CHG4349 8 Contain Box CHL3594 CHL4349 * 9 Polyethylene Bag CEG-127 Not used 10 Screw HMF50P080FMC Not used
