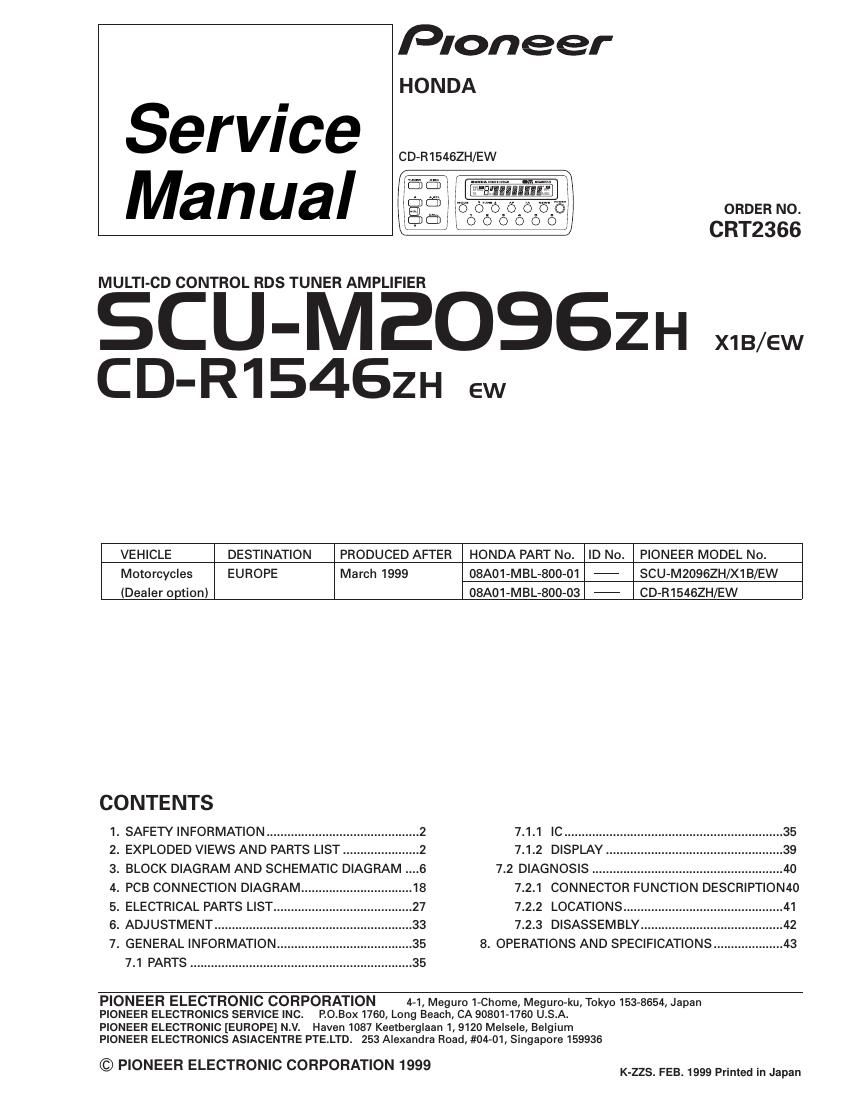

Page 1
Pioneer
HONDA
Service
Manual
MULTI-CD CONTROL RDS TUNER AMPLIFIER
SCU-MEOSSZH MW
CD-R15462H .w
CD-R15462H/EW
ORDER NO.
CRT2366
VEHICLE DESTINATION PRODUCED AFTER HONDA PART No. ID No. PIONEER MODEL No.
Motorcycles EUROPE March 1999 08A01-MBL-800»01 7 SCU-M2096ZH/X1B/EW
(Dealer option) O8A01-MBL-800-03 7 CD»R1546ZH/EW
CONTENTS
1. SAFETYINFORMATION... ..2 7.1.1 IC...
2. EXPLODED VIEWS AND PARTS LIST. ..2 7.1.2 DISPLAY.
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ....6 7.2 DIAGNOSIS ....................................................... 40
4. PCB CONNECTION DIAGRAM ................................ 18 7.2.1 CONNECTOR FUNCTION DESCRIPTION40
5. ELECTRICAL PARTS LIST ........................................ 27 7.2.2 LOCATIONS .............................................. 41
6. ADJUSTMENT .................. 7.2.3 DISASSEMBLY .....................
7. GENERAL INFORMATION 8. OPERATIONS AND SPECIFICATIONS
7.1 PARTS ................................................................ 35
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, MegurO-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. ROBOX 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #0401, Singapore 159936
© PIONEER ELECTRONIC CORPORATION 1999 K_ZZS_FEB.1999 Primed in Japan
Page 2
SCU-MBOSGZH.CD-R154GZH
1. SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.
Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair
complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.
If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so
and refer the repair to a qualified service technician.
2. EXPLODED VIEWS AND PARTS LIST
2.1 EXTERIORICD-R15462HI
