Pioneer cdr 151 service manual

This is the 14 pages manual for pioneer cdr 151 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 14

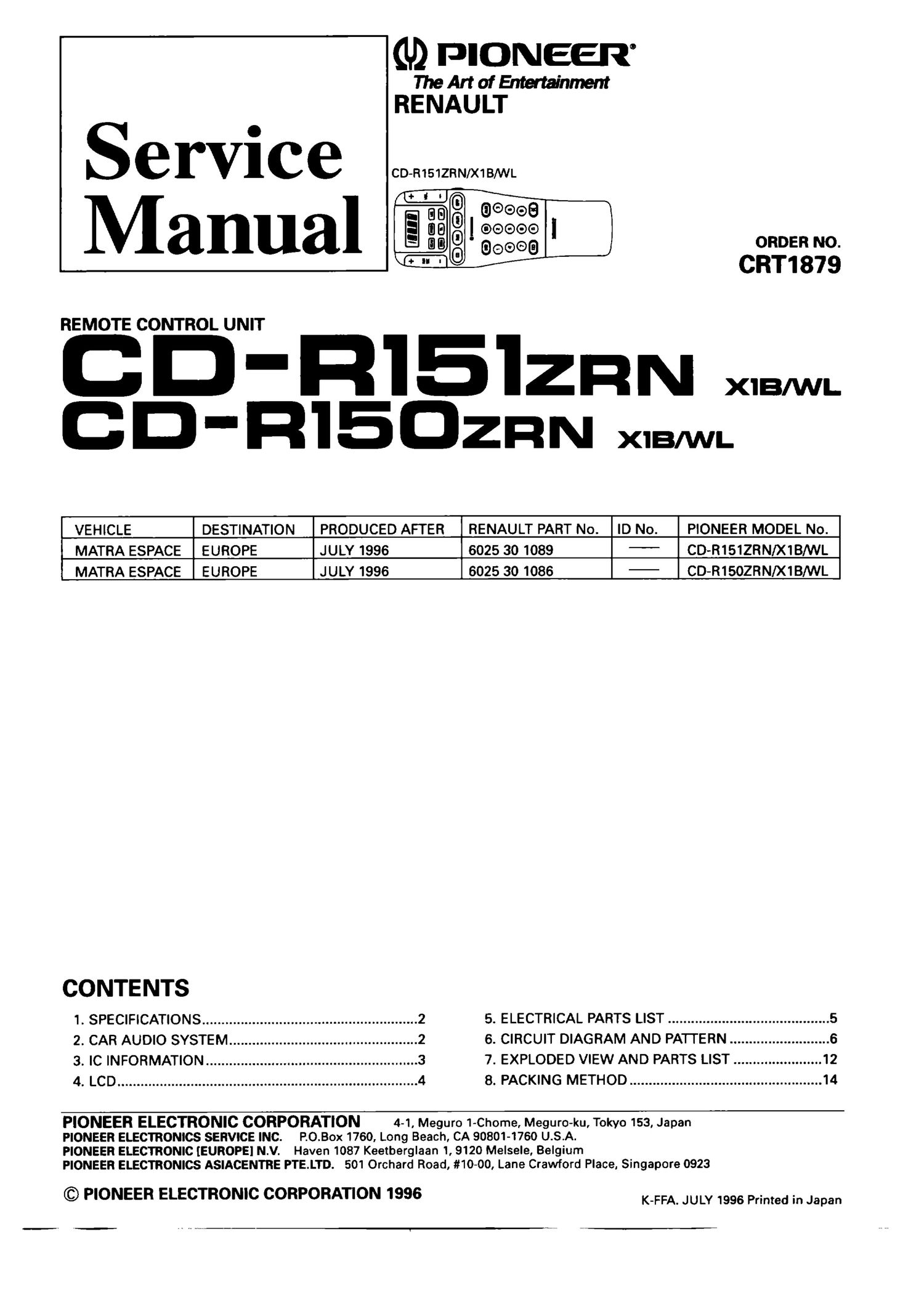

Extracted text from pioneer cdr 151 service manual (Ocr-read)

Page 1

GD PIONEER

The Art of Entertainment
RENAULT

Service
anual

REMOTE CONTROL UNIT

CD-R'IE'IZRN mm.
c-n-ISDZRN X'IB/WL

VEHICLE DESTINATION PRODUCED AFTER RENAULT PART No. I!!! PIONEER MODEL No.

CD-R151ZRN/X1B/WL

ORDER NO.

CRT1879

MATRA ESPACE EUROPE JULY 1996 6025 30 1089 E CD-R151ZRN/X1B/WL

MATRA ES_PACE EUROPE JULY 1996 6025 30 1086 CD-R_15_0_2RN/X1BNVL
CONTENTS

1. SPECIFICATIONS ........................................................ 2 5. ELECTRICAL PARTS LIST .......................................... 6

2. CAR AUDIO SYSTEM ................................................. 2 6. CIRCUIT DIAGRAM AND PATTERN .......................... 6

3. IC INFORMATION ....................................................... 3 7. EXPLODED VIEW AND PARTS LIST ....................... 12

4. LCD .............................................................................. 4 9. PACKING METHOD .................................................. 14

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, MegurO-ku, Tokyo 153, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Lane Crawford Place, Singapore 0923

-- - 4- ._n__
