Pioneer cdla 100 service manual

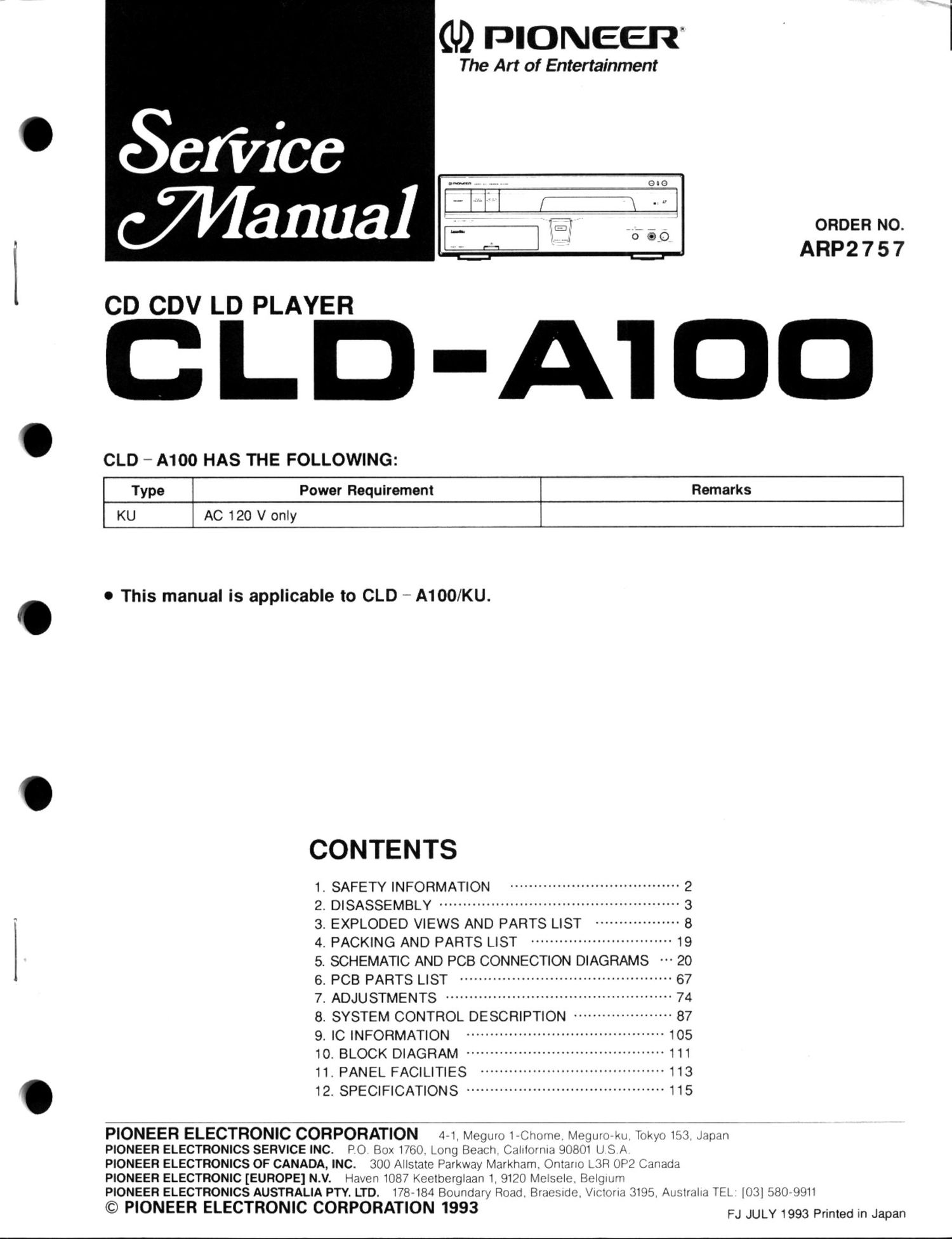

Page 1

(ID PIONEER"

The Art of Entertainment

CD CDV LD PLAYER

CLD * A100 HAS THE FOLLOWING:

ORDER NO.
ARP2 7 5 7

CL-Ci-A'I

Type Power Requirement Remarks
KU AC 120 V only
0 This manual is applicable to CLD - A1 OO/KU.

CONTENTS

1' SAFETY INFORMATION .................................... 2
2' DISASSEMBLY ................................................... 3
3. EXPLODED VIEWS AND PARTS LIST ------------------ 8
4' PACKING AND PARTS LIST .............................. 19
5. SCHEMATIC AND PCB CONNECTION DIAGRAMS 20
6_ PCB PARTS LIST ............................................. 67
7. ADJUSTMENTS ................................................ 74
8. SYSTEM CONTROL DESCRIPTION --------------------- 87
9. IC INFORMATION .......................................... 105
10 BLOCK DIAGRAM .......................................... 111
11 PANEL FACILITIES ....................................... 113
12 SPECIFICATIONS .......................................... 115

pIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chume, "u'IBgUIUkU, TCIk'y'U 153.
PIONEER ELECTRONICS SERVICE INC. PO Box HBO. long Beach, Cal-Toma 90801 U SA

PIONEER ELECTRONICS OF CANADA, INC. 300 Allstate Parkway Markham. Ontarlu L3H UFZ Canada
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keelbcrglaan 1, 9190 I'JIOlSQIE', Helglhll"

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

© PIONEER ELECTRONIC CORPORATION 1993

Japan

17'8-184 Boundary Road, Braesnde, Vl1£31<2rrléi3195 Ausslrdlld TEL [03] 580-9911

FJ JULY 1993 Printed in Japan
