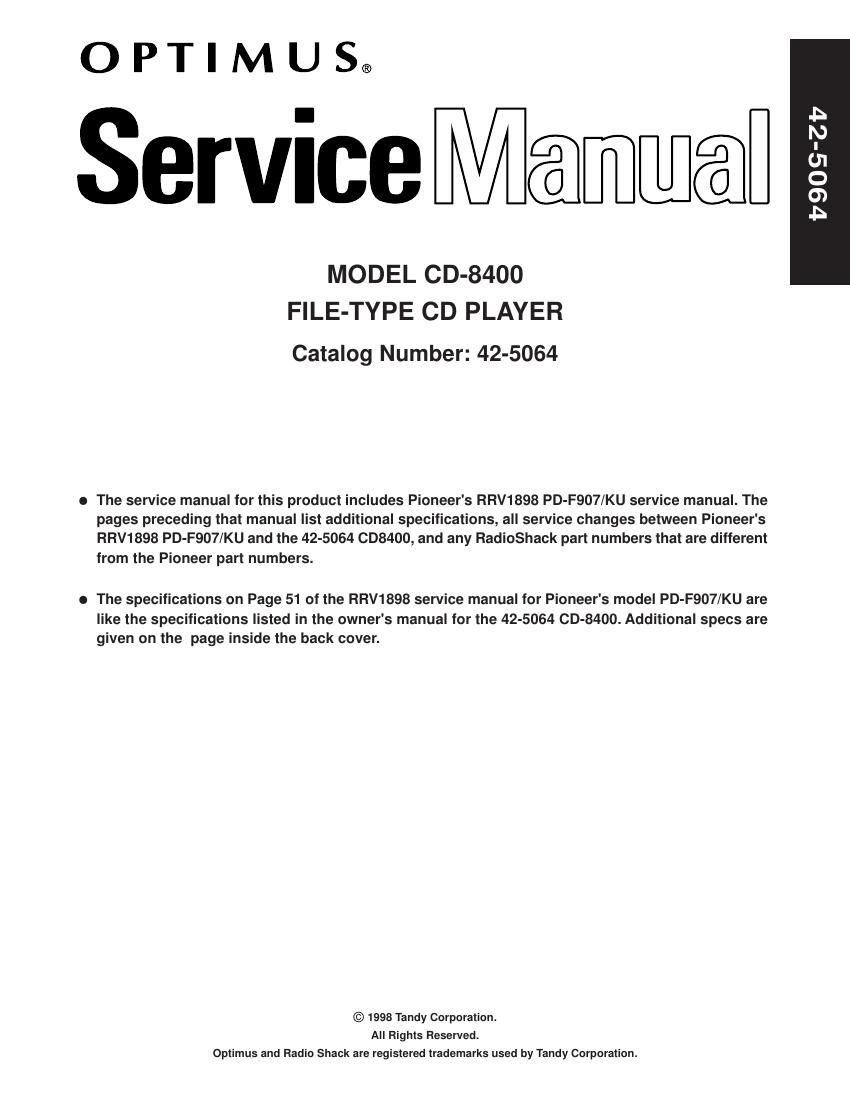

Pioneer cd 8400 service manual
This is the 56 pages manual for pioneer cd 8400 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from pioneer cd 8400 service manual (Ocr-read)
Page 1
2 PART NUMBER DIFFERENCES BETWEEN 42-5064 CD-8400 AND PD-F907/KU 42-5064 CD-8400 PACKING P3 - 3 Remote Control Unit (CU-PD080) PWW1132 Not used P3 - 3 Remote Control Unit Not used PYY1262 P3 - 4 Battery Cover AZA7204 PZN1105 P3 - 5 NSP Warranty Card ARY1044 Not used P3 - 6 Operating Instructions (English) PRB1263 PRB1272 P3 - 11 Packing Case PHG2285 PHG2325 P3 - 13 NSP Battery (R6P, AA) VEM-013 Not used EXTERIOR SECTION P6 - 18 Rear Base PNA2389 PNA2431 P6 - 44 Control Button PAC1822 PAC1899 P6 - 45 Power Button PAC1833 PAC1900 P6 - 46 Name Plate VAM1073 AAM7001 P6 - 47 Display Window PAM1725 PAM1765 P6 - 52 Hood PNW2732 PNW2824 P6 - 50 Operation Panel PNW2773 PNW2825 Ref.No. Mark Symbol and Description 42-5064 CD-8400 and PD-F907/KU are constructed the same except for the following: NOTES :ÖParts marked by Ò NSP Ó are generally unavailable . Ö indicates safety critical components. Be sure to replace only with specified parts. ÖRef. No. : Numbers following P and hyphen(Ð) indicate the page(s) and location number(s) in the RRV1898 service manual, respectively. Remarks Parts No. PD-907/KU
Page 2
ORDER NO. Service Manual PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER ELECTRONIC (EUROPE) N.V . Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923 C CC C C PIONEER ELECTRONIC CORPORATION 1997 FILE-TYPE CD PLAYER RRV1898 TÐZZY DEC. 1997 Printed in Japan PD-F957 CONTENTS 1. SAFETY INFORMATION .................................... 2 2. EXPLODED VIEWS AND PARTS LIST ............. 3 3. SCHEMATIC DIAGRAM ................................... 11 4. PCB CONNECTION DIAGRAM ....................... 19 5. PCB PARTS LIST ............................................. 24 6. ADJUSTMENT .................................................. 28 7.GENERAL INFORMATION ............................... 36 7.1 PARTS ........................................................ 36 7.1.1 IC .......................................................... 36 7.1.2 DISPLAY ............................................... 377.2 DIAGNOSIS ................................................ 39 7.2.1 ERROR CORD DISPLAY ................. 39 7.2.2 ERROR HISTORY AND DISPLAY ... 39 7.2.3 ERROR HISTORY DISPLAY ............ 40 7.2.4 DISASSEMBLY ................................. 41 7.3 BLOCK DIAGRAM ...................................... 49 8. PANEL FACILITIES AND SPECIFICATIONS ................................................................... 50 PD-F907 KUÐO AC120V KCÐO AC120V KU/CA OÐAC120V Type THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S). PD-F957 Model Power Requirement Remarks PD-F907 DFILE–TYPE COMPACT DISC PLAYERPD-F905ë SINGLE LOADER ACSESSPLAY UNLOAD BEST PREVIOUS DISC TITLE INPUT PROGRAM TRACK MIN SEC DISC TITLE DISPLAY HI-LITE CLEAR MODE FILE –TYME CD MECHANISM OPEN/ CLOSE
