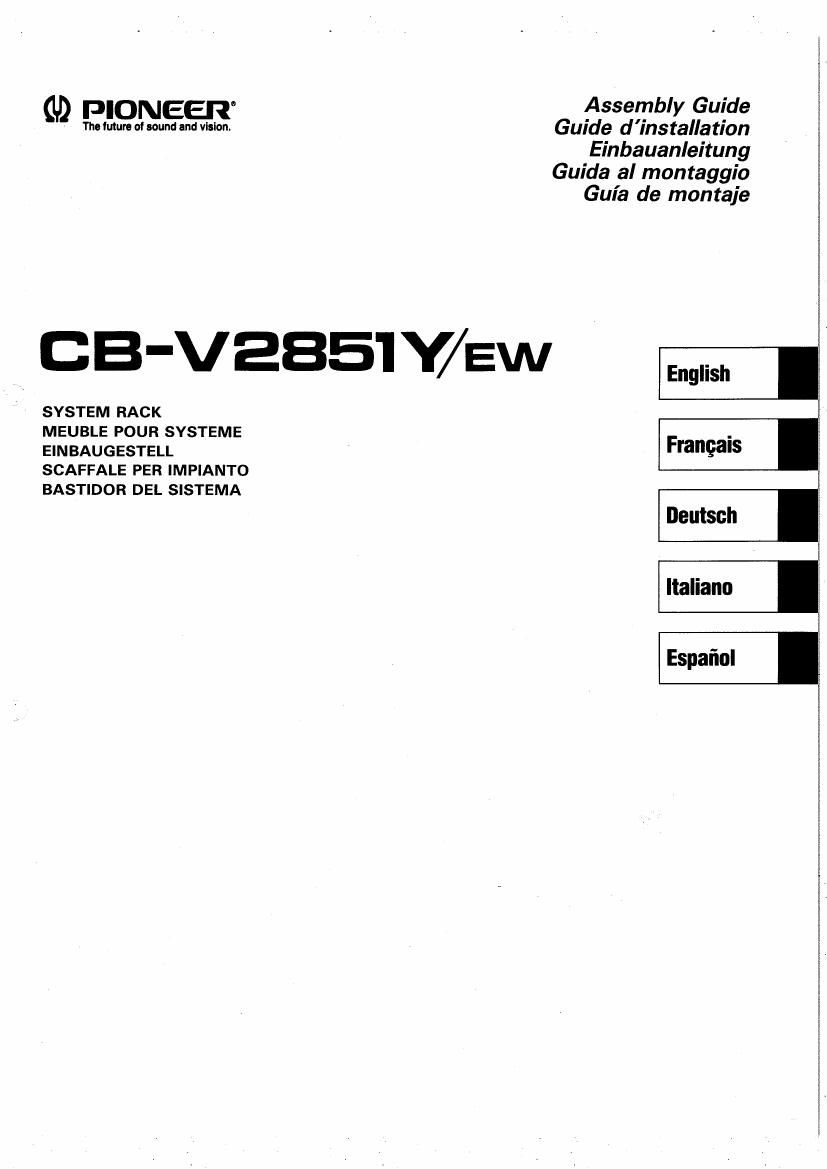

Pioneer cb v2851y owners manual

Page 2

Thank you for purchasing this Pioneer product. This rack has
been designed for exclusive use with Pioneer LaserVision
"karaoke" systems.

Read this Assembly Guide well and install the rack as directed.
After reading the guide, keep it in a safe place for later use in the
event of reinstallation.

Example:

Stereo mixing

amplifier SA-V210
LaserVision
player LD~V200

III Door installation

2

En

Push the pin.

Press down to E with a small screw driver or a tweezers. (The
pin must be completely pushed in.)

* When removing the door, press the pin down to M with a small
screw driver or a tweezers.
For the final removal step pull the upper part of the door
towards you.

E To REMOVE THE FRONT COVER

1. Remove screws
2. Remove front cover

III ABOUT THE MICROPHONE JACKS

To use these jacks as microphone and key control terminals:

Connect the pin-plug cord, key-control cord, and ground terminal

cord (Found on the rear panel of the base plate) to the

microphone terminal, key-control terminal, and ground terminal

of the stereo mixing amplifier which is to be housed in the rack.

1. Remove the cords bundled at the back of the rack's base
plate.

2. Connect the pin plugs to the microphone terminals of the
stereo mixing amplifier to be set in the rack, taking care to
match the terminal numbers correctly.

3. Insert the mini plugs into the mixing amplifier's keycontrol
terminals.

4. Connect the ground cord jack to the mixing amplifiers ground
terminal.

5. For details regarding connections, consult the operating
instructions for the stereo mixing amplifier you plan to use.

/\
